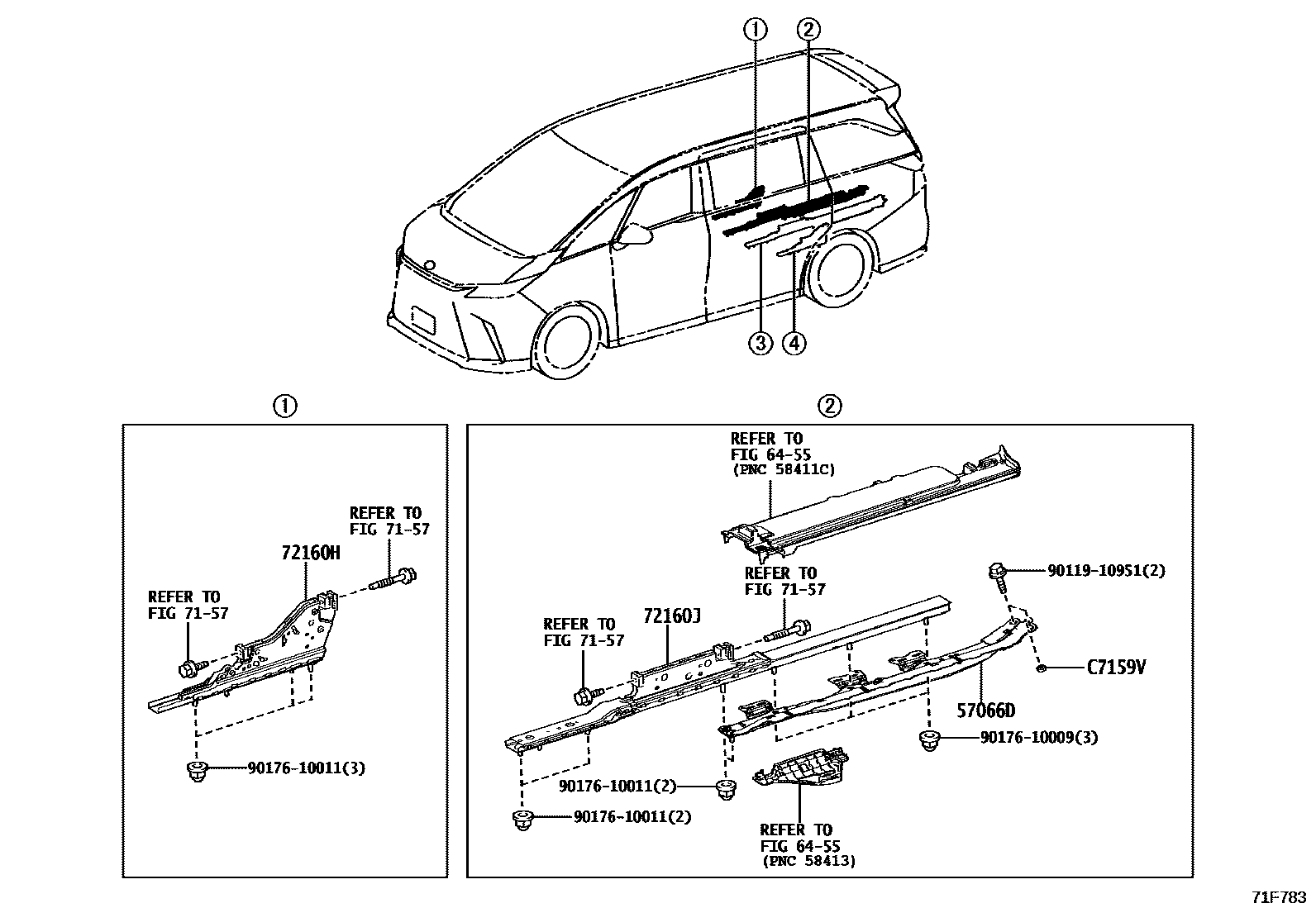

SEAT RAIL

0001 1RH 0002 1LH 0003 1RH 0004 1LH

57066DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57066-V2010iAAWH1#,TAWH15202311

6455DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-55

7157REAR SEAT & SEAT TRACK

→ Go to FIG 71-57

72160HTRACK ASSY, REAR SEAT, OUTER RH

main72160-V2410iAAWH1#,TAWH15..EXEC202311

main72160-V2640supersedes 72160-V2630iAAWH1#,TAWH15..L202311

72160JTRACK ASSY, REAR RH SEAT, INNER NO.1

main72160-V2570iAAWH1#,TAWH15..EXEC202311

C7159VCUSHION, WELCAB SEAT LEG STOPPER

mainC715928010×2iAAWH1#,TAWH15202311

9011910951

main90119-10951

9017610009

main90176-10009

9017610011

main90176-10011

9 parts on this diagram · 4 diagrams in section
