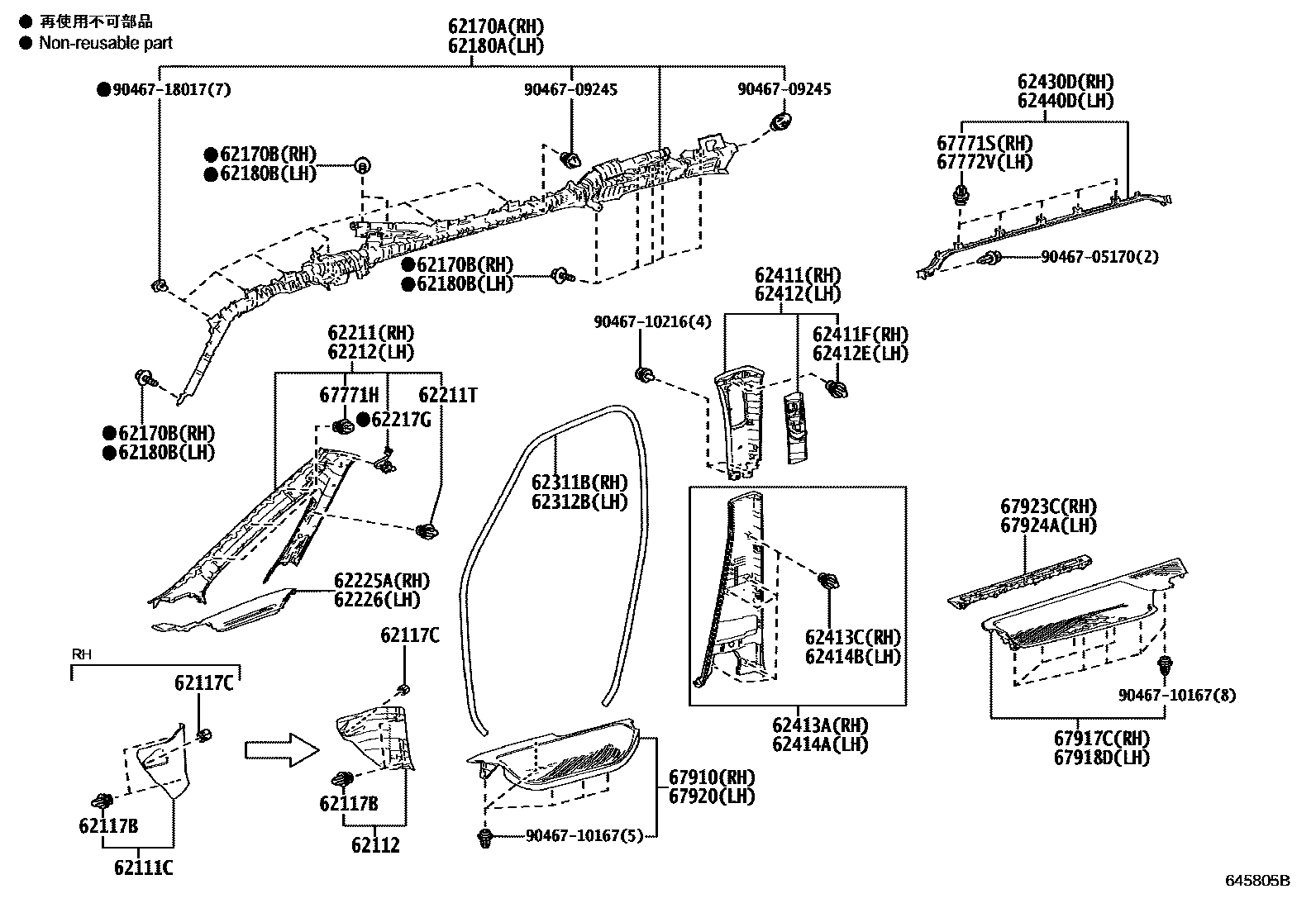

INSIDE TRIM BOARD

0001 1���� & ��� 0002 1���� & ��� 0003 1���� RH 0004 1���� LH 0005 1���� RH 0006 1���� LH

62111CBOARD, COWL SIDE TRIM, RH

main62111-V2010-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

62112BOARD, COWL SIDE TRIM, LH

main62112-V2010-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161iAAWH1#,TAWH15202311

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iAAWH1#,TAWH15202311

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-V2030iAAWH1#,TAWH15..L202311

main62170-V2040iAAWH1#,TAWH15..EXEC202311

62170BBOLT, W/WASHER

main90119-06869iAAWH1#,TAWH15..L202311

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-V2030iAAWH1#,TAWH15..L202311

main62180-V2040iAAWH1#,TAWH15..EXEC202311

62180BBOLT, W/WASHER

main90119-06869iAAWH1#,TAWH15..L202311

62211GARNISH, FRONT PILLAR, RH

main62210-V2010-A4iAAWH1#,TAWH15202311

FROMAGE/BLACK,TRIM0#

main62210-V2010-C4iAAWH1#,TAWH15202311

BLACK/BLACK,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10162iAAWH1#,TAWH15202311

62212GARNISH, FRONT PILLAR, LH

main62220-V2010-A4iAAWH1#,TAWH15202311

FROMAGE/BLACK,TRIM0#

main62220-V2010-C4iAAWH1#,TAWH15202311

BLACK/BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-V2010iAAWH1#,TAWH15202311

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-V2010-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-V2010-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-V2020iAAWH1#,TAWH15202311

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-V2020iAAWH1#,TAWH15202311

62411GARNISH, CENTER PILLAR, RH

main62410-V2030-A3iAAWH1#,TAWH15..L202311

ECRU,TRIM0#

main62410-V2030-B0iAAWH1#,TAWH15..L202311

CHARCOAL,TRIM2#

main62410-V2040-A4iAAWH1#,TAWH15..EXEC202311

FROMAGE,TRIM0#

main62410-V2040-C3iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM2#

62411FCLIP, CENTER PILLAR GARNISH, RH

main90467-10161iAAWH1#,TAWH15202311

62412GARNISH, CENTER PILLAR, LH

main62420-V2030-A3iAAWH1#,TAWH15..L202311

ECRU,TRIM0#

main62420-V2030-B0iAAWH1#,TAWH15..L202311

CHARCOAL,TRIM2#

main62420-V2040-A4iAAWH1#,TAWH15..EXEC202311

FROMAGE,TRIM0#

main62420-V2040-C3iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM2#

62412ECLIP, CENTER PILLAR GARNISH, LH

main90467-10161iAAWH1#,TAWH15202311

62413AGARNISH, CENTER PILLAR, LOWER RH

main62401-V2020-C2iAAWH1#,TAWH15..L202311-202508

BLACK/FROMAGE,TRIM0#

main62401-V2020-C3iAAWH1#,TAWH15..L202311-202508

BLACK/BLACK,TRIM2#

main62401-V2030-A3iAAWH1#,TAWH15..EXEC202311

FROMAGE,TRIM0#

main62401-V2030-C3iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAAWH1#,TAWH15202311

62414AGARNISH, CENTER PILLAR, LOWER LH

main62402-V2020-C2iAAWH1#,TAWH15..L202311-202508

BLACK/FROMAGE,TRIM0#

main62402-V2020-C3iAAWH1#,TAWH15..L202311-202508

BLACK/BLACK,TRIM2#

main62402-V2030-A3iAAWH1#,TAWH15..EXEC202311

FROMAGE,TRIM0#

main62402-V2030-C3iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM2#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAAWH1#,TAWH15202311

62430DGARNISH ASSY, ROOF SIDE RAIL, FRONT RH

main62430-V2020-A0iAAWH1#,TAWH15..L202311

FROMAGE,TRIM0#

main62430-V2020-C0iAAWH1#,TAWH15..L202311

BLACK,TRIM2#

main62430-V2030-A1iAAWH1#,TAWH15..EXEC202311

FROMAGE,TRIM0#

main62430-V2030-C1iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM2#

62440DGARNISH ASSY, ROOF SIDE RAIL, FRONT LH

main62440-V2020-A0iAAWH1#,TAWH15..L202311

FROMAGE,TRIM0#

main62440-V2020-C0iAAWH1#,TAWH15..L202311

BLACK,TRIM2#

main62440-V2030-A1iAAWH1#,TAWH15..EXEC202311

FROMAGE,TRIM0#

main62440-V2030-C1iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM2#

67771HRETAINER, DOOR TRIM

main67771-12060iAAWH1#,TAWH15202311

67771SRETAINER, ROOF SIDE RAIL GARNISH, FRONT RH

main67771-12060iAAWH1#,TAWH15202311

67772VRETAINER, ROOF SIDE RAIL GARNISH, FRONT LH

main67771-12060iAAWH1#,TAWH15202311

67910PLATE ASSY, DOOR SCUFF, RH

main67910-V2130-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

67917CPLATE, REAR DOOR SCUFF, RH

main67930-V2090-C0iAAWH1#,TAWH15..L202311

BLACK,TRIM0#,2#

main67930-V2100-C0iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM0#,2#

67918DPLATE, REAR DOOR SCUFF, LH

main67940-V2090-C0iAAWH1#,TAWH15..L202311

BLACK,TRIM0#,2#

main67940-V2100-C0iAAWH1#,TAWH15..EXEC202311

BLACK,TRIM0#,2#

67920PLATE ASSY, DOOR SCUFF, LH

main67920-V2130-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67924-V2011iAAWH1#,TAWH15202311

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-V2021iAAWH1#,TAWH15202311

9046705170

main90467-05170

9046709245

main90467-09245

9046710167

main90467-10167

9046710216

main90467-10216

9046718017

main90467-18017

40 parts on this diagram · 6 diagrams in section
