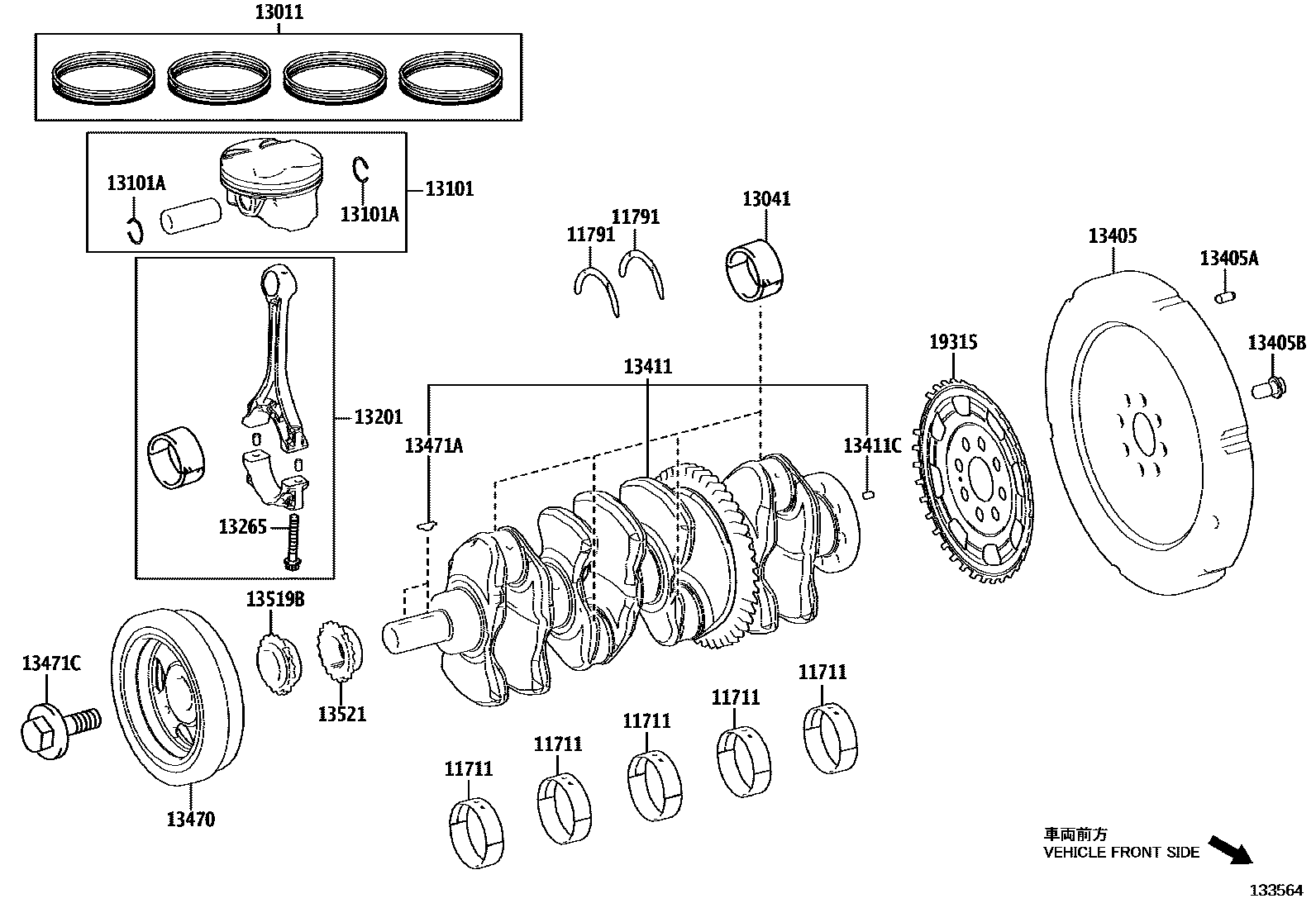

CRANKSHAFT & PISTON

0001 1 0002 1

11711BEARING, CRANKSHAFT

main11701-25010-01×5iA25..AAWH1#202311

main11701-25010-02×5iA25..AAWH1#202311

main11701-25010-03×5iA25..AAWH1#202311

main11701-25010-04×5iA25..AAWH1#202311

main11701-25010-05×5iA25..AAWH1#202311

main11701-25050-01×4iT24..TAWH15202311

main11701-25050-02×4iT24..TAWH15202311

main11701-25050-03×4iT24..TAWH15202311

main11701-25050-04×4iT24..TAWH15202311

main11701-25060-01iT24..TAWH15202311

main11701-25060-02iT24..TAWH15202311

main11701-25060-03iT24..TAWH15202311

main11701-25060-04iT24..TAWH15202311

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25040×2iA25..AAWH1#; T24..TAWH15202311

13011RING SET, PISTON

main13011-15140iT24..TAWH15202311

main13011-25080iA25..AAWH1#202311

13041BEARING, CONNECTING ROD

main13041-25020-01×4iA25..AAWH1#202311

main13041-25020-02×4iA25..AAWH1#202311

main13041-25020-03×4iA25..AAWH1#202311

main13041-25040-01×4iT24..TAWH15202311

main13041-25040-02×4iT24..TAWH15202311

main13041-25040-03×4iT24..TAWH15202311

13101PISTON SUB-ASSY, W/PIN

main13101-25040×4iA25..AAWH1#202311

main13101-25050×4iT24..TAWH15202311

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8iA25..AAWH1#202311

main90520-25090×8iT24..TAWH15202311

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4iA25..AAWH1#202311

main13201-29815-B0×4iA25..AAWH1#202311

main13201-29815-C0×4iA25..AAWH1#202311

main13201-29855-A0×4iT24..TAWH15202311

main13201-29855-B0×4iT24..TAWH15202311

main13201-29855-C0×4iT24..TAWH15202311

13265BOLT, CONNECTING ROD

main13265-25020×8iA25..AAWH1#; T24..TAWH15202311

13405FLYWHEEL SUB-ASSY

main13450-25010iT24..TAWH15202311

main13451-25030iA25..AAWH1#202311

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3iA25..AAWH1#202311

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8iA25..AAWH1#202311

main90110-12020×8iT24..TAWH15202311

13411CRANKSHAFT

main13401-25010iA25..AAWH1#202311

main13401-25060iT24..TAWH15202311

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iA25..AAWH1#202311

13470PULLEY ASSY, CRANKSHAFT

main13470-25020iA25..AAWH1#202311

main13470-25060iT24..TAWH15202311

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2iA25..AAWH1#202311

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iA25..AAWH1#; T24..TAWH15202311

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010iA25..AAWH1#202311

main13519-25040iT24..TAWH15202311

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010iA25..AAWH1#202311

main13521-25030iT24..TAWH15202311

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25011iA25..AAWH1#202311

main19315-25031iT24..TAWH15202311

19 parts on this diagram · 2 diagrams in section
