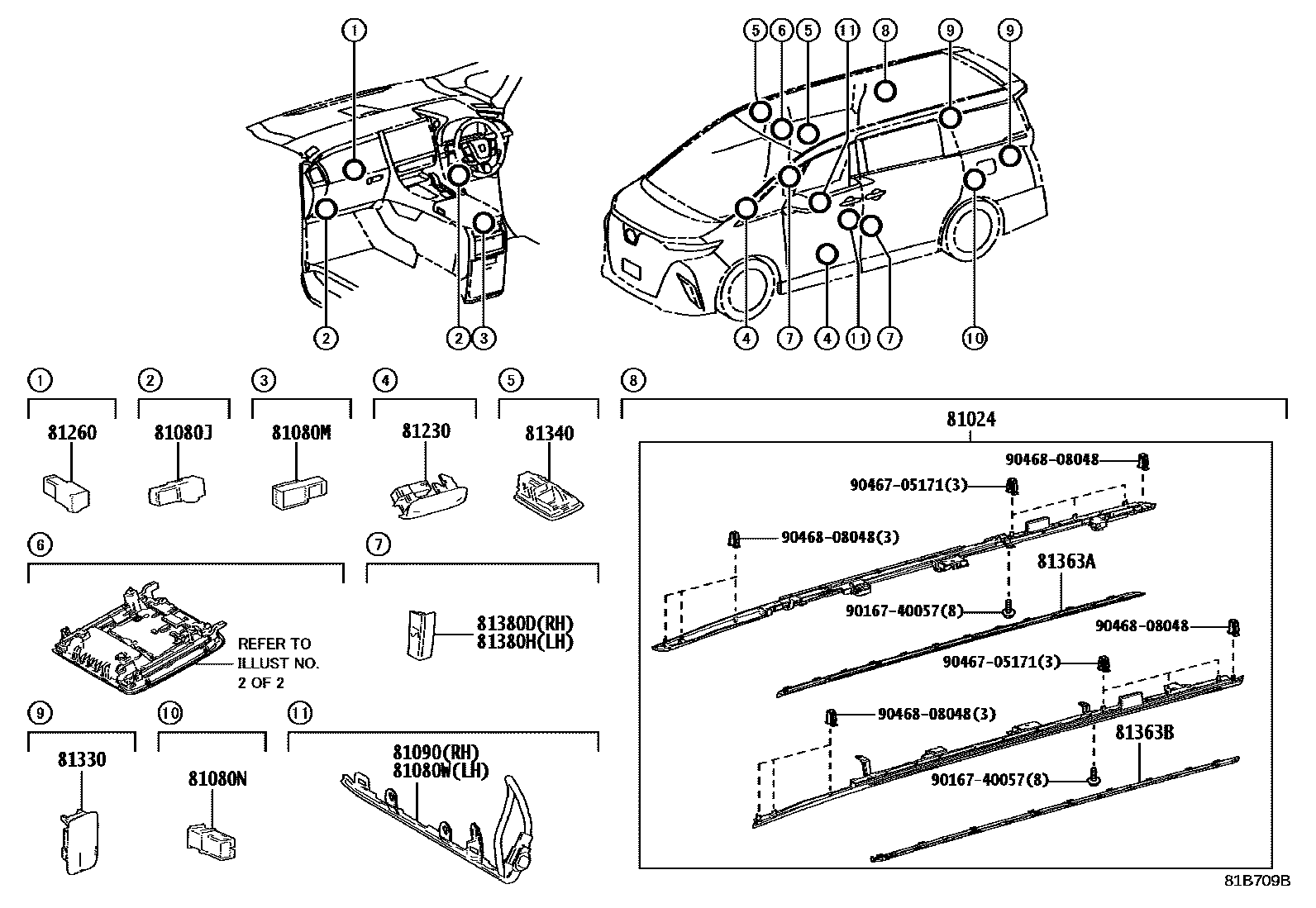

INTERIOR LAMP

0001 1 0002 1

81024LAMP SET, ROOM

main81024-V2010-C0iAAHH4#,AGH4#..G,X202306

BLACK,TRIM2#

main81024-V2030-E1iAAHH4#,AGH4#..PREM; AAHH4#,AGH4#..Z202306

BRONZE,TRIM2#; BRONZE,TRIM2#,4#

main81024-V2040-E1iAAHP45,TAHA4#..Z; AGH4#..PREM; AGH4#..Z;AAHH4#..PREM,Z202306

main81024-V2060-B0iAAHH4#,AAHP45,TAHA4#..EL202306

SILVER,TRIM2#

main81024-V2060-E1iAAHH4#,AAHP45,TAHA4#..EL202306

BRONZE,TRIM4#

main81024-V2090-B0iAAHH4#,AAHP45..04S202501

SILVER,TRIM2#

main81024-V2090-E0iAAHH4#,AAHP45..04S202501

BRONZE,TRIM4#

main81024-V2020-C0iAAHH4#,AGH4#..G202306

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290×2iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z202306

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iAAHH4#,AAHP45,AGH4#,TAHA4#202306

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-78050iAAHH4#,AAHP45,AGH4#,TAHA4#202306

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81090-V2060iAAHH4#,AAHP45..04S202501

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-V2050iAAHH4#,AAHP45..04S202501

81230LAMP ASSY, COURTESY

main81230-11030×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

81260LAMP ASSY, GLOVE BOX

main81080-33290iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z202306

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

81340LAMP ASSY, VANITY

main81340-33170×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

81363ALENS, ROOM LAMP, OUTER RH

main81363-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

81363BLENS, ROOM LAMP, OUTER LH

main81363-V2020iAAHH4#,AAHP45,AGH4#,TAHA4#202306

81380DLAMP ASSY, STEP

main81380-V2030-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS,Z); AAHP45..PREM202501

BLACK,TRIM2#; BLACK,TRIM2#,4#

81380HLAMP ASSY, STEP

main81390-V2020-C0iAAHH4#,AGH4#,TAHA4#..EL,PREM,Z; AAHH4#,AGH4#..G,X202306

9016740057

main90167-40057

9046705171

main90467-05171

9046808048

main90468-08048

17 parts on this diagram · 2 diagrams in section
