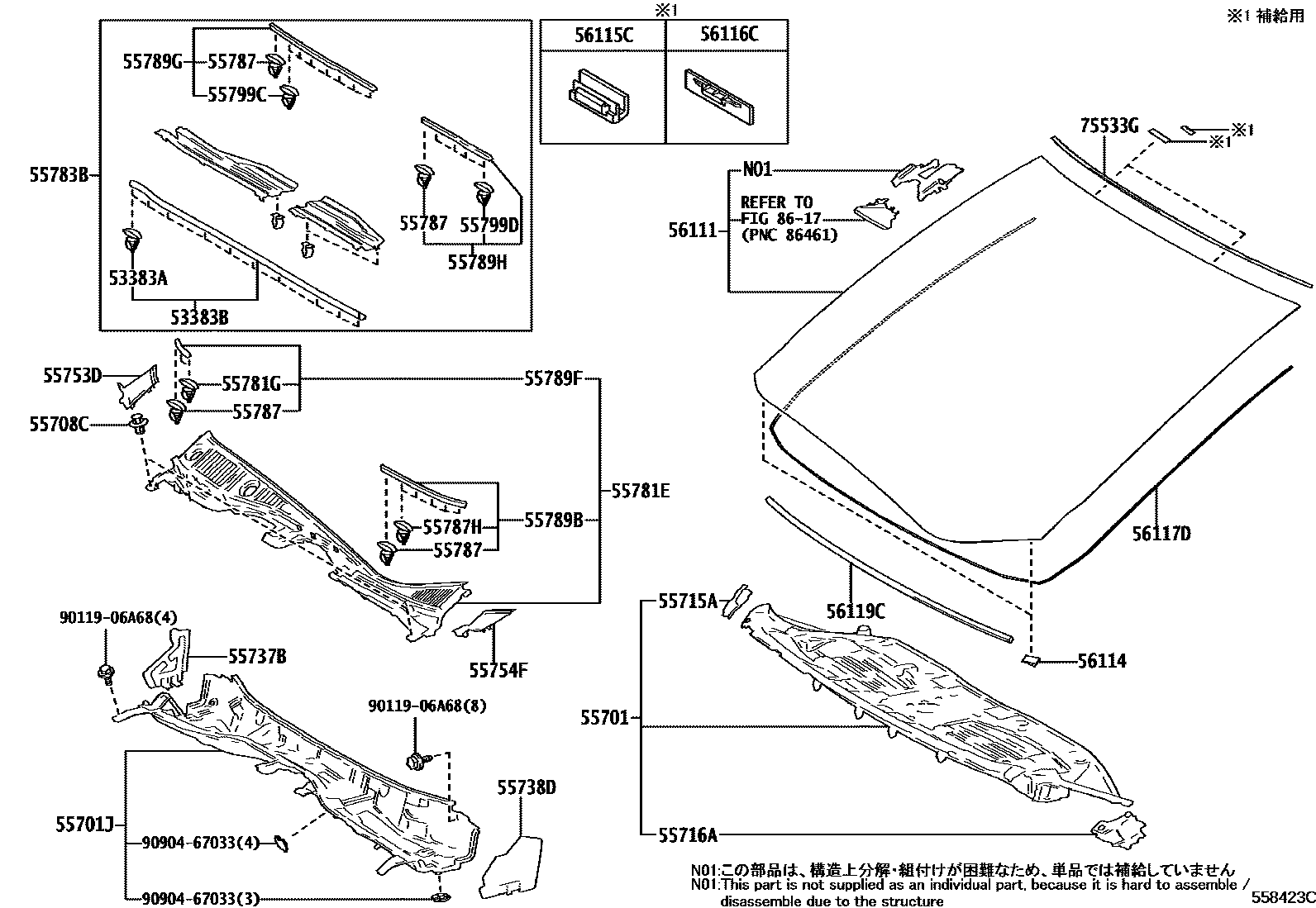

COWL PANEL & WINDSHIELD GLASS

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030×10iAAHH4#,AAHP45,AGH4#,TAHA4#202306

53383BSEAL, HOOD TO COWL TOP

main53383-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55701PANEL SUB-ASSY, COWL

main55700-V2010iAAHH4#,AAHP45,AGH4#..G,PREM,X,Z202306

main55700-V2030iAAHH4#,AAHP45,AGH4#..PREM,Z; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55715ABRACE, COWL TOP TO APRON, RH

main55715-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55716ABRACE, COWL TOP TO APRON, LH

main55716-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55738-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-V2020iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-V2020supersedes 55708-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55781GCLIP, COWL TOP VENTILATOR LOUVER

main67867-48030×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55709-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55787CLIP, COWL VENTILATOR LOUVER, INNER

main67867-12150×4iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55787HCLIP, COWL TOP PANEL INSULATOR

main67867-48030×5iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-V2120iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55789FPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.1

main55789-V2070iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55789GPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.3

main55789-V2080iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55789HPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.4

main55789-V2130iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55799CCLIP, COWL TOP VENTILATOR LOUVER

main67867-48030×7iAAHH4#,AAHP45,AGH4#,TAHA4#202306

55799DCLIP, COWL TOP VENTILATOR LOUVER, NO.1

main67867-48030×4iAAHH4#,AAHP45,AGH4#,TAHA4#202306

56111GLASS, WINDSHIELD

main56101-V2901supersedes 56101-V2900iAAHH4#,AGH4#..PREM,Z202306-202311

main56101-V2904supersedes 56101-V2944iAAHH4#,AGH4#..X202306-202311

main56101-V2907supersedes 56101-V2900iAAHH4#,AGH4#..PREM,Z; TAHA4#;AAHH4#..EL202306-202311

main56101-V2909supersedes 56101-V2907iAAHH4#,AGH4#..PREM,Z; TAHA4#;AAHH4#..EL202306-202311

main56101-V2912supersedes 56101-V2949iAAHH4#,AGH4#..G202306-202311

main56101-V2943supersedes 56101-V2942iAAHH4#,AAHP45,AGH4#..PREM,Z202311

main56101-V2945supersedes 56101-V2944iAAHH4#,AGH4#..X202311

main56101-V2946supersedes 56101-V2942iAAHH4#,AAHP45,AGH4#..PREM,Z; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202311

main56101-V2947supersedes 56101-V2946iAAHH4#,AAHP45,AGH4#..PREM,Z; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202311

main56101-V2948supersedes 56101-V2949iAAHH4#,AGH4#..G202311

56114RETAINER, WINDSHIELD GLASS

main56114-30120×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

56115CSTOPPER, WINDSHIELD GLASS

main56115-30120iAAHH4#,AAHP45,AGH4#,TAHA4#202306

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAAHH4#,AAHP45,AGH4#,TAHA4#202306

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-50130iAAHH4#,AAHP45,AGH4#,TAHA4#; AAHH4#,AAHP45,AGH4#..PREM,Z202306

56119CSEAL, WINDSHIELD GLASS

main56119-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9011906A68

main90119-06A68

9090467033

main90904-67033

32 parts on this diagram · 1 diagram in section
