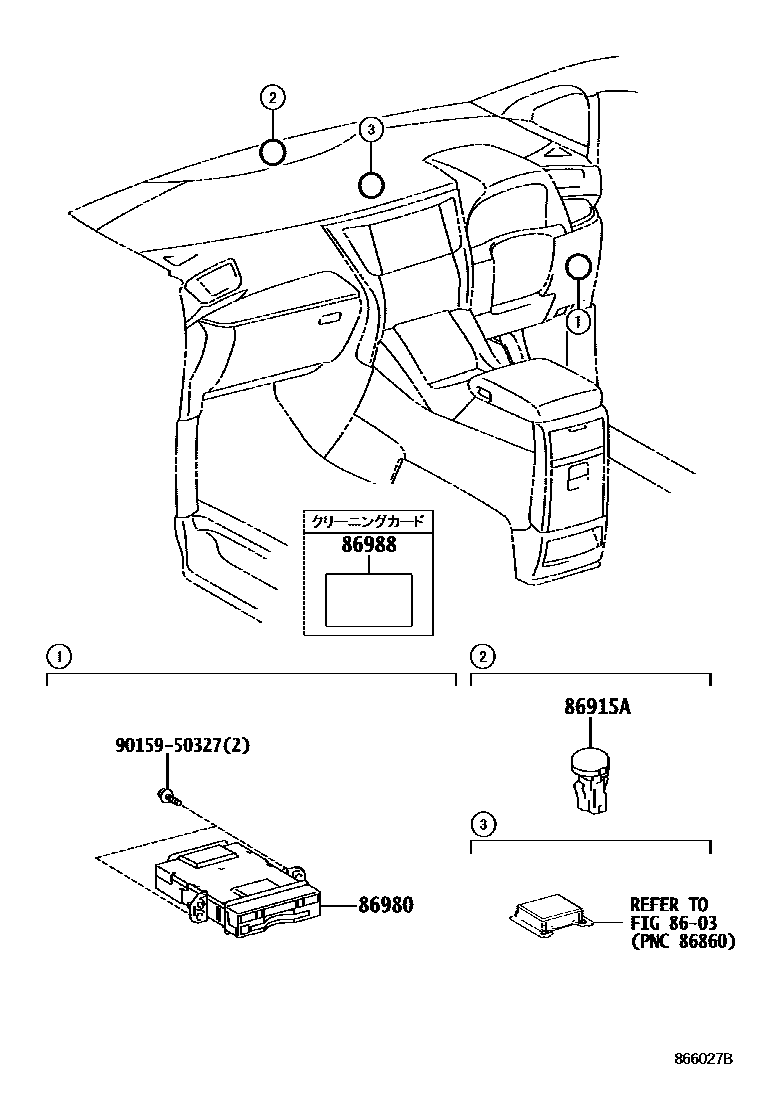

RADIO COMMUNICATION & ETC

0001 1 0002 1������ ������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86915ATRANSCEIVER, OPTICAL BEACON

main86915-60010iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR; AYH30,GGH3#..EL201501-201801

main86915-K0010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR)202001-202104

86980COMPUTER ASSY, TOLL COLLECTION

main86980-30120iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201801-202001

main86980-58030iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR); AYH30,GGH3#..VFIRE..(EL,ELZ)202001-202105

main86980-62010iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

main86980-K0010iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X)202001-202107

main86980-K0011iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X)202107

main86980-K0020iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X)202001-202105

main86980-K0021iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X)202107

86988CARD, TOLL COLLECTION CLEANING

main86988-11010iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)202001

9015950327

main90159-50327

5 parts on this diagram · 2 diagrams in section
