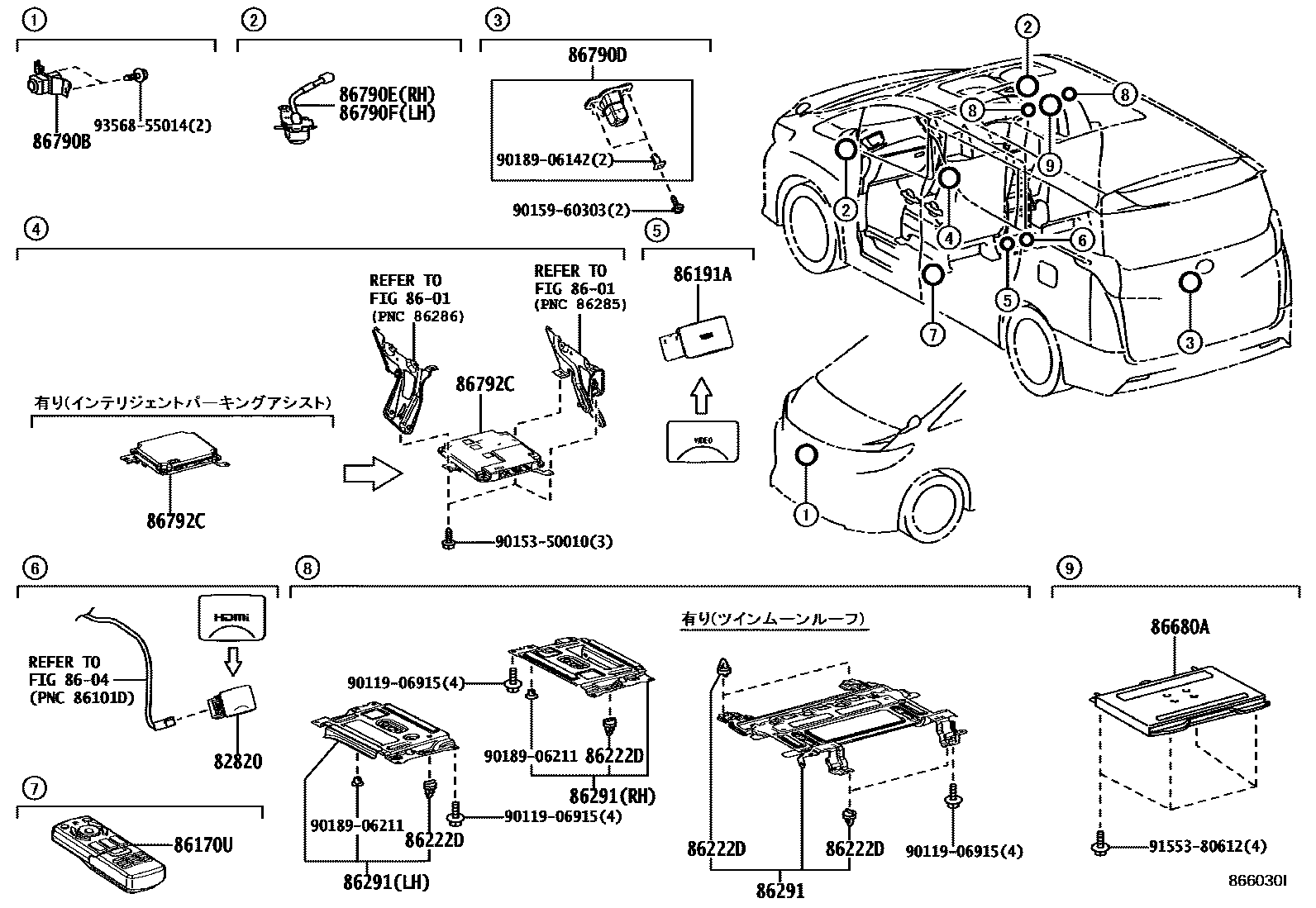

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0003 1

82820COVER, CONNECTOR

main82821-58050-C0iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AGH3#..07S..(S,Z); AYH30,GGH3#..EL; AYH30,GGH3#..ELS,ELZ201801-201806

main82821-58050-C2iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AGH3#..07S..(S,Z); AYH30,GGH3#..EL; AYH30,GGH3#..ELS,ELZ201806-202001

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8604ANTENNA

→ Go to FIG 86-04

86170USWITCH & VOLUME ASSY, REAR

main86170-58090iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-45020-C0iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AGH3#..07S..(S,Z); AYH30,GGH3#..EL; AYH30,GGH3#..ELS,ELZ201801-201805

main86191-45020-C2supersedes 86191-45020-C0iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AGH3#..07S..(S,Z); AYH30,GGH3#..EL; AYH30,GGH3#..ELS,ELZ201805-202001

86222DCLIP, TELEVISION BRACKET

main86222-60020×2iAGH3#,AYH30,GGH3#; AGH35..G,V;AGH35..08S..X201501-201504

86291BRACKET, TELEVISION

main86291-58070iAGH3#,AYH30,GGH3#201501-201801

main86291-58100iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

main86291-58050iGGH35..EL,GF,VL;AGH30,AYH30,GGH30201501-201602

main86291-58051iGGH35..EL,GF,VL;AGH30,AYH30,GGH30201603-201801

main86291-58052iAGH30..08S..Z;GGH35..VFIRE..(EL,ELZ,VL);AGH30,AYH30,GGH30..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

86680ADISPLAY ASSY, TELEVISION

main86680-58090-A0iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

main86680-58090-C0iAGH3#,GGH3#..07S..(S,SA,Z,ZA); AYH30,GGH3#..EL201501-201801

main86680-58240-A0iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AYH30,GGH3#..EL201801-202001

main86680-58240-C0iAGH3#,AYH30..07S..(S,Z); AYH30,GGH3#..EL,ELS,ELZ201801-202001

main86680-58300-A0iAGH3#,AYH30,GGH3#..VFIRE..(V,VL,X); AYH30,GGH3#..VFIRE..(EL,ELZ)202001-202104

main86680-58300-C0iAGH3#,AYH30..07S..(S,Z); AYH30,GGH3#..ALPHD..(EL,ELS)202001

main86680-58090-B0iAGH3#,GGH3#..07S..(S,SA,Z,ZA); AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR201501-201801

main86680-58240-B0iAGH3#,AYH30..07S..(S,Z); AGH3#..08S..(S,Z);AYH30,GGH3#..SC,SR,ZG,ZR201801-202001

main86680-58300-B0iAGH3#,AYH30..07S..(S,Z); AGH3#..08S..S;AYH30,GGH3#..SC,SR202001

86790BCAMERA ASSY, TELEVISION, FR

main86790-58160iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)201801-202001

main86790-58170iAGH3#,AYH30,GGH3#..VFIRE..(V,VL,X); AYH30,GGH3#..VFIRE..EL201801-202001

main86790-58210iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X); AYH30,GGH3#..ALPHD..EL201501-201801

main86790-58220iAGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR); AYH30,GGH3#..VFIRE..EL201501-201801

main86790-58230iAGH3#,AYH30,GGH3#..Z,ZG,ZR; AYH30,GGH3#..ELZ201801-202001

main86790-58280iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)202001

main86790-58290iAGH3#,AYH30,GGH3#..VFIRE..(V,VL,X); AYH30,GGH3#..VFIRE..EL202001-202104

main86790-58300iAGH3#..08S..Z;AYH30,GGH3#..ZG,ZR; AYH30,GGH3#..ELZ202001-202104

86790DCAMERA ASSY, TELEVISION, RR

main86790-58200iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

main86790-58240supersedes 867B0-58010iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)202001

main86790-58180iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR201801-202001

main86790-58190iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR201501-201801

main867B0-58010iAGH3#,AYH30..VFIRE..(X,Z)202001-202010

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-48160iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

main86790-58270iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR); AYH30,GGH3#..VFIRE..(EL,ELZ)202001-202104

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-48150iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

main86790-58260iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR); AYH30,GGH3#..VFIRE..(EL,ELZ)202001-202104

86792CCOMPUTER, PARKING ASSIST

main86792-58160iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X); AYH30,GGH3#..ALPHD..EL201501-201801

main86792-58170iAGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR); AYH30,GGH3#..VFIRE..EL201501-201801

main86792-58210iAGH3#..08S..S;AGH3#..ALPHD..(G,X);AYH30..ALPHD..(S,X); AYH30,GGH3#..ALPHD..(EL,ELS)201801-201910

main86792-58211iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)201911-202001

main86792-58220iAGH3#..08S..Z;AGH3#..VFIRE..(V,X);AYH30..VFIRE..(X,Z); AYH30,GGH3#..VFIRE..(EL,ELZ)201801-201910

main86792-58221iAGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR); AYH30,GGH3#..VFIRE..(EL,ELZ)201911-202001

main86792-58270iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)202001

main86792-58280iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR); AYH30,GGH3#..VFIRE..(EL,ELZ)202001-202104

main86792-58190iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR201501-201510

main86792-58191iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR201510-201607

main86792-58200iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR201607-201801

main86792-58240iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR201801-202001

9011906915

main90119-06915

9015350010

main90153-50010

9015960303

main90159-60303

9018906142

main90189-06142

9018906211

main90189-06211

9155380612

main91553-80612

9356855014

main93568-55014

20 parts on this diagram · 3 diagrams in section
