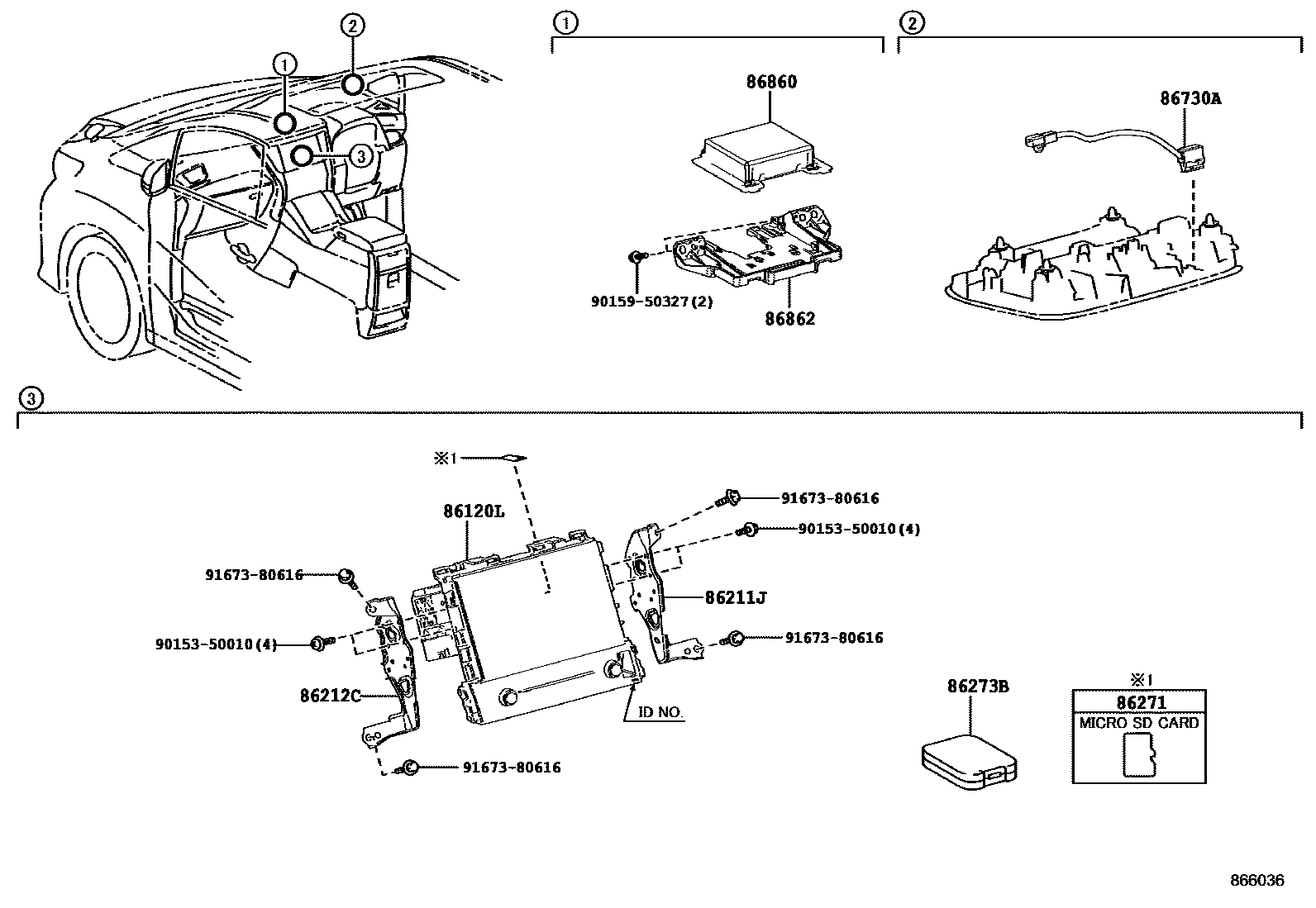

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86120LRECEIVER ASSY, NAVIGATION

main86804-58060iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201606

main86804-58100iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201607-201801

main86804-58110iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201801-202001

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-58110iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-58110iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

86271DISC, DISC PLAYER

main86271-58040iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201502

main86271-58041iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201503-201508

main86271-58042iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201509-201603

main86271-58043iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201603-201607

main86271-58120iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201607-201608

main86271-58121iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201609-201703

main86271-58122iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201704-201707

main86271-58123iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201708-201801

main86271-58130iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201801-201803

main86271-58131iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201804-201808

main86271-58132iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201809-201903

main86271-58133iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201904-201907

main86271-58134iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201909-202001

main86807-11012iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR202001-202004

86273BADAPTER, DISC PLAYER

main86273-48030iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

86730AMICROPHONE ASSY, TELEPHONE

main86730-28060iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR; AGH3#,AYH30..07S..(S,SR,Z,ZR); AGH3#,AYH30..S,X,Z; AGH3#..07S..(S,Z); AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR; AGH30,AYH30..07S..(S,SR,Z,ZR); AGH30,AYH30..S,X,Z; AGH30..07S..(S,Z); AYH30,GGH3#..EL; AYH30,GGH3#..G,GF,V,VL; GGH3#..SA,ZA; GGH30..SA,ZA; GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR201501-201801

86860ANTENNA ASSY, NAVIGATION

main86880-78010iAGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR; AYH30,GGH3#..EL201501-201801

main86870-58050iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR201501-201801

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202204

main86862-58020iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR; AYH30,GGH3#..EL201501-201801

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

11 parts on this diagram · 2 diagrams in section
