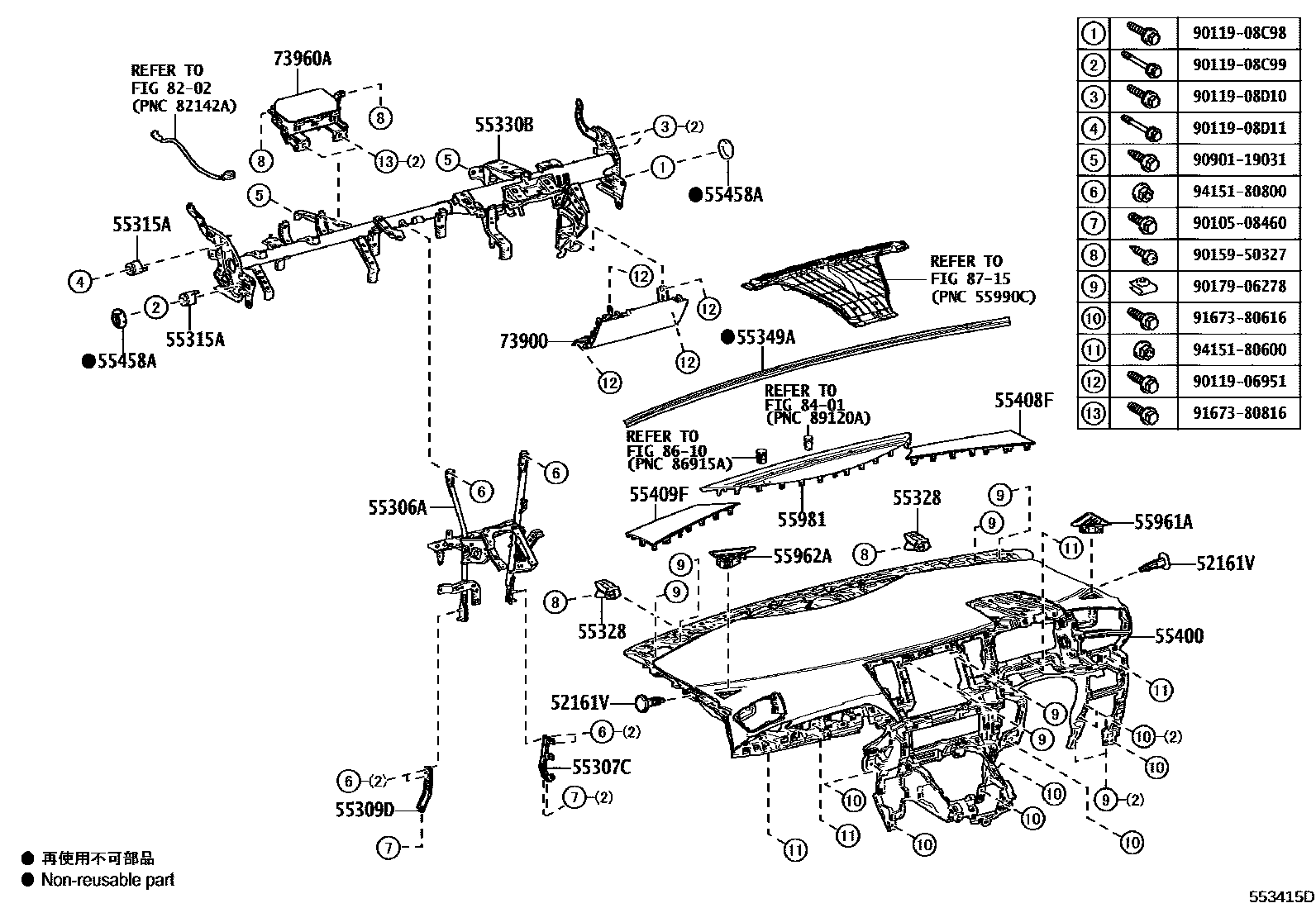

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER(1/2) 0004 1CENTER(2/2) 0005 1PASSENGER SIDE 0006 1 0007 1DRIVER SIDE 0008 1CENTER(1/2) 0009 1CENTER(2/2) 0010 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iAGH3#,AYH30,GGH3#201501-201801

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-58050iAGH3#,AYH30,GGH3#201501-201801

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-58020iAGH3#,AYH30,GGH3#201501-201801

55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-58010iAGH3#,AYH30,GGH3#201501-201801

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iAGH3#,AYH30,GGH3#201501-201801

55328PIN, INSTRUMENT PANEL, NO.1

main55328-28130×2iAGH3#,AYH30,GGH3#201501-201801

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-58050iAGH3#,AYH30,GGH3#201501-201703

main55330-58051iAGH3#,AYH30,GGH3#201704-201801

main55330-58052iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

55349ACUSHION, INSTRUMENT PANEL

main55349-58050iAGH3#,AYH30,GGH3#201501-201801

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-58020-C0iAGH3#..X201501-201701

BLACK,TRIM0#,2#

main55400-58021-C0iAGH3#..X201701-201801

BLACK,TRIM0#

main55400-58030-C0iAGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR; AYH30..X201501-201701

BLACK,TRIM0#; BLACK,TRIM0#,2#

main55400-58031-C0supersedes 55400-58021-C0iAGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR; AYH30,GGH3#..EL; AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL201701-201801

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-58030-C0iAGH3#,AYH30,GGH3#201501-201801

BLACK,TRIM0#,2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-58020-C0iAGH3#,AYH30,GGH3#201501-201801

BLACK,TRIM0#,2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×2iAGH3#,AYH30,GGH3#201501-201801

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-58040-C0iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55962ANOZZLE, SIDE DEFROSTER, LH

main55962-58040-C0iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-58030-C0supersedes 55981-58020-C0iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201511

main55981-58031-C0supersedes 55981-58021-C0iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR; AYH30,GGH3#..EL201512-201801

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-58030-C0iAGH3#,AYH30,GGH3#201501-201801

BLACK,TRIM0#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-58030iAGH3#,AYH30,GGH3#201501-201801

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8610RADIO COMMUNICATION & ETC

→ Go to FIG 86-10

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9010508460

main90105-08460

9011906951

main90119-06951

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D10

main90119-08D10

9011908D11

main90119-08D11

9015950327

main90159-50327

9017906278

main90179-06278

9090119031

main90901-19031

9167380616

main91673-80616

9167380816

main91673-80816

9415180600

main94151-80600

9415180800

main94151-80800

34 parts on this diagram · 10 diagrams in section
