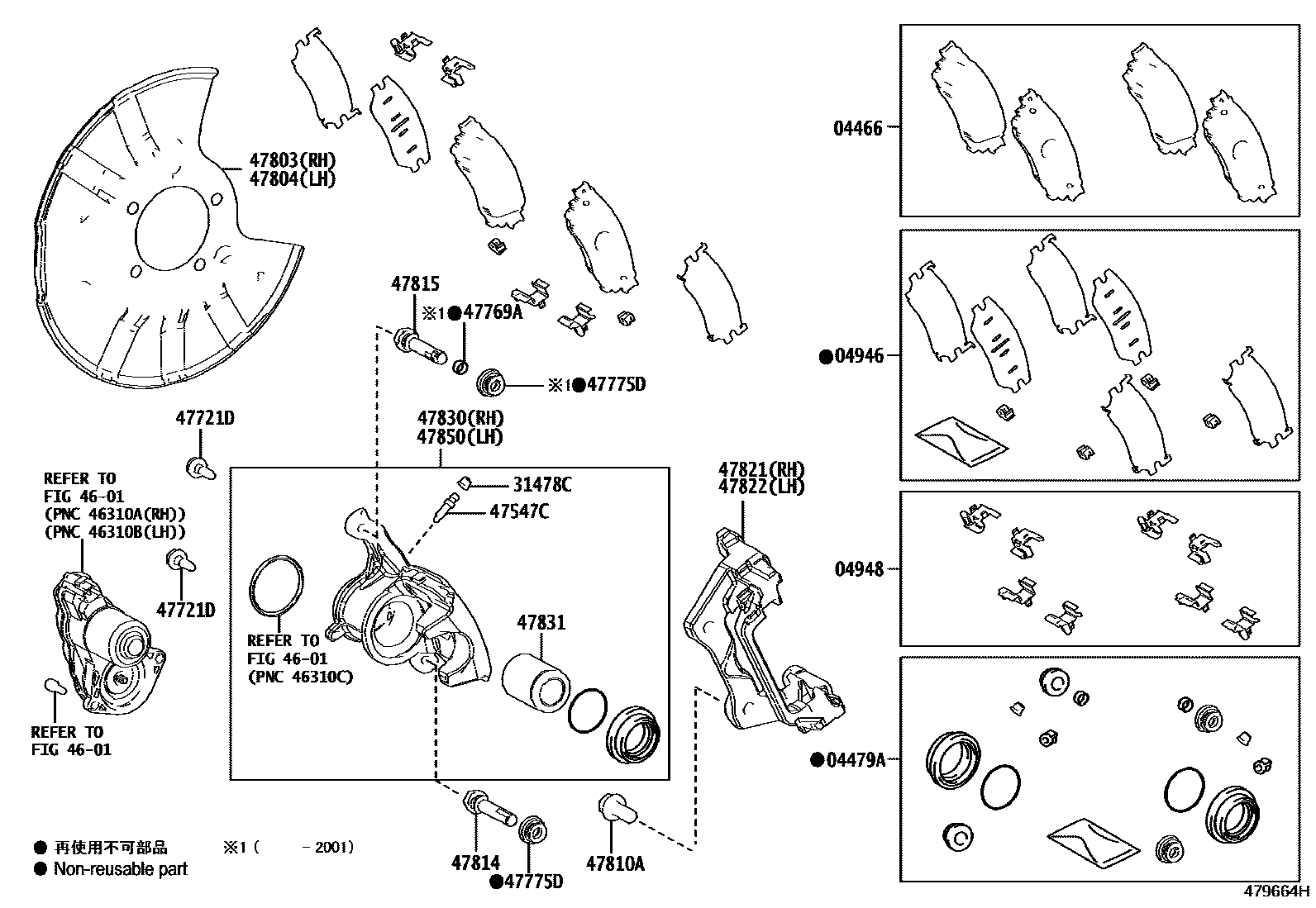

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-58021iAGH3#,AYH30,GGH3#201501-201506

sub04466-58022

main04466-58022iAGH3#,AYH30,GGH3#201506-202104

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-58030iAGH3#,AYH30,GGH3#201501-201705

sub04479-58031

main04479-58031iAGH3#,AYH30,GGH3#201705-202104

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-58010iAGH3#,AYH30,GGH3#201501-202104

04948FITTING KIT, DISC BRAKE, REAR

main04948-58010iAGH3#,AYH30,GGH3#201501-202104

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAGH3#,AYH30,GGH3#201501-202104

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAGH3#,AYH30,GGH3#201501-202104

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAGH3#,AYH30,GGH3#201501-202104

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAGH3#,AYH30,GGH3#201501-202104

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52190iAGH3#,AYH30,GGH3#201501-201705

main47875-33270iAGH3#,AYH30,GGH3#201705-202104

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-58010iAGH3#,AYH30,GGH3#201501-202104

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-58010iAGH3#,AYH30,GGH3#201501-202104

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14196iAGH3#,AYH30,GGH3#201501-202104

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAGH3#,AYH30,GGH3#201501-202104

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAGH3#,AYH30,GGH3#201501-202104

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-58030iAGH3#,AYH30,GGH3#201501-202104

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-58030iAGH3#,AYH30,GGH3#201501-202104

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-58030iAGH3#,AYH30,GGH3#201501-202104

47831PISTON, REAR DISC BRAKE

main47831-58030iAGH3#,AYH30,GGH3#201501-202104

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-58030iAGH3#,AYH30,GGH3#201501-202104

20 parts on this diagram · 1 diagram in section
