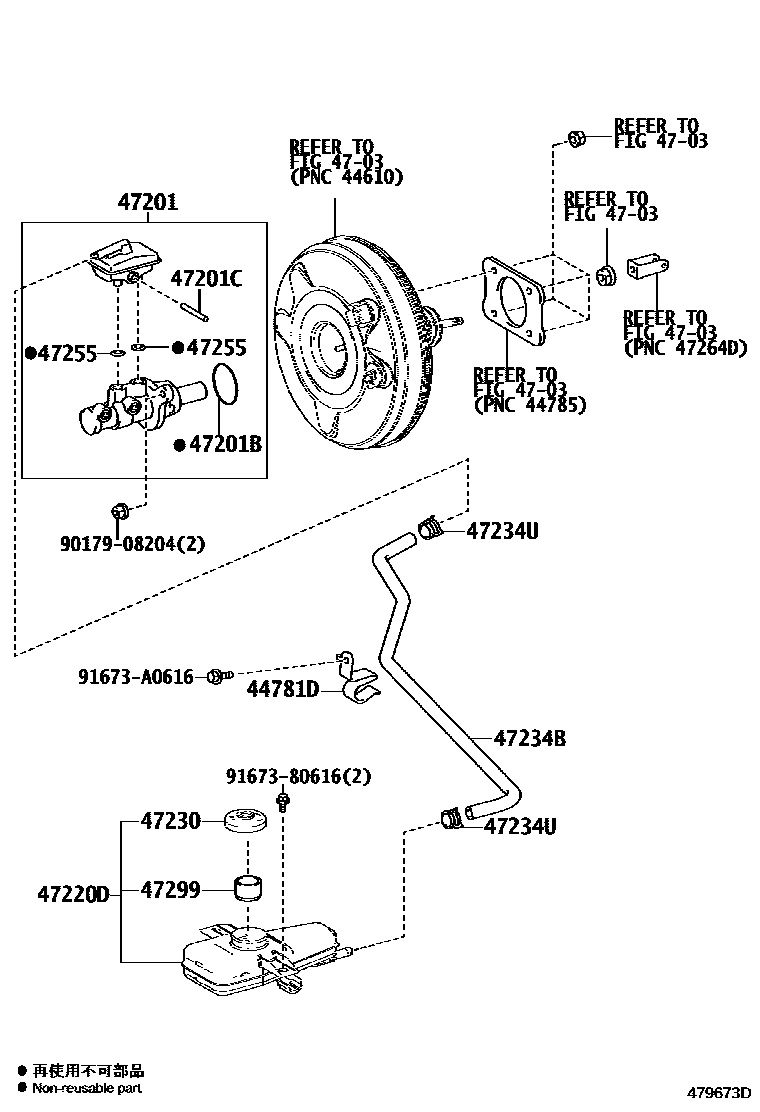

BRAKE MASTER CYLINDER

0001 1 0002 1

44781DBRACKET, RESERVOIR HOSE

main44781-58030iAGH3#,GGH3#201501-202104

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-58070iAGH3#,GGH3#201501-201602

sub47201-58071

main47201-58071iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG)201603-202104

main47201-58090iAYH30..VFIRE..(EL,ELZ,V,X,ZR)201501-202104

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iAGH3#,GGH3#201501-202104

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401iAGH3#,GGH3#201501-202104

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-58050iAGH3#,GGH3#201501-202104

main47220-58060iAYH30..Z;AYH30..ALPHD201501-202201

main47220-58080iAYH30..Z;AYH30..ALPHD202201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11010iAYH30201704-202201

main47230-11020iAYH30..Z;AYH30..ALPHD202201

main47230-47090iAYH30201612-201704

main47230-58010iAYH30201501-201612

sub47230-11010

main47230-58021iAGH3#,GGH3#201501-202104

47234BTUBE, RESERVOIR, NO.1

main47234-58090iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main47234-58110iAYH30..VFIRE..(EL,ELZ,V,X,ZR)201501-202104

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96136-41801iAGH3#,GGH3#201501-201904

main96136-51801iAGH3#,GGH3#201905-202104

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAYH30201501-202104

main90015-AT001iAGH3#,GGH3#201501-202104

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iAYH30201501-202104

main47299-58021iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

9017908204

main90179-08204

9167380616

main91673-80616

91673A0616

main91673-A0616

14 parts on this diagram · 2 diagrams in section
