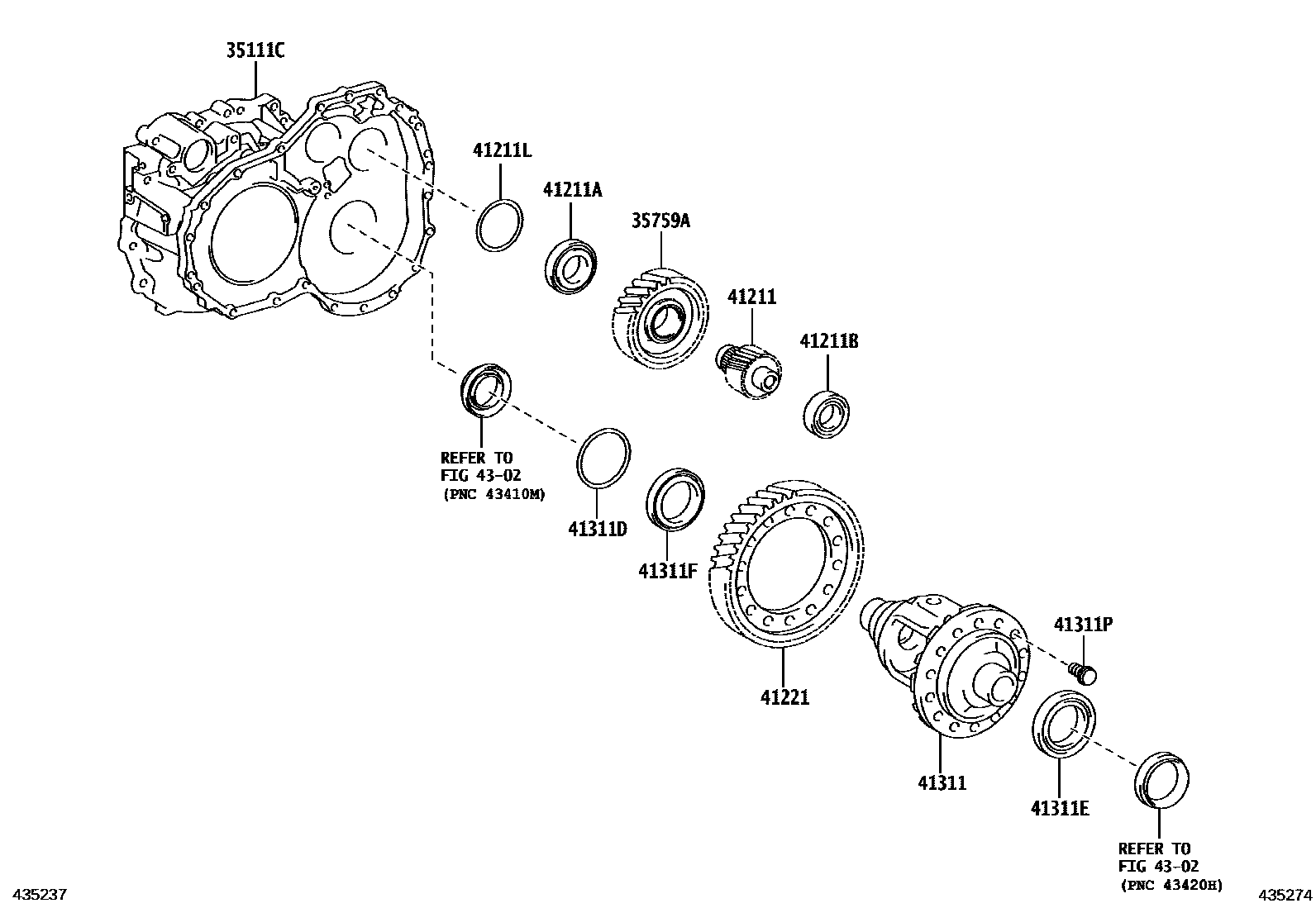

FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
sub35105-28062
sub35105-33012
sub35105-48110
sub35105-48110
sub35105-48121
sub35105-48121
35759AGEAR, REDUCTION DRIVEN
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
41311CASE, FRONT DIFFERENTIAL
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
sub90366-57054
sub90366-57054
sub90366-57054
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
sub90366-55094
sub90366-55094
sub90366-55094
41311PBOLT (FOR FRONT DIFFERENTIAL CASE)
4302
13 parts on this diagram · 3 diagrams in section
