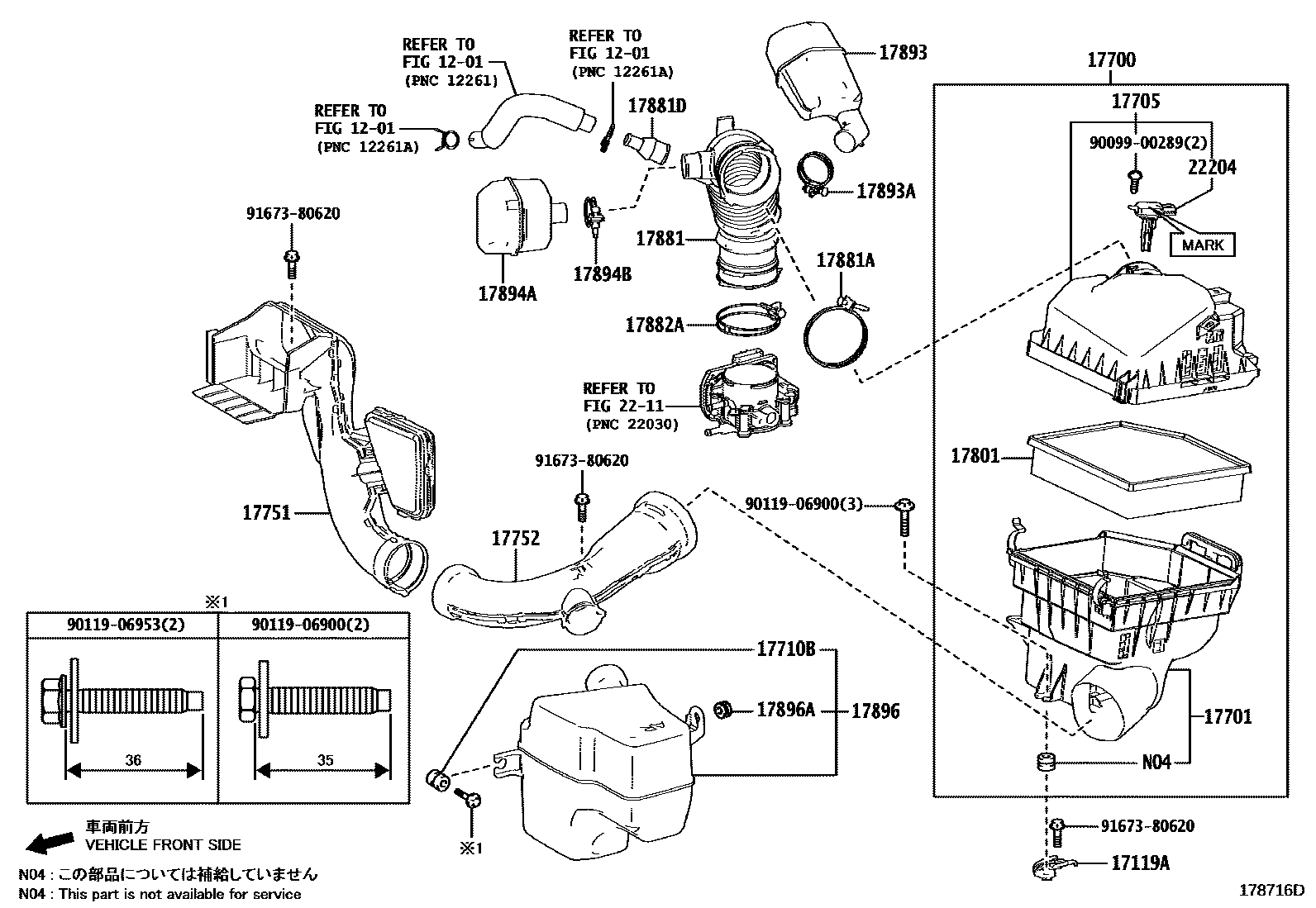

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1201

17119ABRACKET, AIR CLEANER

main17119-31170i2ARFE..AGH3#201501-202104

main17119-36050i2ARFXE..AYH30201501-201904

sub17119-36070

main17119-36070i2ARFXE..AYH30201905-202104

17700CLEANER ASSY, AIR

main17700-31A90i2GRFE..GGH3#201501-201801

main17700-31B90i2GRFKS..GGH3#..VFIRE201801-202104

main17700-36380i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z201501-202104

main17700-36390i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)201501-202205

main17700-V2010i2ARFXE..AYH30..Z;2ARFXE..AYH30..ALPHD202205

17701CASE SUB-ASSY, AIR CLEANER

main17701-31710i2GRFKS..GGH3#..ALPHD201801-202104

main17701-31720i2GRFE..GGH3#201501-202104

main17701-36280i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)201501-202205

main17701-V2030i2ARFXE..AYH30..Z;2ARFXE..AYH30..ALPHD202205

17705CAP SUB-ASSY, AIR CLEANER

main17705-31430i2GRFE..GGH3#201501-201801

main17705-31540i2GRFKS..GGH3#..VFIRE201801-202104

main17705-36160i2ARFE..AGH3#..08S..Z;2ARFE..AGH3#..VFIRE..(V,X)201501-202104

17710BGROMMET

main90480-14022i2ARFE..AGH3#201501-202104

17751INLET, AIR CLEANER, NO.1

main17751-31380i2GRFKS..GGH3#..VFIRE201501-202104

main17751-36130i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z201501-202104

17752INLET, AIR CLEANER, NO.2

main17752-31150i2GRFKS..GGH3#..ALPHD201501-202104

main17752-36040i2ARFE..AGH3#201501-202104

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31170i2GRFE..GGH3#201501-202104

main17801-36010i2ARFXE..AYH30201501-202104

17881HOSE, AIR CLEANER, NO.1

main17881-31320i2GRFE..GGH3#201501-201801

main17881-31490i2GRFKS..GGH3#..VFIRE201801-202104

main17881-36170i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z201501-202104

main17881-36180i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)201501-202205

main17881-36230i2ARFXE..AYH30..Z;2ARFXE..AYH30..ALPHD202205

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i2AR#..AGH3#,AYH30201501-202104

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2ARFE..AGH3#201501-202104

17882HOSE, AIR CLEANER, NO.2

main17882-28020i2ARFXE..AYH30201501-202104

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ARFXE..AYH30201501-202104

main96111-10850i2ARFE..AGH3#201501-202104

17893RESONATOR, INTAKE AIR

main17893-31160i2GRFKS..GGH3#201501-202104

main17893-36140i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z201501-202104

17893ACLAMP, HOSE

main96111-10450i2ARFE..AGH3#201501-202104

17894ARESONATOR, INTAKE AIR, NO.2

main17894-31040i2GRFE..GGH3#201501-202104

main17894-36090i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z201501-202104

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10380i2ARFE..AGH3#201501-202104

17896RESONATOR, INTAKE AIR, NO.3

main17896-31030i2GRFE..GGH3#201501-202104

main17896-36030i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z201501-202104

17896ACLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)

main90385-07002i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z201501-202104

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2GRFE..GGH3#201501-202104

sub22204-28010

main22204-0V010i2AR#..AGH3#,AYH30201501-202104

main22204-0V020i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)201501-202104

main22204-28010i2AR#..AGH3#,AYH30201501-202104

main22204-75040i2GRFKS..GGH3#201801-202104

9009900289

main90099-00289

9011906900

main90119-06900

9011906953

main90119-06953

9167380620

main91673-80620

26 parts on this diagram · 6 diagrams in section
