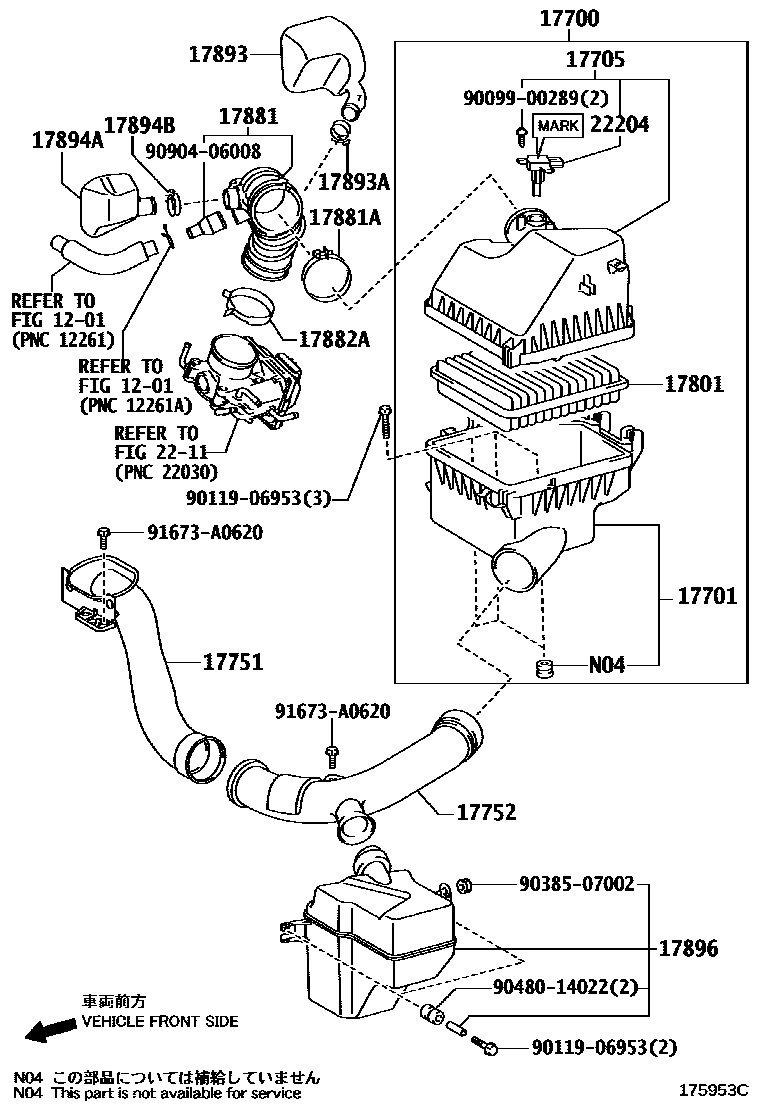

AIR CLEANER
1201
17701CASE SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17896RESONATOR, INTAKE AIR, NO.3
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900289
main90099-00289
9011906953
main90119-06953
9038507002
main90385-07002
9048014022
main90480-14022
9090406008
main90904-06008
91673A0620
main91673-A0620
24 parts on this diagram · 3 diagrams in section
