ALTERNATOR

0001 112V 130A 0002 112V 130A

1107

27020ALTERNATOR ASSY

main27060-20170i1MZFE..MNH1#..4FC200205-200307

sub27060-20180

main27060-20300i1MZFE..MNH1#200307-200504

sub27060-20290

main27060-28240i2AZFE..ANH1#200205-200504

main27060-28290i2AZFE..ANH1#200504

sub27060-28240

27039COVER, ALTERNATOR REAR END

main27039-20130i1MZFE..MNH1#200205-200307

main27039-27060i2AZFE,1MZFE..ANH1#,MNH1#200602

main27039-28150i1MZFE..MNH1#200205-200602

27064SEAL, ALTERNATOR PLATE

main27064-20130i2AZFE,1MZFE..ANH1#,MNH1#200205-200602

main27064-42010i2AZFE,1MZFE..ANH1#,MNH1#200205-200602

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-20130i1MZFE..MNH1#200205-200504

main27310-28120i2AZFE..ANH1#200205-200504

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i2AZFE,1MZFE..ANH1#,MNH1#200205-200611

sub90099-10223

main90099-10223i2AZFE,1MZFE..ANH1#,MNH1#200612

27312PLATE, RETAINER

main27312-72100i2AZFE,1MZFE..ANH1#,MNH1#200205-200504

27330ROTOR ASSY, ALTERNATOR

main27330-20130i2AZFE,1MZFE..ANH1#,MNH1#200205-200602

sub27330-33090

main27330-33090i2AZFE,1MZFE..ANH1#,MNH1#200602

27360COIL ASSY, ALTERNATOR

main27360-20130i1MZFE..MNH1#200205-200307

sub27360-20190

main27360-20170i1MZFE..MNH1#200602

sub27360-20140

main27360-20260i1MZFE..MNH1#200307-200602

main27360-28100i2AZFE..ANH1#200602

main27360-28150i2AZFE..ANH1#200205-200504

main27360-28220i2AZFE..ANH1#200504-200602

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i2AZFE,1MZFE..ANH1#,MNH1#200205-200602

main27370-58460i2AZFE,1MZFE..ANH1#,MNH1#200602

27387INSULATOR, TERMINAL

main27387-20130i2AZFE,1MZFE..ANH1#,MNH1#200205-200504

27411PULLEY, ALTERNATOR

main27411-28060i2AZFE..ANH1#200205-200504

main27411-46080i1MZFE..MNH1#200205-200504

2738450030WASHER

main27384-50030

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600

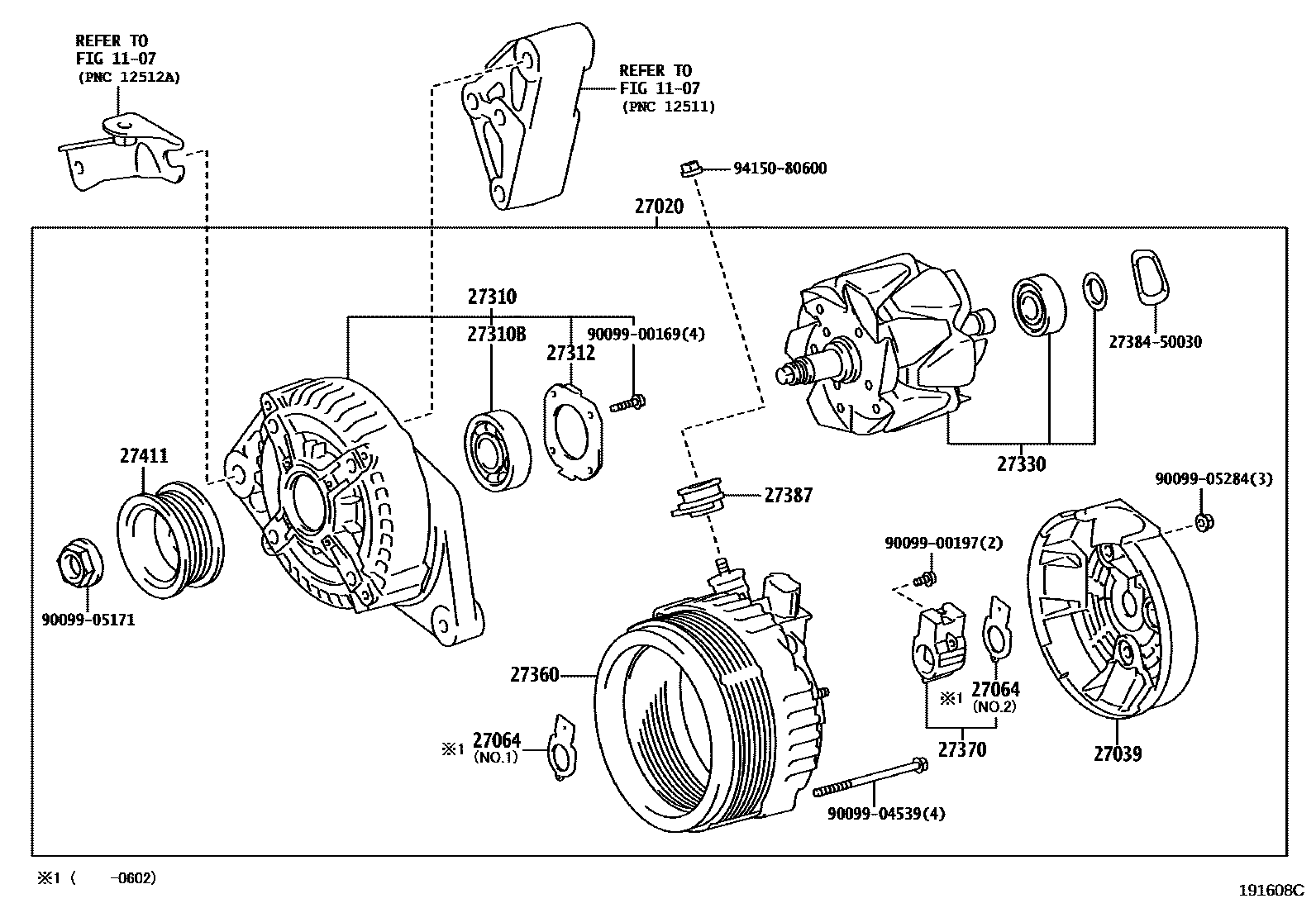

19 parts on this diagram · 2 diagrams in section
