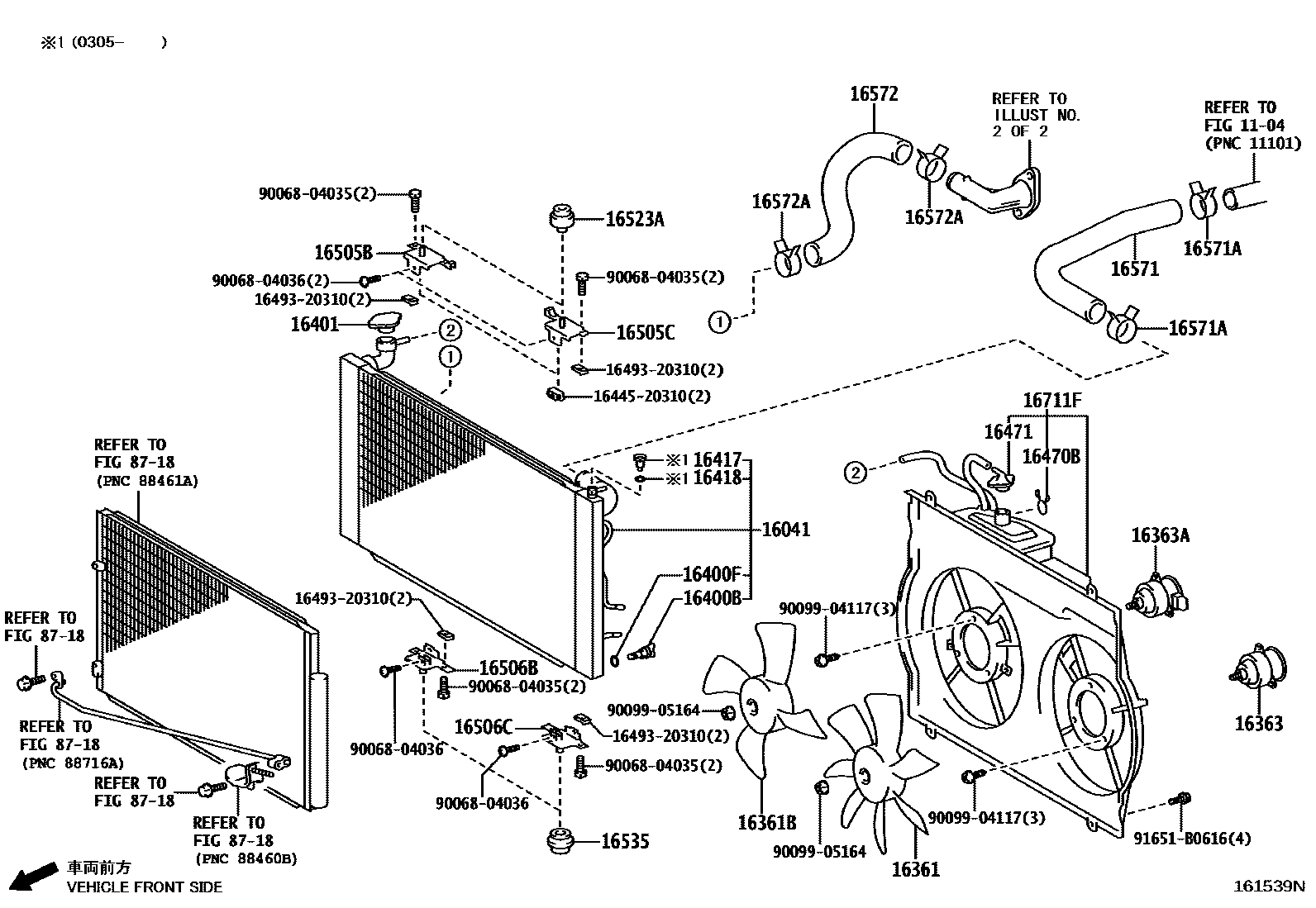

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104

16041RADIATOR ASSY, NO.2

main16041-28370i2AZFE..ANH1#200205-200504

sub16041-28371

main16041-28610i2AZFE..ANH1#200504

16361FAN

main16361-20160i1MZFE..MNH1#200205-200804

main16361-28040i2AZFE..ANH1#200205-200504

16361BFAN, NO.2

main16361-20150i1MZFE..MNH1#200205-200804

main16361-28090i2AZFE..ANH1#200205-200504

16363MOTOR, COOLING FAN

main16363-20250i1MZFE..MNH1#200205-200504

main16363-28020i2AZFE..ANH1#200205-200504

16363AMOTOR, COOLING FAN, NO.2

main16363-20260i1MZFE..MNH1#200205-200305

sub16363-20290

main16363-20290i1MZFE..MNH1#200305-200306

main16363-20380i1MZFE..MNH1#200307-200504

main16363-23010i2AZFE..ANH1#200205-200504

16400RADIATOR ASSY

main16041-20280i1MZFE..MNH1#200205-200504

sub16041-20281

main16041-20380i1MZFE..MNH1#200504-200804

sub16041-20381

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2AZFE..ANH1#200504

main90910-09054i1MZFE..MNH1#200205-200504

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2AZFE..ANH1#200504

main96711-19007i1MZFE..MNH1#200205-200504

16401CAP SUB-ASSY, RADIATOR

main16401-62100i1MZFE..MNH1#200205-200504

sub16401-31520

main16401-72090i2AZFE..ANH1#200205-200504

sub16401-20353

16417COCK

main16417-20290i2AZFE..ANH1#200305-200504

main16417-28530i2AZFE..ANH1#200504

16418PACKING

main16418-20290i2AZFE..ANH1#200305-200504

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2AZFE..ANH1#200205-200504

16471CAP SUB-ASSY, RESERVE TANK

main16405-20070i2AZFE..ANH1#200205-200211

sub16405-20071

main16405-20071i2AZFE..ANH1#200211-200504

16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH

main16505-20020i2AZFE..ANH1#200205-200504

16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH

main16505-20030i2AZFE..ANH1#200205-200504

main16506-20070i2AZFE..ANH1#200504

16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH

main16506-20010i2AZFE..ANH1#200205-200504

16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH

main16505-20110i2AZFE..ANH1#200504

main16506-20020i2AZFE..ANH1#200205-200504

16523ACUSHION, RADIATOR SUPPORT

main16523-28010i1MZFE..MNH1#200205-200504

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1MZFE..MNH1#..4FC200205-200312

main16535-64120i2AZFE..ANH1#200205-200504

16571HOSE, RADIATOR, INLET

main16571-20070i1MZFE..MNH1#200205-200504

main16571-28180i2AZFE..ANH1#200205-200504

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i2AZFE..ANH1#200205-200504

main90467-37008i2AZFE..ANH1#200205-200504

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-20090i1MZFE..MNH1#200205-200504

main16572-20091i1MZFE..MNH1#200504

main16572-28130i2AZFE..ANH1#200205-200504

main16572-28131i2AZFE..ANH1#200504

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41007i1MZFE..MNH1#200210-200504

main90467-37005i1MZFE..MNH1#200205-200504

main90467-37008i2AZFE..ANH1#200205-200504

sub90467-37005

main90467-41002i1MZFE..MNH1#..4FC200205-200210

sub90466-41008

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-20150i1MZFE..MNH1#200205-200504

main16711-20180i1MZFE..MNH1#200504-200804

main16711-28250i2AZFE..ANH1#200205-200504

main16711-28380i2AZFE..ANH1#200504-200804

8718

1644520310

main16445-20310

1649320310

main16493-20310

9006804035

main90068-04035

9006804036

main90068-04036

9009904117

main90099-04117

9009905164

main90099-05164

91651B0616

main91651-B0616

33 parts on this diagram · 8 diagrams in section
