STANDARD TOOL

09110JACK ASSY

main09110-44010iANH1#,MNH1#200205-200504

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iANH1#,MNH1#200205-200504

09116LEVER, JACK HANDLE

main09116-60010iANH1#,MNH1#200205-200504

09120BAG, TOOL

main09120-12011iANH1#,MNH1#200205-200504

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

mainC6494-22010

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iANH1#,MNH1#200205-200804

09184STOPPER, WHEEL

main09184-00010

51960HOOK ASSY, FRONT

main51960-58010iANH1#,MNH1#200205-200706

sub51960-58011

main51960-58011iANH1#,MNH1#200707

sub51960-26020

64771FCOVER, SPARE WHEEL

main64771-44010iANH1#,MNH1#200205-200804

C6487TOOL, TIRE BEAD REMOVE

mainC6487-22040

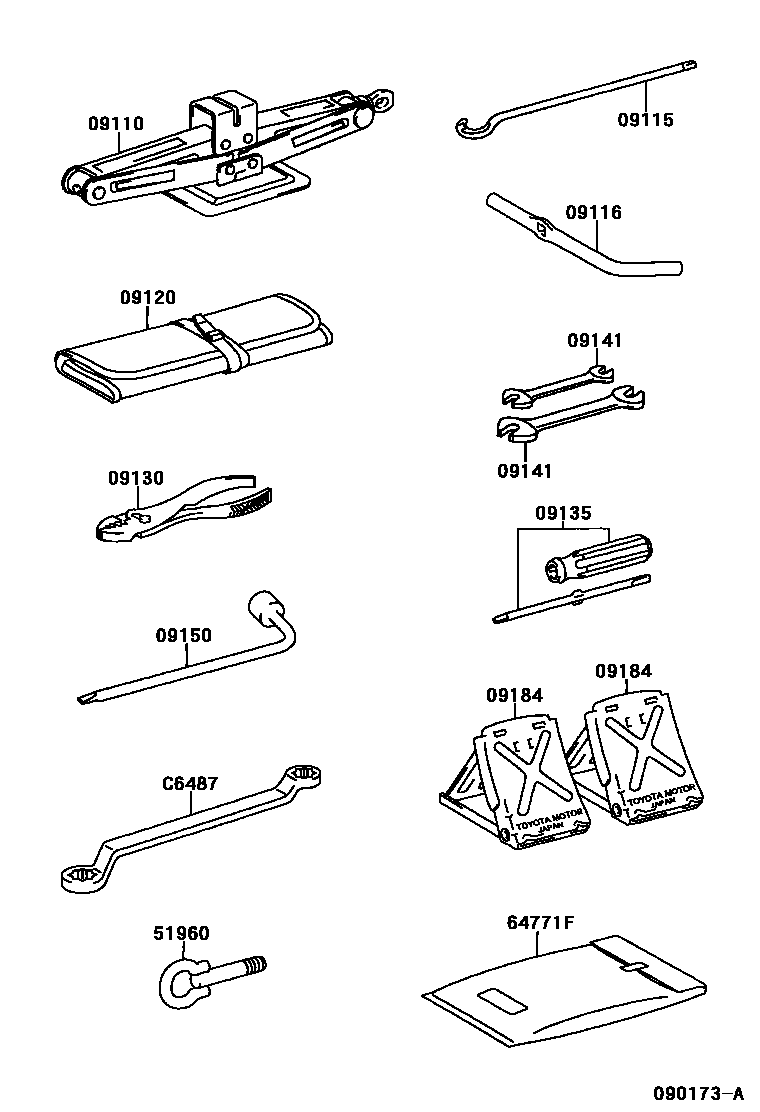

12 parts on this diagram · 1 diagram in section
