METER

0001 1������-�,��(���-�) 0002 1������-�,��(���-�) 0003 1���������-� 0004 1��������,��(�����) 0006 1����������� 0008 1����� & ����(��������,��(����0009 1����� & ����(��������,��(����0010 1����� & ����(�����������) 0011 1����� & ����(��������) 0013 1����� & ����(�����������) 0015 1����,���� & ��� 0016 1����

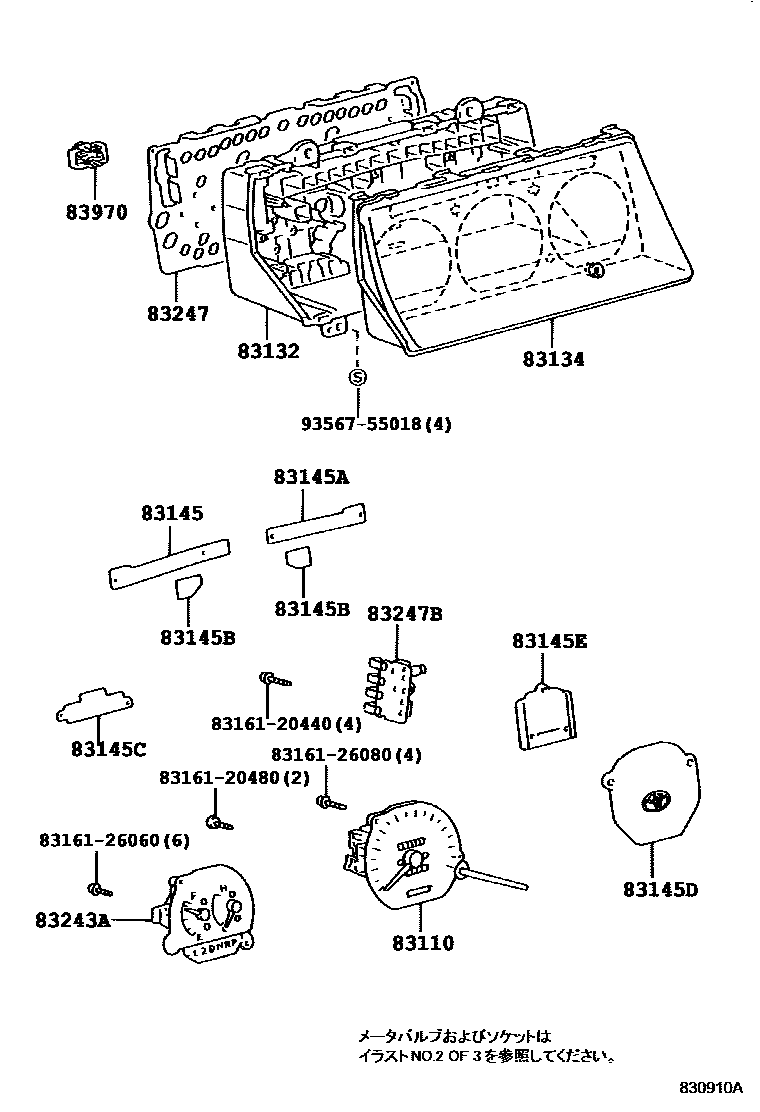

83110SPEEDOMETER ASSY

main83110-26310iKCH12199508-199708

main83220-26070iKCH10,16..G199508-199708

main83220-26080iRCH11..G199508-199708

main83220-26090iKCH10,16..Q199508-199708

main83220-26100iRCH11..Q199508-199708

main83220-26120iKCH1#,VCH1#,2#..DX,G199708-200501

main83220-26160iVCH1#..Q199708-200205

main83220-26160iVCH1#..G199804-199907

main83220-26170iKCH1#..G199804-199907

main83220-26170iKCH1#199708-200205

main83220-26300iKCH1#,VCH1#..4D200002-200205

83132CASE, COMBINATION METER

main83841-26150iKCH12199508-199708

main83841-26160iKCH10,16,RCH11..G199508-199708

main83841-26200iKCH10,16,RCH11..Q199508-199708

main83841-26510iKCH1#,VCH1#199708-200205

main83841-26510iKCH1#..G199804-199907

main83841-26520iVCH1#..G199804-199907

main83841-26520iVCH1#..Q199708-199907

main83841-26600iKCH1#,VCH1#,2#..DX,G199708-200501

83134COVER, COMBINATION METER, NO.1

main83134-26140iKCH1#,RCH11..DX,G199508-199708

main83821-26200iKCH10,16,RCH11..Q199508-199708

main83821-26300iVCH1#,2#..4D199907-200501

main83821-26300iKCH1#,RCH11,VCH1#..G199708-199907

main83821-26680iKCH1#,VCH1#199708-200205

main83821-26680iKCH1#,VCH1#..G199804-199907

main83822-26300iKCH1#,VCH1#,2#..4D199910-199912

83145LENS, METER, NO.1

main83831-26150iKCH1#,RCH11..DX,G199508-199708

main83831-26510iKCH1#..G199804-199907

main83831-26510iKCH1#..Q199708-199907

main83831-26520iVCH1#..Q199708-199907

main83831-26520iVCH1#..G199804-199907

main83831-26600iKCH1#,VCH1#,2#..DX,G199708-200501

main83833-26200iKCH10,16,RCH11..Q199508-199708

83145ALENS, METER, NO.2

main83145-26220iKCH1#..DX,G199508-199708

main83145-26260iRCH11..G199508-199708

main83831-26610iVCH1#,2#..DX,G199708-200501

main83832-26600iKCH1#..G199708-200205

main83834-26200iKCH10,16,RCH11..Q199508-199708

83145BLENS, METER, NO.3

main83145-2B460iKCH1#,RCH11..DX,G199508-199708

main83833-26010iKCH10,16,RCH11..Q199508-200501

83145CLENS, METER, NO.4

main83145-26240iKCH1#,RCH11..DX,G199508-199708

main83831-26200iKCH10,16,RCH11..Q199508-199708

main83832-26390iKCH1#,VCH1#,2#..DX,G199708-200501

83145DLENS, METER, NO.5

main83145-26500iKCH12199508-199708

83145ELENS, METER, NO.6

main83166-26020iKCH12199508-199708

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-26150iKCH12199508-199708

main83882-26160iKCH10,16,RCH11..G199508-199708

main83882-26200iKCH10,16,RCH11..Q199508-199708

main83882-26600iKCH1#,VCH1#,2#..DX,G199708-200501

main83882-2F400iKCH1#,VCH1#..4D200002-200205

83247PLATE, METER CIRCUIT

main83861-26150iKCH12199508-199708

main83861-26160iKCH10,16..G199508-199708

main83861-26190iRCH11..G199508-199708

main83861-26200iKCH10,16..Q199508-199708

main83861-26220iRCH11..Q199508-199708

main83861-26510iKCH16..G199804-199907

main83861-26510iKCH16..Q199708-199907

main83861-26520iVCH1#..G199804-199907

main83861-26520iVCH1#..Q199708-199907

main83861-26600iKCH1#..G199708-199907

main83861-26680iKCH10..Q199708-199907

main83861-26680iKCH10..G199804-199907

main83861-26760iKCH1#..G199907-200205

main83861-26770iVCH1#..G199708-199907

main83861-26800iRCH11199708-199804

main83861-2F220iVCH1#,2#..DX,G199907-200501

main83861-2F350iKCH1#199907-200205

main83861-2F370iVCH1#199907-200205

83247BPLATE, METER CIRCUIT, NO.2

main83149-26860iKCH1#,RCH11..DX,G199508-199708

main83862-26510iKCH1#,VCH1#..G199804-199907

main83862-26510iKCH1#,VCH1#..Q199708-199902

main83862-26680iKCH1#,VCH1#199902-200205

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iKCH1#,RCH11..DX,G199508-199708

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120480CASE, COMBINATION METER MIRROR, NO.1

main83161-20480

8316126060CASE, COMBINATION METER MIRROR, NO.1

main83161-26060

8316126080CASE, COMBINATION METER MIRROR, NO.1

main83161-26080

9356755018

main93567-55018

18 parts on this diagram · 12 diagrams in section
