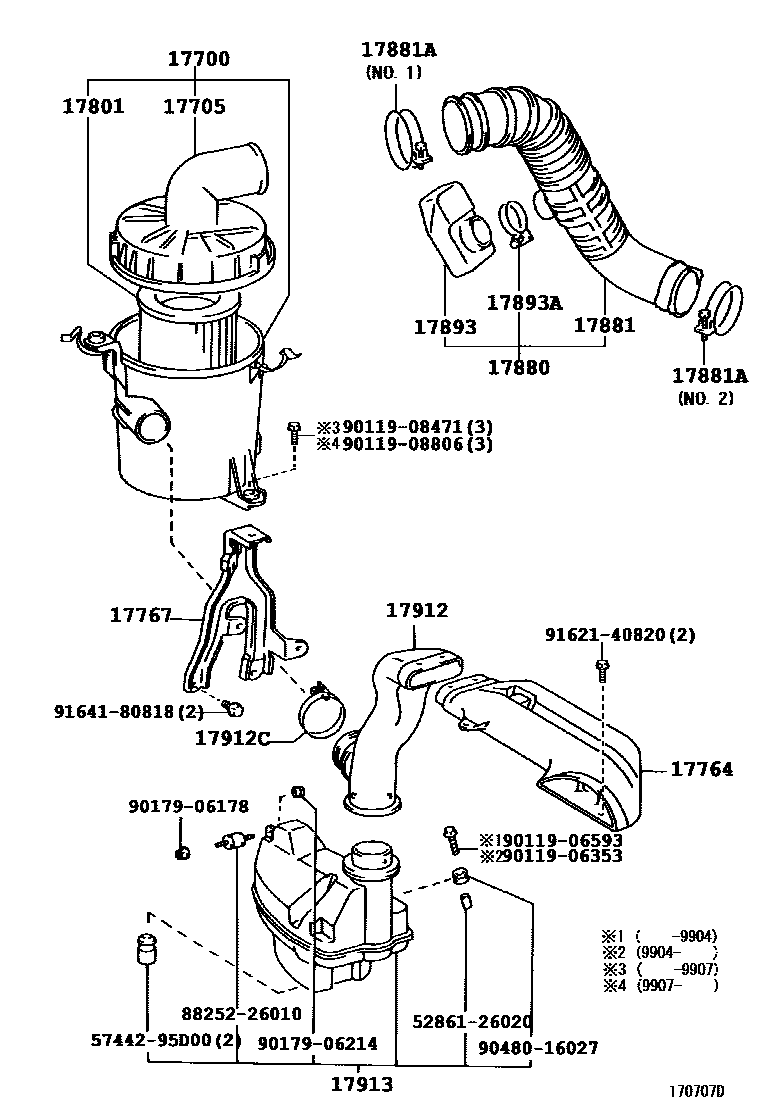

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-62090i5VZFE..VCH1#199708-199801

main17700-62091i5VZFE..VCH1#,2#199801-200501

main17700-67100i1KZTE..KCH1#199508-199802

main17700-67101i1KZTE..KCH1#199802-199907

main17700-67102i1KZTE..KCH1#199907-200205

main17700-75100i3RZFE..RCH11199508-199802

main17700-75101i3RZFE..RCH11199802-199804

17705CAP SUB-ASSY, AIR CLEANER

main17705-54340i1KZTE..KCH1#199907-200205

main17705-62070i5VZFE..VCH1#199708-200501

main17705-75070i1KZTE..KCH1#199508-199907

main17705-75080i3RZFE..RCH11199508-199802

sub17705-75081

main17705-75081i3RZFE..RCH11199802-199804

17764DUCT, AIR CLEANER

main52811-26030i3RZFE..RCH11199508-200205

main52811-26050i5VZFE..VCH1#,2#199708-200501

17767BRACKET, AIR CLEANER

main17771-54100i3RZFE..RCH11199508-200501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-54140i3RZFE..RCH11199508-199804

main17801-67020i5VZFE..VCH1#199508-200501

17880HOSE ASSY, AIR CLEANER

main17880-67010i1KZTE..KCH1#199508-200205

17881HOSE, AIR CLEANER, NO.1

main17881-67050i1KZTE..KCH1#199508-200205

main17881-75060i3RZFE..RCH11199508-199804

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90467-58002i1KZTE..KCH1#199508-200205

main96111-10800i5VZFE..VCH1#,2#199708-200501

main96111-10850i1KZTE..KCH1#199508-200205

main96111-10900i3RZFE..RCH11199508-199804

17893RESONATOR, INTAKE AIR

main17893-67010i1KZTE..KCH1#199508-200205

17893ACLAMP, HOSE

main96111-10560i1KZTE..KCH1#199508-200205

17912DUCT, COOL AIR INTAKE, NO.2

main52812-26040i3RZFE..RCH11199508-200205

main52812-26070i5VZFE..VCH1#199708-200501

17912CCLAMP, COOL AIR INTAKE DUCT, NO.2

main96111-10830i5VZFE..VCH1#199508-200501

17913DUCT, COOL AIR INTAKE, NO.3

main52830-26020i1KZTE..KCH1#199508-200205

main52830-26040i5VZFE..VCH1#,2#199708-200501

5286126020COLLAR, COOL AIR INTAKE

main52861-26020

5744295D00PLUG, STEP PANEL HOLE

main57442-95D00

8825226010CUSHION, VACUUM PUMP

main88252-26010

9011906353

main90119-06353

9011906593

main90119-06593

9011908471

main90119-08471

9011908806

main90119-08806

9017906178

main90179-06178

9017906214

main90179-06214

9048016027

main90480-16027

9162140820

main91621-40820

9164180818

main91641-80818

25 parts on this diagram · 4 diagrams in section
