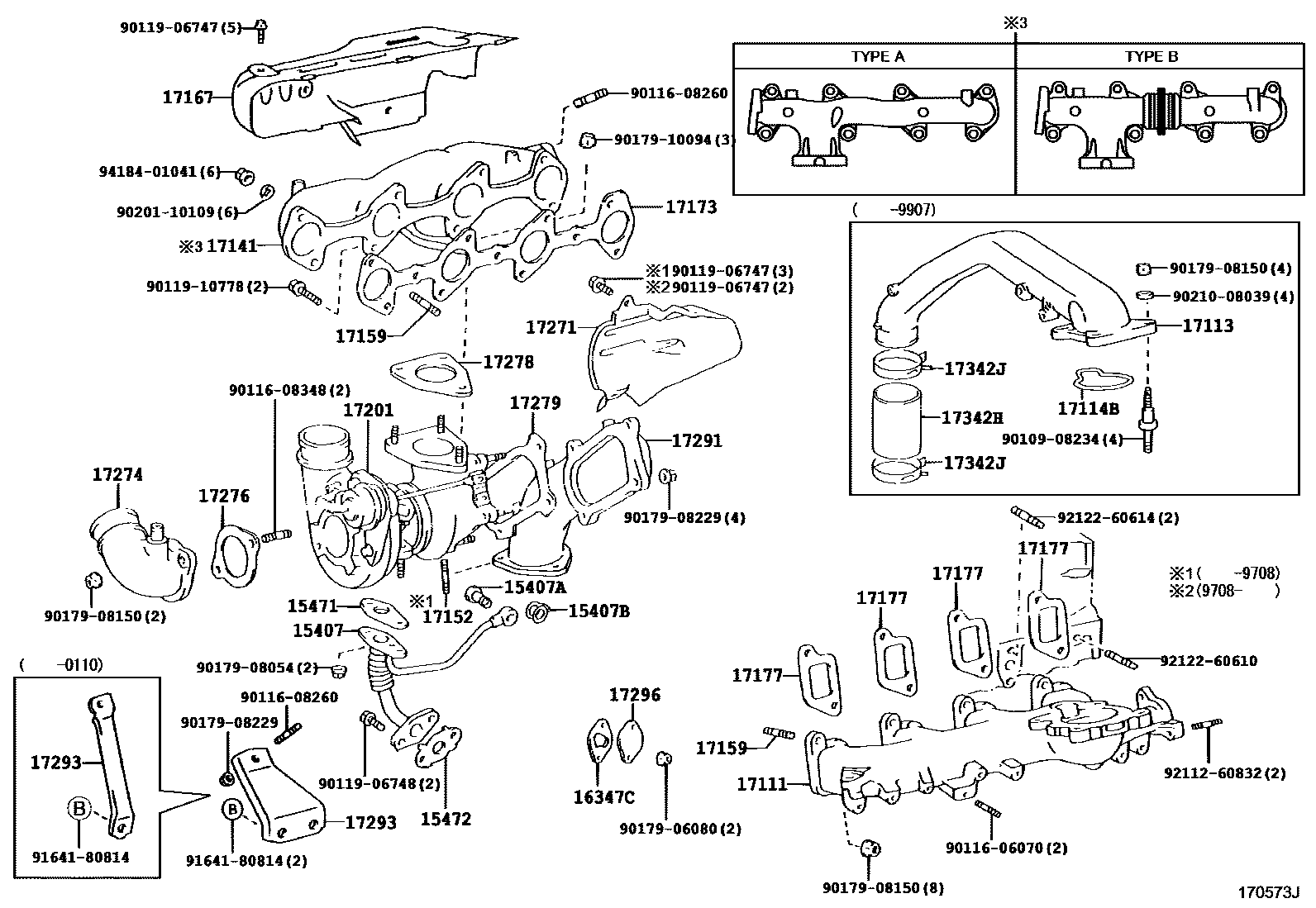

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
sub15472-30010
16347CGASKET(FOR TURBO WATER PIPE)
17113PIPE, INTAKE
17114BGASKET, INTAKE FLANGE
17141MANIFOLD, EXHAUST
sub17141-75052
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17201TURBOCHARGER SUB-ASSY
17271INSULATOR, TURBO, NO.1
17274ELBOW, COMPRESSOR INLET
17276GASKET, COMPRESSOR INLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17291ELBOW, TURBINE OUTLET
17293STAY, TURBOCHARGER
17296PLATE, BEARING HOUSING, SIDE
17342JCLIP, HOSE(FOR INTAKE PIPE)
9010908234
main90109-08234
9011606070
main90116-06070
9011608260
main90116-08260
9011608348
main90116-08348
9011906747
main90119-06747
9011906748
main90119-06748
9011910778
main90119-10778
9017906080
main90179-06080
9017908054
main90179-08054
9017908150
main90179-08150
9017908229
main90179-08229
9017910094
main90179-10094
9020110109
main90201-10109
9021008039
main90210-08039
9164180814
main91641-80814
9211260832
main92112-60832
9212260610
main92122-60610
9212260614
main92122-60614
9418401041
main94184-01041
45 parts on this diagram · 6 diagrams in section
