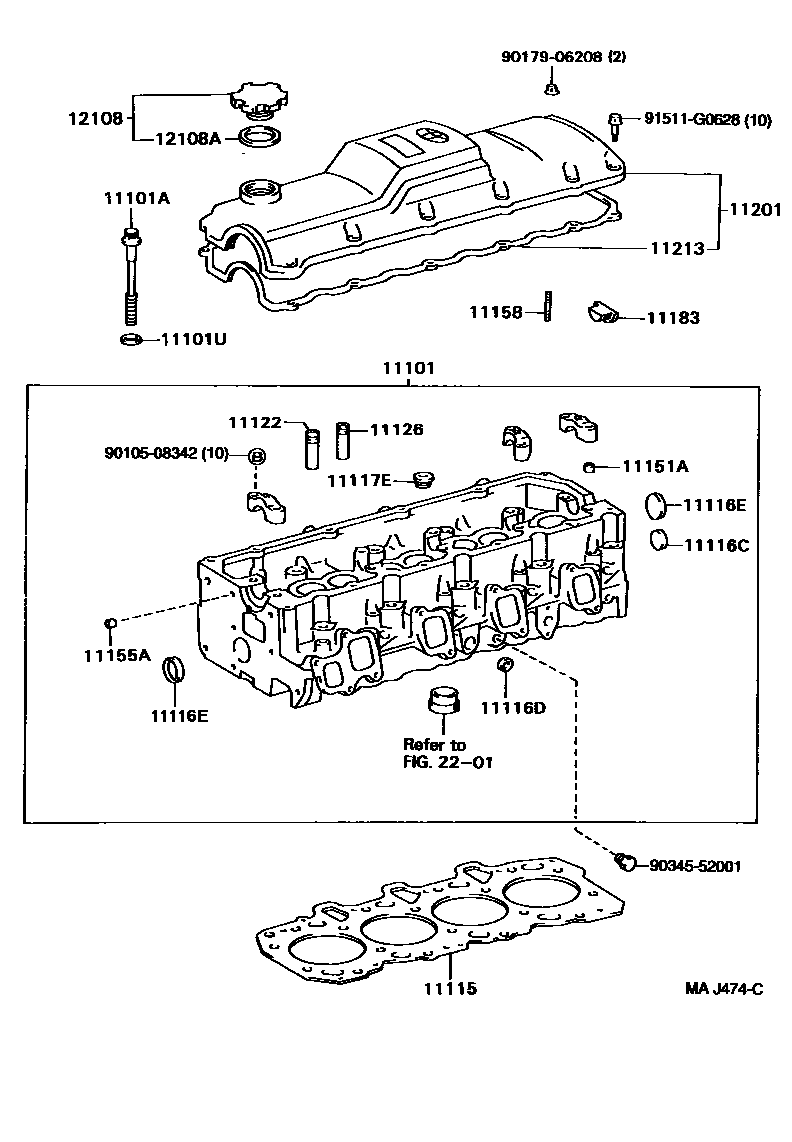

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-69126i1KZTE..KCH1#199508-199905

sub11101-69128

sub11176-67011

sub12281-67070

sub12282-67030

sub90119-10907

sub91512-81025

sub91552-81020

sub91651-61016

main11101-69127i1KZTE..KCH1#199905-199907

sub11101-69128

sub11176-67011

main11101-69135i5VZFE..VCH1#,2#199708-200208

sub11101-69136

main11101-69136i5VZFE..VCH2#200208-200501

main11101-69166i1KZTE..KCH1#199907-199909

sub11101-69167

sub11176-67011

main11101-69175i1KZTE..KCH1#199909-200205

main11101-79105i3RZFE..RCH11199508-199704

sub11101-79106

main11101-79106i3RZFE..RCH11199704-199804

sub11101-79275

sub11444-75030

sub91511-A0612

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02077i5VZFE..VCH1#199708-200501

main90910-02091i3RZFE..RCH11199508-199804

sub90910-02187

main90910-02112i1KZTE..KCH1#199508-200205

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023i1KZTE..KCH1#199508-200205

11115GASKET, CYLINDER HEAD

main11115-62071i5VZFE..VCH1#199708-199901

main11115-62080i5VZFE..VCH1#199901-200501

sub11115-62081

main11115-67020-01i1KZTE..KCH1#199508-199509

sub11115-67040

main11115-67020-03i1KZTE..KCH1#199508-199509

sub11115-67040

main11115-67020-05i1KZTE..KCH1#199508-199509

sub11115-67040

main11115-67040-01i1KZTE..KCH1#199509-200205

sub11115-67050

main11115-67040-03i1KZTE..KCH1#199509-199512

sub11115-67050

main11115-67040-05i1KZTE..KCH1#199509-200205

sub11115-67050

main11115-67050-03i1KZTE..KCH1#199512-200205

main11115-75030i3RZFE..RCH11199508-199804

sub11115-75031

11116GASKET, CYLINDER HEAD, NO.2

main11116-62071i5VZFE..VCH1#199708-199901

main11116-62080i5VZFE..VCH1#,2#199901-200501

sub11116-62081

11116CPLUG, TIGHT, NO.3

main96411-63000i1KZTE..KCH1#199508-200205

11116DPLUG, TIGHT, NO.4

main96411-62000i1KZTE..KCH1#199508-200205

11116EPLUG, TIGHT, NO.5

main96411-63500i1KZTE..KCH1#199508-200205

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-22008i1KZTE..KCH1#199508-200205

main90341-24011i5VZFE..VCH1#,2#199708-200501

main90341-27006i3RZFE..RCH11199508-199804

11122BUSH, INTAKE VALVE GUIDE

main11122-16010i5VZFE..VCH1#,2#199704-200501

sub11122-16020

main11122-16020i3RZFE..RCH11199508-199907

main11122-67020i1KZTE..KCH1#199508-200205

main11123-16010i3RZFE..RCH11199704-200501

main11123-16020i5VZFE..VCH1#199508-199907

main11123-67020i1KZTE..KCH1#199508-200205

11126BUSH, EXHAUST VALVE GUIDE

main11122-16010i5VZFE..VCH1#,2#199907-200501

sub11122-16020

main11122-16020i5VZFE..VCH1#199708-199907

main11122-67020i1KZTE..KCH1#199508-200205

main11123-16010i5VZFE..VCH1#,2#199907-200501

main11123-16020i5VZFE..VCH1#199708-199907

main11123-67020i1KZTE..KCH1#199508-200205

main11126-50040i3RZFE..RCH11199508-199704

main11126-50050i3RZFE..RCH11199704-199804

main11127-50040i3RZFE..RCH11199508-199704

main11127-50050i3RZFE..RCH11199704-199804

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-10006i3RZFE..RCH11199508-199804

main90253-11021i1KZTE..KCH1#199508-200205

11155APIN, RING W/HEAD

main90253-10004i1KZTE..KCH1#199508-200501

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06149i1KZTE..KCH1#199508-200205

11183PLUG, SEMICIRCULAR

main11183-20010i5VZFE..VCH1#,2#200009-200501

main11183-50010i3RZFE..RCH11199508-199804

main11183-54020i1KZTE..KCH1#199508-199909

main11183-62010i5VZFE..VCH1#199708-200008

main11183-67020i1KZTE..KCH1#199910-200205

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-62040i5VZFE..VCH1#,2#199708-200501

main11201-75020i3RZFE..RCH11199508-199804

main11210-67020i1KZTE..KCH1#199508-199907

main11210-67030i1KZTE..KCH1#199907-200205

sub11210-67031

11213GASKET, CYLINDER HEAD COVER

main11213-62020i5VZFE..VCH1#199708-200501

main11213-67010i1KZTE..KCH1#199508-200205

main11213-75030i3RZFE..RCH11199508-199804

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i1KZTE..KCH1#199508-200501

main12180-65011i3RZFE..RCH11199508-199804

12108AGASKET(FOR OIL FILLER CAP)

main90430-37004i1KZTE..KCH1#199508-200501

main90430-37140i3RZFE..RCH11199508-199804

2201

9010508342

main90105-08342

9017906208

main90179-06208

9034552001

main90345-52001

91511G0628

main91511-G0628

24 parts on this diagram · 3 diagrams in section
