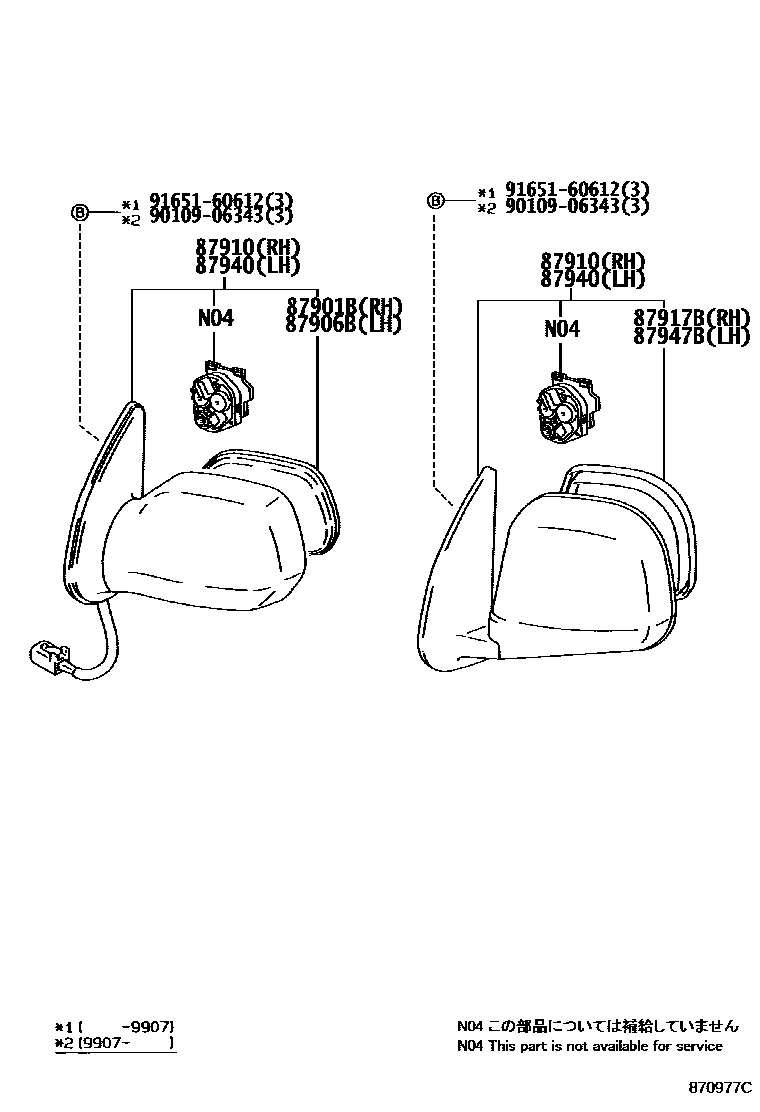

MIRROR

0001 1������ 0002 1������ & ���������

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-26240iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main87931-26250iKCH4#..E;LXH4#..G199704

main87931-26280iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main87931-26290iKCH4#..E199704-199907

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-26290iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main87961-26300iKCH4#..E;LXH4#..G199704

main87961-26330iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main87961-26340iKCH4#..E199704-199907

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-26240-A0iKCH4#,RCH41,47..G,STD199704-199907

main87910-26240-A1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87910-26240-B0iKCH4#,RCH41,47..STD,WINT199704-199907

main87910-26240-B1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87910-26240-C0iKCH4#,RCH41,47..G,STD199804-199907

main87910-26240-G0iKCH4#,RCH41,47..STD199804-199907

main87910-26240-G1iKCH4#,RCH41,47..G,STD199704-199804

main87910-26240-J0iKCH4#,RCH41,47..STD199704-199907

main87910-26240-K0iKCH4#,RCH41,47..WINT199704-199907

main87910-26241-A0iKCH4#,RCH41,47..V200004-200011

main87910-26241-A2iKCH4#,RCH41,47..WISTD200008-200204

main87910-26241-A3iKCH4#,RCH41,47..G,V199907-200102

main87910-26241-B1iKCH4#,RCH41,47..V,WISTD199907-200102

main87910-26241-B2iKCH4#,RCH41,47..WISTD200008-200204

main87910-26241-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD199907-200102

main87910-26241-J1iKCH4#,RCH41,47..V199907-200102

main87910-26242-A2iKCH4#,RCH41,47..V,WISTD200102

WHITE,056

main87910-26242-A3iKCH4#,RCH41,47..G,V200102

WHITE PM.,2FZ

main87910-26242-B1iKCH4#,RCH41,47..V,WISTD200102

SILVER ME.,199

main87910-26242-B2iKCH4#,RCH41,47..G,V200102

SILVER ME.,2FY

main87910-26242-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD200102

BLACK MC.,209; BLACK MC.,2GA

main87910-26242-J1iKCH4#,RCH41,47..V200102

DK.BLUE MC.,2GB

main87910-26250iKCH4#..E;LXH4#..G199704-199907

main87910-26251iLXH4#..G199907

main87910-26270iLXH4#,RCH42..STD199706-199907

main87910-26271iLXH4#,RCH42..STD199907

main87910-26280-A0iKCH4#,RCH41,47..G,STD199704-199907

main87910-26280-A1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87910-26280-B0iKCH4#,RCH41,47..STD,WINT199704-199907

main87910-26280-B1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87910-26280-C0iKCH4#,RCH41,47..G,STD199804-199907

main87910-26280-G0iKCH4#,RCH41,47..STD199804-199907

main87910-26280-G1iKCH4#,RCH41,47..G,STD199704-199804

main87910-26280-J0iKCH4#,RCH41,47..STD199704-199907

main87910-26280-K0iKCH4#,RCH41,47..WINT199704-199907

main87910-26281-A0iKCH4#,RCH41,47..V200004-200011

main87910-26281-A2iKCH4#,RCH41,47..WISTD200008-200204

main87910-26281-A3iKCH4#,RCH41,47..G,V199907-200102

main87910-26281-B1iKCH4#,RCH41,47..V,WISTD199907-200102

main87910-26281-B2iKCH4#,RCH41,47..V199912-200204

main87910-26281-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD199907-200102

main87910-26281-J1iKCH4#,RCH41,47..V199907-200102

main87910-26282-A2iKCH4#,RCH41,47..V,WISTD200102

main87910-26282-A3iKCH4#,RCH41,47..G,V200102

main87910-26282-B1iKCH4#,RCH41,47..V,WISTD200102

main87910-26282-B2iKCH4#,RCH41,47..G,V200102

main87910-26282-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD200102

main87910-26282-J1iKCH4#,RCH41,47..V200102

main87910-26290iKCH4#..E199704-199907

main87910-28280-C0iKCH4#,RCH41,47..WISTD199804-199908

87917BMIRROR, OUTER REAR VIEW, RH

main87917-26270iLXH4#,RCH42..STD199706

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-26290-A0iKCH4#,RCH41,47..G,STD199704-199907

main87940-26290-A1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87940-26290-B0iKCH4#,RCH41,47..STD,WINT199704-199907

main87940-26290-B1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87940-26290-C0iKCH4#,RCH41,47..G,STD199804-199907

main87940-26290-G0iKCH4#,RCH41,47..G199704-199907

main87940-26290-G1iKCH4#,RCH41,47..G,STD199704-199804

main87940-26290-J0iKCH4#,RCH41,47..STD199704-199907

main87940-26290-K0iKCH4#,RCH41,47..WINT199704-199907

main87940-26291-A0iKCH4#,RCH41,47..V200004-200011

main87940-26291-A2iKCH4#,RCH41,47..V,WISTD199907-200102

main87940-26291-A3iKCH4#,RCH41,47..G,V199907-200102

main87940-26291-B1iKCH4#,RCH41,47..V,WISTD199907-200102

main87940-26291-B2iKCH4#,RCH41,47..WISTD200008-200204

main87940-26291-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD199907-200102

main87940-26291-J1iKCH4#,RCH41,47..V199907-200102

main87940-26292-A2iKCH4#,RCH41,47..V,WISTD200102-200205

WHITE,056

main87940-26292-A3iKCH4#,RCH41,47..G,V200102-200205

WHITE PM.,2FZ

main87940-26292-B1iKCH4#,RCH41,47..V,WISTD200102-200205

SILVER ME.,199

main87940-26292-B2iKCH4#,RCH41,47..G,V200102-200205

SILVER ME.,2FY

main87940-26292-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD200102-200205

BLACK MC.,209; BLACK MC.,2GA

main87940-26292-J1iKCH4#,RCH41,47..V200102-200205

DK.BLUE MC.,2GB

main87940-26300iKCH4#..E;LXH4#..G199704-199907

main87940-26301iLXH4#..G199907-200205

main87940-26320iLXH4#,RCH42..STD199706-199907

main87940-26321iLXH4#,RCH42..STD199907-200205

main87940-26330-A0iKCH4#,RCH41,47..G,STD199704-199907

main87940-26330-A1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87940-26330-B0iKCH4#,RCH41,47..STD,WINT199704-199907

main87940-26330-B1iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87940-26330-C0iKCH4#,RCH41,47..WINT; KCH4#,RCH41,47..WISTD199804-199908

main87940-26330-G0iKCH4#,RCH41,47..STD199704-199804

main87940-26330-G1iKCH4#,RCH41,47..G,STD199704-199804

main87940-26330-J0iKCH4#,RCH41,47..STD199704-199907

main87940-26330-K0iKCH4#,RCH41,47..WINT199704-199907

main87940-26331-A0iKCH4#,RCH41,47..V200004-200011

main87940-26331-A2iKCH4#,RCH41,47..V,WISTD199907-200102

main87940-26331-A3iKCH4#,RCH41,47..G,V199907-200102

main87940-26331-B1iKCH4#,RCH41,47..V,WISTD199907-200102

main87940-26331-B2iKCH4#,RCH41,47..WISTD200008-200204

main87940-26331-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD199907-200102

main87940-26331-J1iKCH4#,RCH41,47..V199907-200102

main87940-26332-A2iKCH4#,RCH41,47..V,WISTD200102-200205

main87940-26332-A3iKCH4#,RCH41,47..G,V200102-200205

main87940-26332-B1iKCH4#,RCH41,47..V,WISTD200102-200205

main87940-26332-B2iKCH4#,RCH41,47..G,V200102-200205

main87940-26332-C1iKCH4#,RCH41,47..G,V; KCH4#,RCH41,47..WISTD200102-200205

main87940-26332-J1iKCH4#,RCH41,47..V200102-200205

main87940-26340iKCH4#..E199704-199907

87947BMIRROR, OUTER REAR VIEW, LH

main87947-26320iLXH4#,RCH42..STD199706

9010906343

main90109-06343

9165160612

main91651-60612

8 parts on this diagram · 2 diagrams in section
