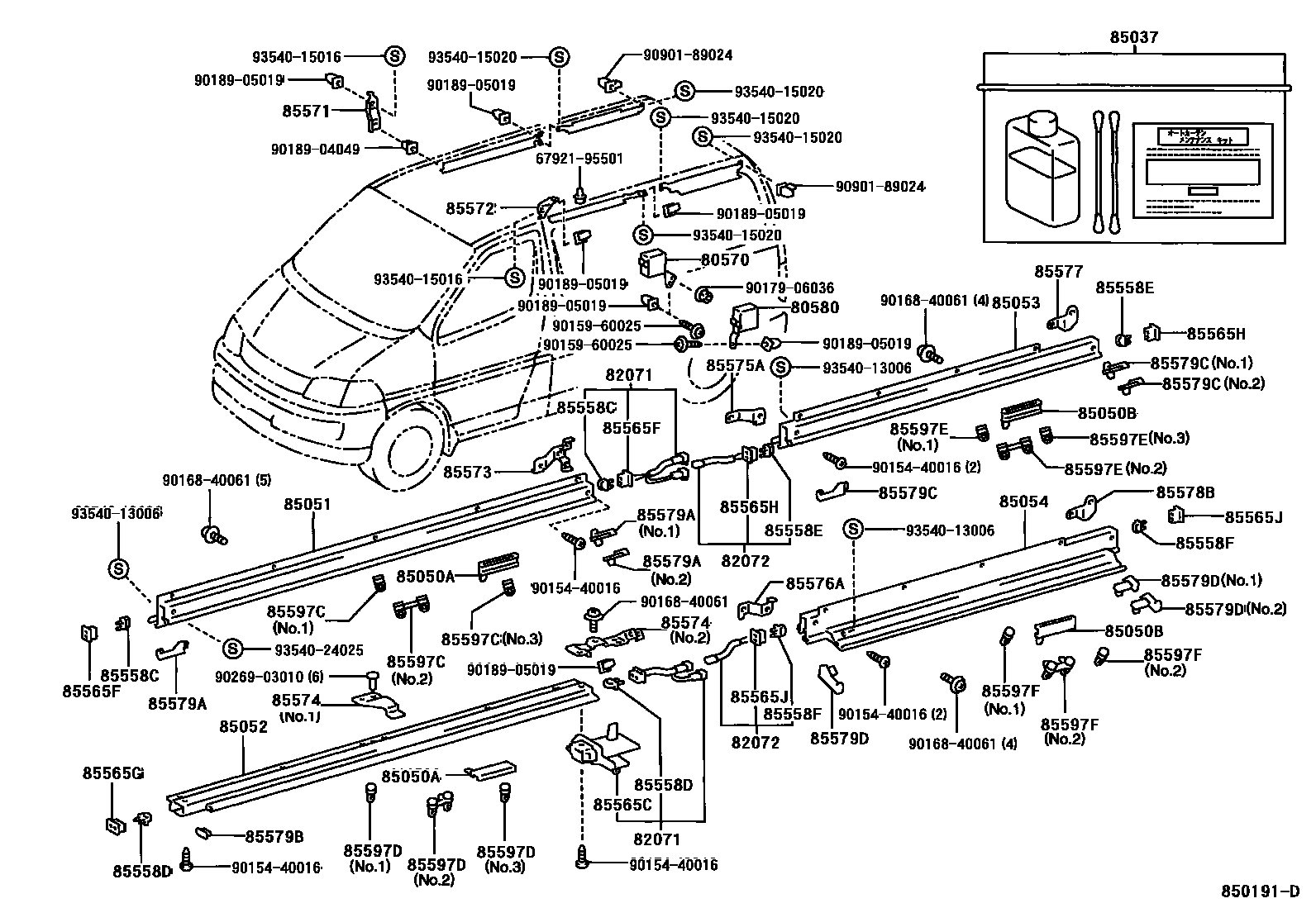

POWER CURTAIN

0001 1���� 0002 1��

80570RELAY ASSY, AUTO CURTAIN CONTROL, RH

main80570-26040iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

80580RELAY ASSY, AUTO CURTAIN CONTROL, LH

main80580-26030iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

82071WIRE SUB-ASSY, AUTO CURTAIN, NO.1

main82071-26030iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main82071-26040-B3iKCH4#,RCH41,47..STD199704-199907

LT.GRAY,TRIM6#

main82071-26040-B4iRCH47..STD;KCH4#,RCH41..STD,WINT199704-199804

LT.GRAY,TRIM1#

main82071-26040-B5iKCH4#,RCH41,47..G199704-199907

LT.GRAY,TRIM6#

main82071-26040-B6iKCH4#,RCH41,47..G199907

main82071-26040-B7iKCH4#,RCH41,47..V199907

main82071-26060-B0iRCH41,47..5D199804-199907

LT. GRAY,TRIM6#

main82071-26060-B1iKCH4#,RCH41,47..W07S199907

82072WIRE SUB-ASSY, AUTO CURTAIN, NO.2

main82072-26020iKCH4#,RCH41,47..4D..(G,STD,V,WINT)199804

main82072-26030iKCH4#,RCH41,47..G,STD,V,WINT199804

main82072-26040iKCH4#,RCH41,47..5D199804

85037PARTS SET, AUTO CURTAIN

main85037-28010iKCH4#,RCH41,47199704

85050ACOIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.1

main85050-26030iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85050-28030iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85050BCOIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.2

main85050-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85050-26030iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85051RAIL SUB-ASSY, AUTO CURTAIN, FRONT RH

main85051-26020iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85051-26040iKCH4#,RCH41,47..5D199804

85052RAIL SUB-ASSY, AUTO CURTAIN, FRONT LH

main85052-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85053RAIL SUB-ASSY, AUTO CURTAIN, REAR RH

main85053-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85053-26020iKCH4#,RCH41,47..5D199804

85054RAIL SUB-ASSY, AUTO CURTAIN, REAR LH

main85054-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85558CSTOPPER, AUTO CURTAIN COIL, FRONT NO.1 RH

main85558-95J00×2iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199710

85558DSTOPPER, AUTO CURTAIN COIL, FRONT NO.1 LH

main85558-95J00×2iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199710

85558ESTOPPER, AUTO CURTAIN COIL, FRONT NO.2 RH

main85558-95J00×2iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199710

85558FSTOPPER, AUTO CURTAIN COIL, FRONT NO.2 LH

main85558-95J00×2iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199710

85565CEND, AUTO CURTAIN RAIL, LH

main85567-26010-B3iKCH4#,RCH41,47..STD199704-199907

LT.GRAY,TRIM6#

main85567-26010-B4iKCH4#,RCH41,47..STD,WINT199804-199907

LT.GRAY,TRIM1#

main85567-26010-B5iKCH4#,RCH41,47..G199704-199907

LT.GRAY,TRIM6#

main85567-26010-B6iKCH4#,RCH41,47..G199907

ME. CHARCOAL,TRIM4#

main85567-26010-B7iKCH4#,RCH41,47..V199907

MD.CHARCOAL,TRIM4#

85565FEND, AUTO CURTAIN RAIL, FRONT, NO.1 RH

main85565-26040iKCH4#,RCH41,47..4D..(G,STD,V,WINT)199804

main85565-95J00iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85565-95J01iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199710

85565GEND, AUTO CURTAIN RAIL, FRONT, NO.1 LH

main85565-26010-B3iKCH4#,RCH41,47..STD199704-199907

LT.GRAY,TRIM6#

main85565-26010-B4iRCH47..STD;KCH4#,RCH41..STD,WINT199704-199804

LT.GRAY,TRIM1#

main85565-26010-B5iKCH4#,RCH41,47..G199704-199907

LT.GRAY,TRIM6#

main85565-26010-B6iKCH4#,RCH41,47..G199907

ME. CHARCOAL,TRIM4#

main85565-26010-B7iKCH4#,RCH41,47..V199907

MD.CHARCOAL,TRIM4#

85565HEND, AUTO CURTAIN RAIL, FRONT, NO.2 RH

main85565-26030iRCH41,47..5D;RCH41,47..(G,V)..W08S;KCH4#..(G,V)..(W07S,W08S)199804

main85565-95J01iRCH41,47..5D;RCH41,47..(G,V)..W08S;KCH4#..(G,V)..(W07S,W08S)199804

85565JEND, AUTO CURTAIN RAIL, FRONT, NO.2 LH

main85565-26040iRCH47..STD;KCH4#,RCH41..G,STD,WINT199710-199804

main85565-95J00iKCH4#,RCH41,47..G,STD,V,WINT199804

main85565-95J01iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199710

85571BRACKET, AUTO CURTAIN RAIL, NO.1 RH

main85571-26020iKCH4#,RCH41,47..4D..(G,STD,V,WINT)199804

main85571-26030iKCH4#,RCH41,47..5D199804

85572BRACKET, AUTO CURTAIN RAIL, NO.1 LH

main85572-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85573BRACKET, AUTO CURTAIN RAIL, NO.2 RH

main85573-26020iKCH4#,RCH41,47..4D..(G,STD,V,WINT)199804

main85573-26030iKCH4#,RCH41,47..5D199804

85574BRACKET, AUTO CURTAIN RAIL, NO.2 LH

main85574-26020iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85574-26030iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85575ABRACKET, AUTO CURTAIN RAIL, NO.3 RH

main85575-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85575-26020iKCH4#,RCH41,47..5D199804

85576ABRACKET, AUTO CURTAIN RAIL, NO.3 LH

main85576-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85577BRACKET, AUTO CURTAIN RAIL, NO.4 RH

main85577-26010iKCH4#,RCH41,47..4D..(G,STD,V,WINT)199804

main85577-26020iKCH4#,RCH41,47..5D199804

85578BBRACKET, AUTO CURTAIN RAIL, NO.4 LH

main85578-26010iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85579AEND, CURTAIN SUB RAIL, FRONT, RH

main85579-26010iLXH4#..G;KCH4#,RCH41,47..4D199704

main85579-26020iRCH41,47..5D199804

main85579-26030iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199710

main85579-26040iLXH4#..G;KCH4#,RCH41,47..4D199704

main85579-26070iRCH47..STD;KCH4#,RCH41..G,STD,WINT199710-199804

85579BEND, CURTAIN SUB RAIL, FRONT, LH

main85579-26020iKCH4#,RCH41,47..G,STD,V,WINT199804

85579CEND, CURTAIN SUB RAIL, REAR, RH

main85579-26010iLXH4#..G;KCH4#,RCH41,47199704

main85579-26030iLXH4#..G;KCH4#,RCH41,47199704-199710

main85579-26040iLXH4#..G;KCH4#,RCH41,47..4D199704

main85579-26060iKCH4#,RCH41,47..5D199804

main85579-26070iRCH47..STD;KCH4#,RCH41..G,STD,WINT199710-199804

85579DEND, CURTAIN SUB RAIL, REAR, LH

main85579-26010iLXH4#..G;KCH4#,RCH41,47199704

main85579-26050iLXH4#..G;KCH4#,RCH41,47199704

main85579-26080iRCH47..STD;KCH4#,RCH41..G,STD,WINT199710-199804

main85579-95J01iLXH4#..G;KCH4#,RCH41,47199704-199710

85597CRUNNER, AUTO CURTAIN, FRONT NO.1 RH

main85597-26031×11iKCH4#,RCH41,47..4D..(G,STD,V,WINT); KCH4#,RCH41,47..5D199804

main85597-26040iKCH4#,RCH41,47..G,STD,V,WINT199804

85597DRUNNER, AUTO CURTAIN, FRONT NO.1 LH

main85597-26031×11iKCH4#,RCH41,47..G,STD,V,WINT199804

main85597-26040iKCH4#,RCH41,47..G,STD,V,WINT199804

85597ERUNNER, AUTO CURTAIN, FRONT NO.2 RH

main85597-26031×10iKCH4#,RCH41,47..G,STD,V,WINT199804

main85597-26040iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

85597FRUNNER, AUTO CURTAIN, FRONT NO.2 LH

main85597-26031×10iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

main85597-26040iRCH47..STD;KCH4#,RCH41..G,STD,WINT199704-199804

6792195501RETAINER, FRONT DOOR SCUFF PLATE

main67921-95501

9015440016

main90154-40016

9015960025

main90159-60025

9016840061

main90168-40061

9017906036

main90179-06036

9018904049

main90189-04049

9018905019

main90189-05019

9026903010

main90269-03010

9090189024

main90901-89024

9354013006

main93540-13006

9354015016

main93540-15016

9354015020

main93540-15020

9354024025

main93540-24025

49 parts on this diagram · 2 diagrams in section
