OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

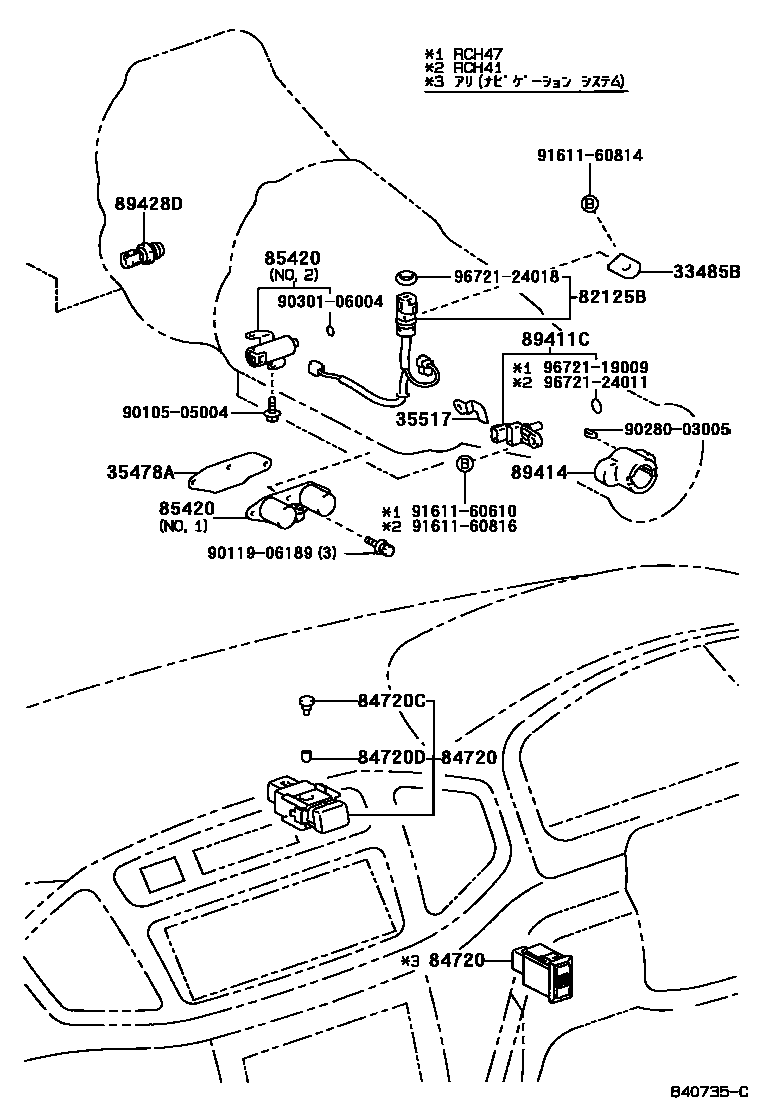

Parts diagram

33485BPLATE, TRANSMISSION WIRE

main33485-28010i199704-199907

main33485-30020i199704-199907

35478AGASKET, SHIFT CONTROL SOLENOID

main35478-30010i199704-199907

35517PLATE, TRANSMISSION WIRE LOCK

main35517-26010i199704-199907

main35517-30010i199706-199907

82125BWIRE, TRANSMISSION

main82125-22230i199907

main82125-28010i199704-199907

main82125-30400i199704-199907

main82125-60310i199907

84720SWITCH ASSY, PATTERN SELECT

main84720-20160i199804-199907

main84720-26030i199704-199907

main84720-26040i199907

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320i199704-199907

84720DCAP, PATTERN SELECT SWITCH

main84998-10280i199704-199907

85420SOLENOID ASSY, TRANSMISSION

main85420-21090×2i199809-199907

main85420-21100×2i199809-199907

main85420-22150i199907

main85420-22170i199907

main85420-30050i199704-199907

main85420-30070i199704-199907

main85420-30160i199706

main85420-30200×2i199704-199809

main85420-30220i199704-199809

main85420-30260i199809

main85420-30270i199809

89411CSENSOR, SPEED

main89411-28020i199704-199907

main89411-35030i199704-199907

main89411-50010×2i199907

89414ROTOR, SENSOR

main89414-26010i199907-200101

main89414-30011i199704-199907

main89414-30021i199704

main89414-30040i199907

main89414-35010i199704-199907

main89414-60020i200101

89428DSWITCH, TEMPERATURE, NO.2

main89428-60090i199704-199907

9010505004

main90105-05004

9011906189

main90119-06189

9028003005

main90280-03005

9030106004

main90301-06004

9161160610

main91611-60610

9161160814

main91611-60814

9161160816

main91611-60816

9672119009

main96721-19009

9672124011

main96721-24011

9672124018

main96721-24018

21 parts on this diagram · 4 diagrams in section
