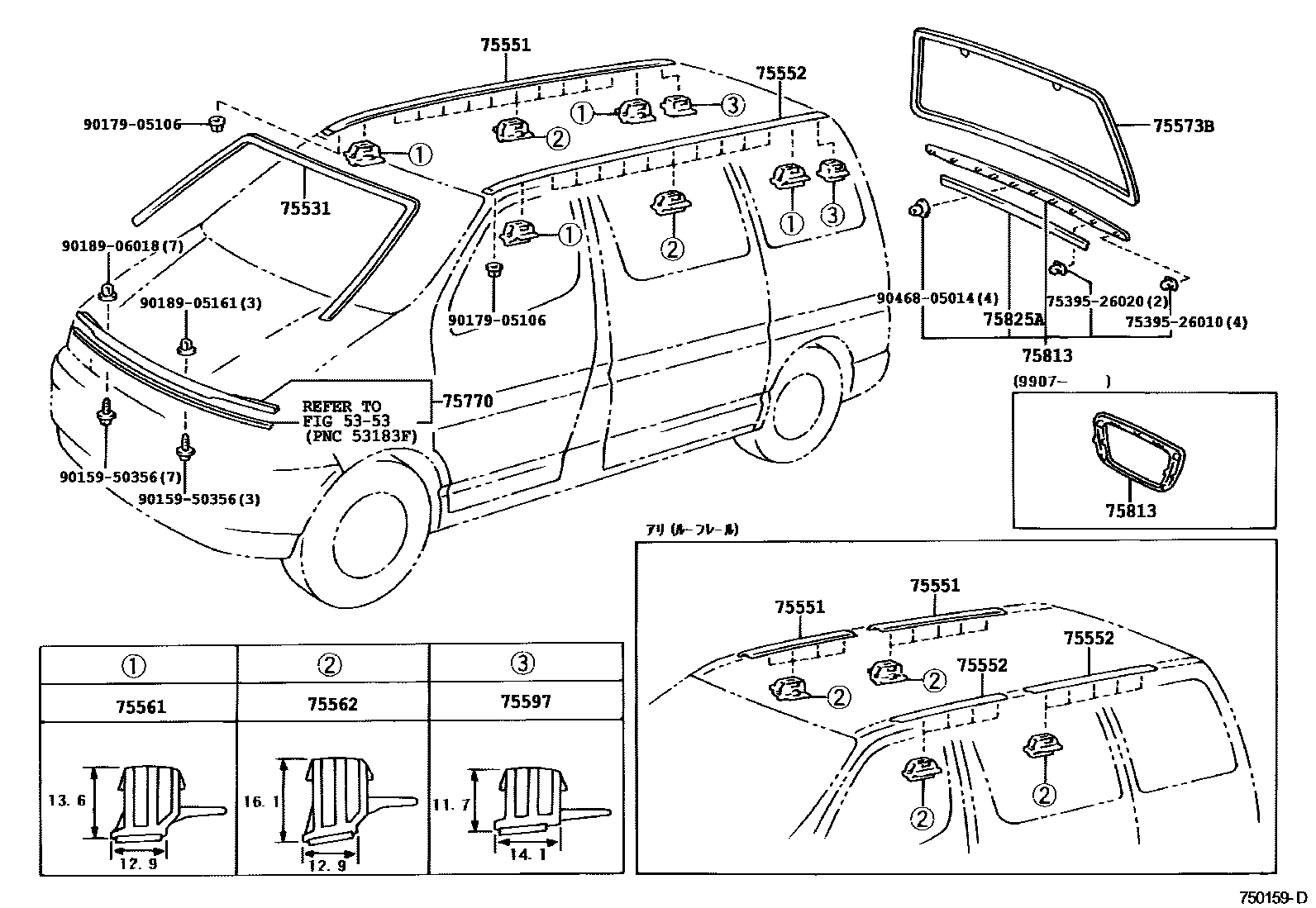

MOULDING

0001 1 0002 1

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-26040iKCH4#,LXH4#,RCH4#199704-199906

main75531-26041iKCH4#,LXH4#,RCH4#199906

main75531-26050iKCH4#,LXH4#,RCH4#199704-199906

main75531-26051iKCH4#,LXH4#,RCH4#199906

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-26021iKCH4#,RCH41,47..E,STD,V,WISTD199704

main75505-26030-A0iKCH4#,RCH41,47..G199704-199907

WHITE PM,2EB

main75505-26030-A1iRCH41,47..STD199804-199908

main75505-26030-B0iKCH4#,RCH41,47..WINT199804-199907

main75505-26030-C0iKCH4#,RCH41,47..G; KCH4#,RCH41,47..WINT199804-199907

main75505-26030-G0iKCH4#,RCH41,47..G199704-199907

LT GREEN M,2DJ

main75505-26030-G1iKCH4#,RCH41..G199704-199804

DK.GREEN M.M.,2DK

main75505-26040iKCH4#,RCH41,47..WINT199704-199907

main75505-26050iKCH4#,RCH41,47..WINT199704-199907

main75505-26060-A1iKCH4#,RCH41,47..G199907

WHITE PM.,2FZ

main75505-26060-B0iKCH4#,RCH41,47..G199907

SILVER ME.,2FY

main75505-26060-B3iKCH4#,RCH41,47..V199912-200204

main75505-26060-C0iKCH4#,RCH41,47..G199907

BLACK MC.,2GA

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-26021iKCH4#,RCH41,47..E,STD,V,WISTD199704-200205

main75506-26030-A0iKCH4#,RCH41,47..G199704-199907

WHITE PM,2EB

main75506-26030-A1iKCH4#,RCH41,47..WINT199804-199907

main75506-26030-B0iRCH41,47..STD199804-199908

main75506-26030-C0iKCH4#,RCH41,47..G; KCH4#,RCH41,47..WINT199804-199907

main75506-26030-G0iKCH4#,RCH41,47..G199704-199907

LT GREEN M,2DJ

main75506-26030-G1iKCH4#,RCH41..G199704-199804

DK.GREEN M.M.,2DK

main75506-26040iKCH4#,RCH41,47..WINT199704-199907

main75506-26050iKCH4#,RCH41,47..WINT199704-199907

main75506-26060-A1iKCH4#,RCH41,47..G199907-200108

WHITE PM.,2FZ

main75506-26060-A4iKCH4#,RCH41,47..G200108-200205

WHITE PM.,2FZ

main75506-26060-B0iKCH4#,RCH41,47..G199907-200108

SILVER ME.,2FY

main75506-26060-B3iKCH4#,RCH41,47..V199912-200204

main75506-26060-B5iKCH4#,RCH41,47..G200108-200205

SILVER ME.,2FY

main75506-26060-C0iKCH4#,RCH41,47..G199907-200108

BLACK MC.,2GA

main75506-26060-C2iKCH4#,RCH41,47..G200108-200205

BLACK MC.,2GA

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-26020×4iKCH4#,RCH41,47..WINT199804-199907

main75561-26021iKCH4#,RCH41,47199911

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-26020×20iKCH4#,RCH41,47..WINT199804-199907

main75562-26021iKCH4#,RCH41,47199911

75573BMOULDING, BACK WINDOW, OUTSIDE

main75573-26030iKCH4#,RCH41,47199704

main75573-26040iLXH4#,RCH42199706

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75597-26010×2iKCH4#,RCH41,47..WINT199804-199907

main75597-26020iKCH4#,RCH41,47..E,G,STD,V,WISTD199704-199911

main75597-26021iKCH4#,RCH41,47199911

75770MOULDING ASSY, HOOD, FRONT

main75770-26010iLXH4#,RCH42..STD199706-200205

main75770-26020-A0iKCH4#,RCH41,47..WINT199709

main75770-26020-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main75770-26020-B1iKCH4#,RCH41,47..WINT199804-199907

main75770-26020-C0iRCH41..STD199712-199804

BLACK,205

main75770-26020-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main75770-26030iKCH4#,RCH41,47..E,G,STD199704-199907

main75770-26040iLXH4#..G199706-200205

main75770-26070-A1iKCH4#,RCH41,47200004-200103

main75770-26080-A1iKCH4#,RCH41,47..WISTD199907-200001

WHITE,056

main75770-26080-A2iKCH4#,RCH41,47..WISTD200001-200205

WHITE,056

main75770-26080-B1iKCH4#,RCH41,47..WISTD199907-200001

SILVER ME,199

main75770-26080-B2iKCH4#,RCH41,47..WISTD200001-200205

SILVER ME.,199

main75770-26080-B3iKCH4#,RCH41,47..WISTD200008-200204

main75770-26080-C1iKCH4#,RCH41,47..WISTD199907-200001

BLACK MC.,209

main75770-26080-C2iKCH4#,RCH41,47..WISTD200001-200205

BLACK MC.,209

75813MOULDING, BACK DOOR

main75813-26010iKCH4#,RCH41,47..E,G,STD199704-199907

main75813-26020-A0iRCH47..WINT199709-199711

WHITE,040

main75813-26020-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main75813-26020-B1iKCH4#,RCH41,47..WINT199804-199907

main75813-26020-C0iRCH41..STD199712-199804

BLACK,205

main75813-26020-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main75813-26030iKCH4#,RCH41,47..G,STD199804-199907

main75813-26040-B0iKCH4#,RCH41..WINT199704-199804

main75813-26040-K0iKCH4#,RCH41,47..WINT199804-199907

main75813-26050iKCH4#,RCH41,47199907

main75813-26060-A0iKCH4#,RCH41,47..WISTD200008-200204

main75813-26060-B0iKCH4#,RCH41,47..WISTD200008-200204

75825APAD, BACK DOOR OUTSIDE MOULDING, UPPER

main75825-26010iKCH4#,RCH41,47199704-199907

main75825-26020iKCH4#,RCH41..G,STD,WINT199704-199804

7539526010CLIP, BACK DOOR MOULDING, NO.1

main75395-26010

7539526020CLIP, BACK DOOR MOULDING, NO.1

main75395-26020

9015950356

main90159-50356

9017905106

main90179-05106

9018905161

main90189-05161

9018906018

main90189-06018

9046805014

main90468-05014

18 parts on this diagram · 2 diagrams in section
