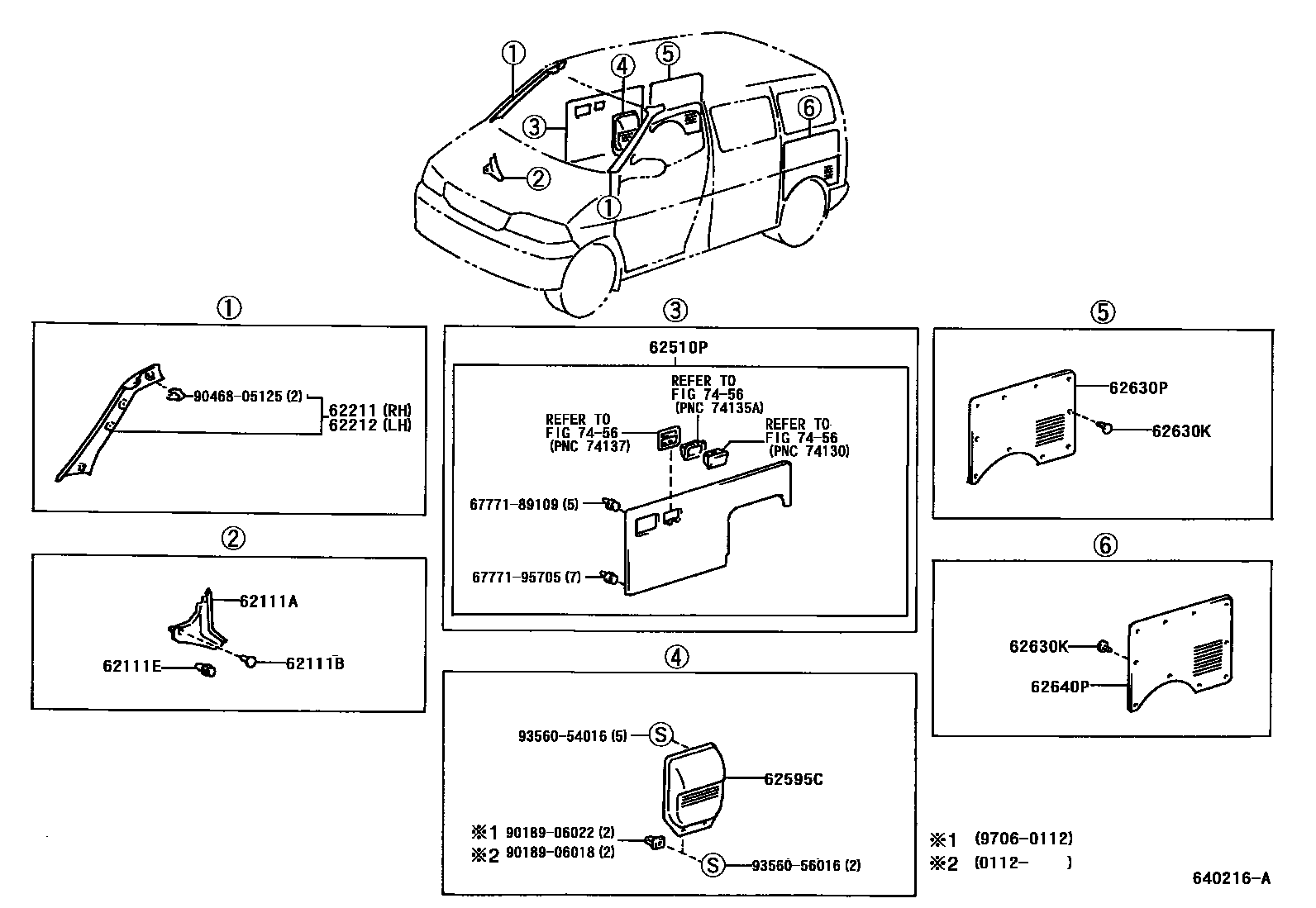

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-26010-B0iLXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD199704

BLUISH GRAY,TRIM1#

sub62111-26010

main62111-26010-E1iKCH4#,RCH41,47..G,V199907

ORCHID BROWN,TRIM4#

sub62111-26010

main62111-26010-G0iKCH4#,RCH41,47..G,STD199704-199907

DK.SAGE,TRIM6#

sub62111-26010

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05080-B0iLXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD199704

BLUISH GRAY,TRIM1#

main90467-05080-E2iKCH4#,RCH41,47..G,V199907

ORCHID BROWN,TRIM4#

main90467-05080-G0iKCH4#,RCH41,47..G,STD199704-199907

DK.SAGE,TRIM6#

62111ERETAINER, COWL SIDE TRIM

main90467-10147iLXH4#..G;KCH4#,RCH41,47199704

62211GARNISH, FRONT PILLAR, RH

main62211-26050-B0iKCH4#,RCH41,47..STD199704-199907

LT.GRAY,TRIM6#

sub62211-26050

main62211-26050-B1iLXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD199704

LT.GRAY,TRIM1#

sub62211-26050

main62211-26050-B2iKCH4#,RCH41,47..V199907

MD.CHARCOAL,TRIM4#

sub62211-26050

main62211-26060-B1iKCH4#,RCH41,47..G199704-199907

GRAY,TRIM6#

sub62211-26050

main62211-26060-B2iKCH4#,RCH41,47..G199907

ME. CHARCOAL,TRIM4#

sub62211-26050

main62211-26070-B0iLXH4#,RCH42..STD199706

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-26050-B0iKCH4#,RCH41,47..STD199704-199907

LT.GRAY,TRIM6#

sub62212-26050

main62212-26050-B1iLXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD199704

LT.GRAY,TRIM1#

sub62212-26050

main62212-26050-B2iKCH4#,RCH41,47..V199907

MD.CHARCOAL,TRIM4#

sub62212-26050

main62212-26060-B1iKCH4#,RCH41,47..G199704-199907

GRAY,TRIM6#

sub62212-26050

main62212-26060-B2iKCH4#,RCH41,47..G199907

ME. CHARCOAL,TRIM4#

sub62212-26050

main62212-26070-B0iLXH4#,RCH42..STD199706

LT.GRAY,TRIM1#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-26250-B0iLXH4#..4D..STD199907

BLUISH GRAY,TRIM1#

main62510-26250-B1iLXH4#..4D..STD199706-199907

LT.BLUISH GRAY,TRIM1#

main62510-26460-B0iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

main62510-26470-B0iLXH4#..G199706-199907

LT.BLUISH GRAY,TRIM1#

main62510-26470-B1iLXH4#..G199907

BLUISH GRAY,TRIM1#

main62510-26480-B0iLXH4#..4D..STD199706-199907

main62510-26480-B1iLXH4#..4D..STD199907

62595CBOARD, SIDE HEATER COVER, RH

main62595-26050-B0iKCH4#..E;LXH4#..4D199704-199907

LT.BLUISH GRAY,TRIM1#

sub62595-26050

main62595-26050-B1iLXH4#..4D199907

BLUISH GRAY,TRIM1#

sub62595-26050

62630KCLIP(FOR QUARTER TRIM REAR PANEL)

main90467-10034iRCH47..WINT199804-199805

main90467-10034-B1iKCH4#,RCH41..STD,WINT199704-199907

LT.BLUISH GRAY,TRIM1#

sub90467-10034

main90467-10034-E4iKCH4#,RCH41,47..G..W08S199907

ORCHID,TRIM4#

sub90467-10034

main90467-10034-G0iKCH4#,RCH41..G,STD199704-199907

SAGE,TRIM6#

sub90467-10034

main90467-10034-N8iLXH4#,RCH42..STD199706

CREAM YELLOW,TRIM1#

sub90467-10034

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-26660-B0iKCH4#,RCH41,47..STD,WINT199704-199907

LT.BLUISH GRAY,TRIM1#

sub62630-26660

main62630-26660-B1iKCH4#,RCH41,47..WISTD200008-200204

sub62630-26660

main62630-26660-E0iKCH4#,RCH41,47..V199907-200205

ORCHID,TRIM4#

sub62630-26660

main62630-26660-G0iKCH4#,RCH41,47..STD199704-199907

SAGE,TRIM6#

sub62630-26660

main62630-26670-B0iKCH4#,RCH41..STD,WINT199704-199907

main62630-26670-G0iKCH4#,RCH41,47..STD199704-199907

main62630-26680-B0iKCH4#,RCH41,47..STD,WINT199704-199907

main62630-26680-E0iKCH4#,RCH41,47..V199907-200205

main62630-26680-G0iKCH4#,RCH41,47..STD199704-199907

main62630-26690-B0iKCH4#,RCH41..STD,WINT199704-199907

main62630-26690-G0iKCH4#,RCH41,47..STD199704-199907

main62630-26700-G1iKCH4#,RCH41,47..4D..G199704-199907

main62630-26701-E0iKCH4#,RCH41,47..G..W08S199907-200205

ORCHID,TRIM4#

main62630-26710-G1iKCH4#,RCH41,47..4D..G199704-199907

main62630-26711-E0iKCH4#,RCH41,47..G..W08S199907-200205

main62630-26760-B0iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

main62630-26770-B0iLXH4#..G199706-199907

LT.BLUISH GRAY,TRIM1#

main62630-26770-B1iLXH4#..G199907-200205

BLUISH GRAY,TRIM1#

main62630-2F140-E0iKCH4#,RCH41,47..W07S199907-200205

ORCHID,TRIM4#

main62630-2F140-G0iRCH41,47..5D199804-199907

SAGE,TRIM6#

main62630-2F470-B0iKCH4#,RCH41,47..WISTD199907-200205

LT.BLUISH GRAY,TRIM1#

main62630-2F500-B0iRCH42199907-200205

main62631-26030iLXH4#,RCH42..STD199706-200205

sub62631-26031

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62632-26080iLXH4#,RCH42..STD199706-200205

sub62632-26081

main62640-26620-B0iKCH4#,RCH41,47..STD,WINT199704-199907

LT.BLUISH GRAY,TRIM1#

sub62640-26620

main62640-26620-B1iKCH4#,RCH41,47..WISTD200008-200204

sub62640-26620

main62640-26620-E0iKCH4#,RCH41,47..V199907-200205

ORCHID,TRIM4#

sub62640-26620

main62640-26620-G0iKCH4#,RCH41,47..STD199704-199907

SAGE,TRIM6#

sub62640-26620

main62640-26630-B0iKCH4#,RCH41,47..STD,WINT199704-199907

main62640-26630-E0iKCH4#,RCH41,47..V199907-200205

main62640-26630-G0iKCH4#,RCH41,47..STD199704-199907

main62640-26660-E0iKCH4#,RCH41,47..G199907-200205

ORCHID,TRIM4#

main62640-26660-G0iKCH4#,RCH41,47..G199704-199907

SAGE,TRIM6#

main62640-26670-B0iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

main62640-26680-B1iLXH4#..G199706-199907

LT.BLUISH GRAY,TRIM1#

main62640-26680-B2iLXH4#..G199907-200205

BLUISH GRAY,TRIM1#

main62640-26890-B0iKCH4#,RCH41,47..WINT199704-199907

main62640-2F010-B0iKCH4#,RCH41..WINT199704-199804

main62640-2F010-B0iKCH4#,RCH41,47..WINT199804-199907

main62640-2F160-B0iKCH4#,RCH41,47..STD199804-199907

main62640-2F160-E0iKCH4#,RCH41,47..V199907-200205

main62640-2F160-G0iKCH4#,RCH41,47..STD199804-199907

main62640-2F170-B0iKCH4#,RCH41,47..STD199804-199907

main62640-2F170-E0iKCH4#,RCH41,47..V199907-200205

main62640-2F170-G0iKCH4#,RCH41,47..STD199804-199907

main62640-2F280-B0iKCH4#,RCH41,47..WISTD199907-200205

LT.BLUISH GRAY,TRIM1#

main62640-2F310-B0iRCH42199907-200205

main62640-2F320-B0iKCH4#,RCH41,47..WISTD199907-200205

7456

6777189109WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89109

6777195705WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95705

9018906018

main90189-06018

9018906022

main90189-06022

9046805125

main90468-05125

9356054016

main93560-54016

9356056016

main93560-56016

18 parts on this diagram · 8 diagrams in section
