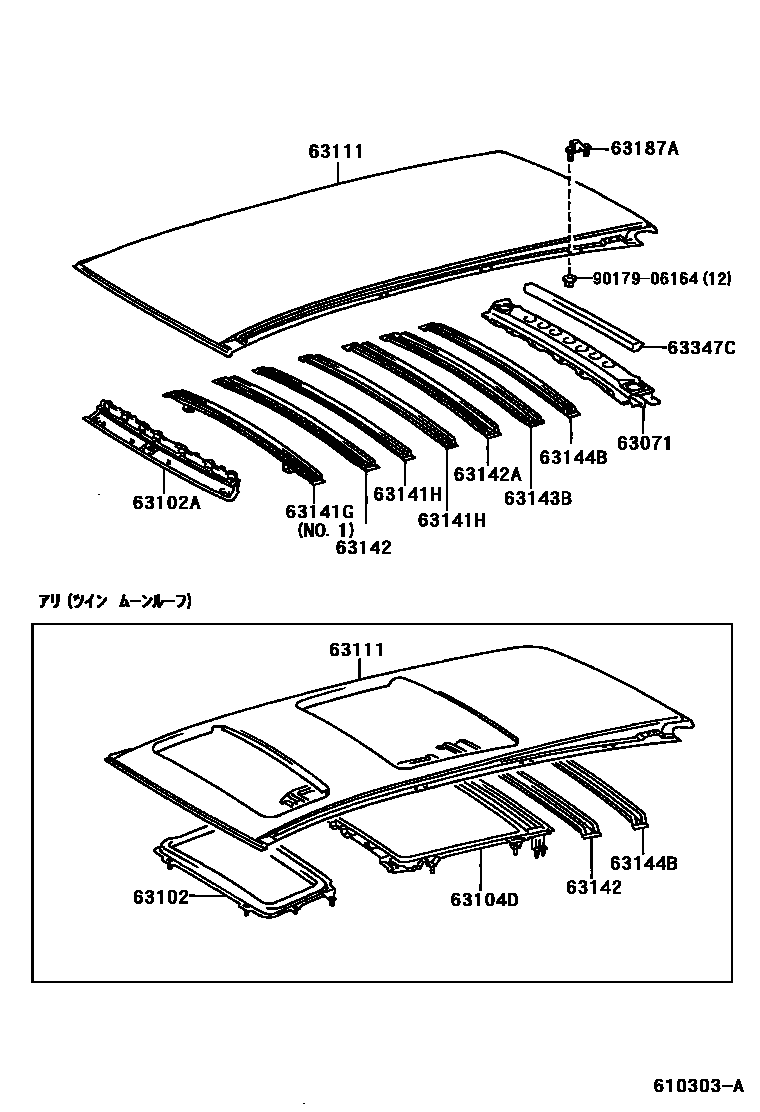

ROOF PANEL & BACK PANEL

0001 1 0002 1��(��� �-� �-�) 0003 1��(��� �-� �-�) 0004 1��(�-� �-�) 0005 1

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-26140iLXH4#,RCH42..STD199706

main63071-26170iLXH4#..G;KCH4#,RCH41,47..E,STD,V,WINT,WISTD199704

main63071-26180iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main63071-26240iRCH42199907

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-26100iKCH4#,RCH41,47199704

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-26110iLXH4#,RCH42..STD199706

main63102-26120iLXH4#..G;KCH4#,RCH41,47199704

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-26080iKCH4#,RCH41,47199704

63111PANEL, ROOF

main63111-26210iKCH4#,RCH41,47..WINT199804-199907

main63111-26220iKCH4#,RCH41,47..WINT199704-199907

main63111-26230iKCH4#,RCH41,47..WINT199704-199907

main63111-26240iKCH4#,RCH41,47..G,STD,V,WISTD199704

main63111-26250iLXH4#,RCH42199706

main63111-26260iKCH4#,RCH41..STD199704-199804

main63111-26270iKCH4#,RCH41..G,STD199704-199804

main63111-26280iKCH4#,RCH41..WINT199704-199804

main63111-26290iKCH4#,RCH41..WINT199704-199804

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-26150iKCH4#,RCH41,47..E,STD,V,WINT,WISTD199704

main63103-26180iLXH4#..G199907

main63103-26190iLXH4#..4D..STD199706

main63141-26130iLXH4#,RCH42..STD; LXH4#..4D..STD199907

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-26130iLXH4#,RCH42200111

main63141-26140iLXH4#,RCH42199706-200111

main63143-26080×2iKCH4#,RCH41,47..E,STD,V,WINT,WISTD199704

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-26070iKCH4#,RCH41,47..E,STD,V,WINT,WISTD199704

main63142-26080iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main63142-26090iLXH4#,RCH42199706

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-26070iKCH4#,RCH41,47..E,STD,V,WINT,WISTD199704

main63142-26090iLXH4#,RCH42199706

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63142-26070iKCH4#,RCH41,47..E,STD,V,WINT,WISTD199704

main63142-26090iLXH4#,RCH42199706

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-26030iKCH4#,RCH41,47..E,STD,V,WINT,WISTD199704

main63144-26040iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

63187ABRACKET, ROOF RACK, REAR

main63107-26030×8iLXH4#,RCH42199706

main63107-26050×6iKCH4#,RCH41,47..E,G,STD,V,WISTD199704

63347CPAD, ROOF SILENCER, NO.7

main63347-26010iKCH4#,RCH41,47199704

9017906164

main90179-06164

14 parts on this diagram · 5 diagrams in section
