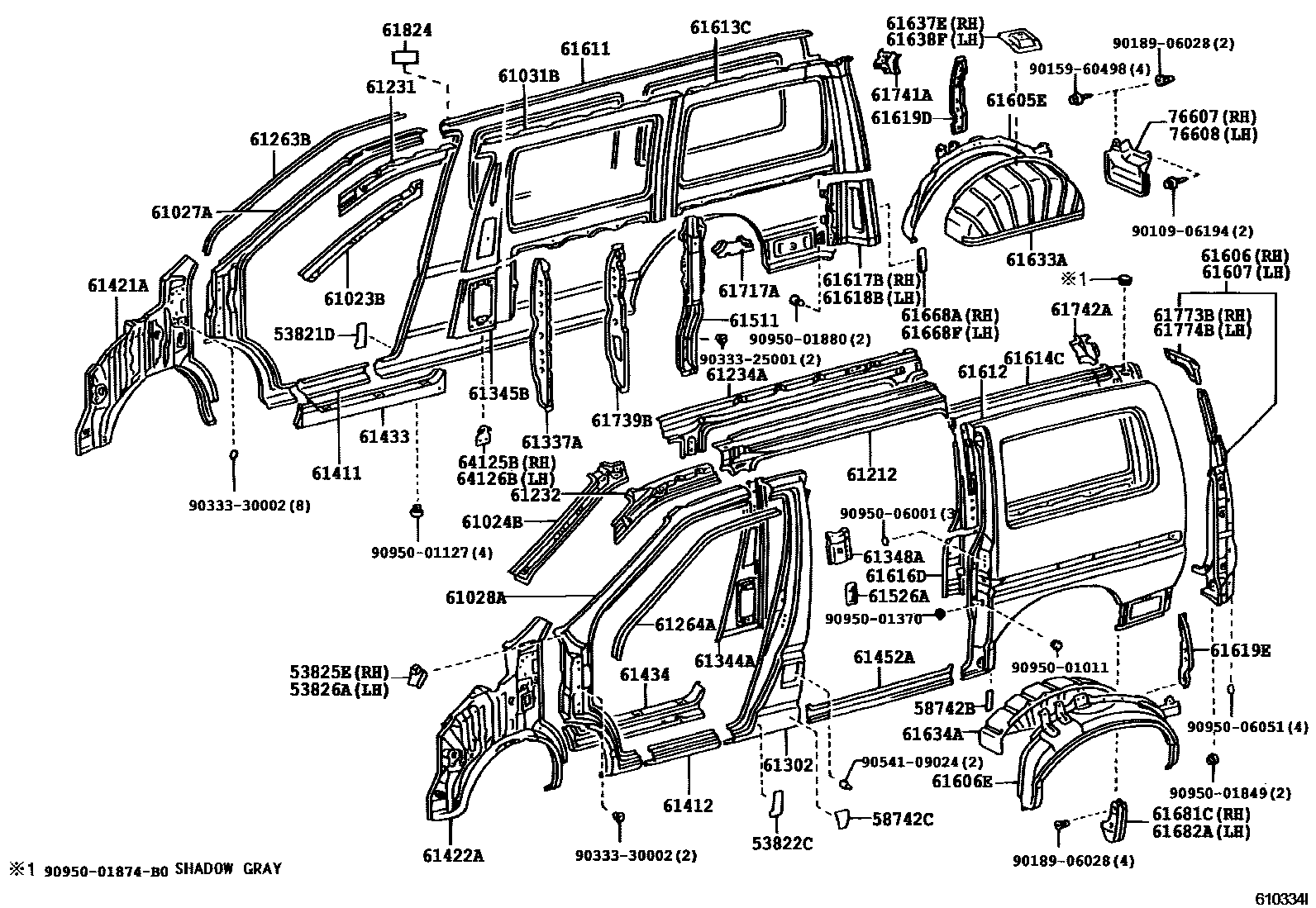

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

53821DPROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-26010iKCH4#,LXH4#,RCH4#..E,G,STD,V199704

53822CPROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-26010iKCH4#,LXH4#,RCH4#..E,G,STD,V199704

53825EPROTECTOR, FRONT FENDER, UPPER RH

main53825-26020iKCH4#,LXH4#,RCH4#199704

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-26020iKCH4#,LXH4#,RCH4#199704

58742BPROTECTOR, QUARTER PANEL, LH

main58742-26030iLXH4#;RCH42..MTM;RCH41,47..STD;RCH41,47..W07S;KCH4#..G07S,G08S199704

main58742-26040iKCH4#,RCH41,47..WINT,WISTD199704-199912

58742CPROTECTOR, QUARTER PANEL, LH

main58742-26020iKCH4#,LXH4#,RCH4#..E,G,STD,V199704

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-26040iKCH4#,LXH4#,RCH4#199704

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-26030iKCH4#,LXH4#,RCH4#199704

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-26270iLXH4#;KCH4#,RCH4#..E,STD,V199704

main61027-26380iKCH4#,RCH41,47..G,STD,V199704

main61027-26390iKCH4#,RCH41,47..WINT199704-199907

main61027-26400iKCH4#,RCH41,47..WINT199704-199907

main61027-26500iKCH4#,RCH41,47..WISTD199907

main61027-26510iKCH4#,RCH41,47..WISTD199907

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-26330iLXH4#;KCH4#,RCH4#..E,STD,V199704

main61028-26340iKCH4#,RCH41,47..G,STD,V199704

main61028-26350iKCH4#,RCH41,47..WINT199704-199907

main61028-26360iKCH4#,RCH41,47..WINT199704-199907

main61028-26490iKCH4#,RCH41,47..WISTD199907

main61028-26500iKCH4#,RCH41,47..WISTD199907

61031BEXTENSION SUB-ASSY, QUARTER PANEL, RH

main61031-26850iKCH4#,RCH41,47..4D..(G,STD,V,WISTD)199704

main61031-2F170iKCH4#,RCH41..G,STD199704-199804

main61031-2F290iKCH4#..E199704-199907

main61031-2F330iKCH4#,RCH41..WINT199704-199804

main61031-2F340iLXH4#..4D..STD199706

main61031-2F350iLXH4#..4D..STD199706

main61031-2F360iLXH4#..4D..STD199706

main61031-2F370iLXH4#..4D..STD199706

main61031-2F380iLXH4#..G199706

main61031-2F390iKCH4#,RCH41,47..WINT199704-199907

main61031-2F560iKCH4#,RCH41,47..V,WISTD199907

61212RAIL, ROOF SIDE, OUTER LH

main61202-26030iKCH4#,LXH4#,RCH4#199704

61231RAIL, ROOF SIDE, INNER RH

main61231-26020iLXH4#,RCH42..STD199706

main61231-26030iLXH4#..G;KCH4#,RCH41,47199704

61232RAIL, ROOF SIDE, INNER LH

main61232-26010iKCH4#,LXH4#,RCH4#199704

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61208-26060iRCH42199907

main61208-26080iLXH4#..G;KCH4#,RCH41,47199704

main61208-26100iLXH4#,RCH42..STD199706

61263BCHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-26020iKCH4#,RCH41,47199704

61264ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-26020iKCH4#,RCH41,47199704

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-26500iKCH4#,LXH4#,RCH4#..E,G,STD,V199704

main61302-26510iLXH4#..STD;RCH42..ATM199706

main61302-26520iKCH4#,RCH41,47..WINT199704-199907

main61302-26580iKCH4#,RCH41,47..WISTD199907

61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-26030iKCH4#,LXH4#,RCH41,47..4D199704

61344APILLAR, CENTER BODY, INNER LH

main61344-26030iRCH42199907

main61344-26100iLXH4#,RCH42..STD199706

main61344-26110iLXH4#..G199706

main61344-26130iLXH4#..4D..STD199706

main61344-26140iKCH4#,RCH41,47199704

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-26030iKCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)199704

main61345-26040iLXH4#..4D..STD199706

main61345-26050iKCH4#..E;LXH4#..G199704

main61345-26060iLXH4#..4D..STD199706

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-26010iLXH4#,RCH42..STD199706

main61348-26020iLXH4#..G;KCH4#,RCH41,47199704

61411PANEL, ROCKER, OUTER RH

main61411-26220iKCH4#,RCH41,47..WINT199704-199907

main61411-26240iKCH4#,LXH4#,RCH4#..E,G,STD,V199704

main61411-26320iKCH4#,RCH41,47..WISTD199907

61412PANEL, ROCKER, OUTER LH

main61412-26170iKCH4#,LXH4#,RCH4#..E,G,STD,V199704

main61412-26190iKCH4#,RCH41,47..WINT199704-199907

main61412-26250iKCH4#,RCH41,47..WISTD199907

61421APANEL, FENDER, INNER RH

main61403-26070iLXH4#..G;KCH4#,RCH41,47199704-199907

main61403-26080iLXH4#,RCH42..STD199706

main61403-26100iKCH4#,RCH41,47199907

61422APANEL, FENDER, INNER LH

main61404-26070iLXH4#..G;KCH4#,RCH41,47..E,STD,WINT199704

main61404-26080iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199704-199907

main61404-26090iLXH4#,RCH42..STD199706

main61404-26110iKCH4#,RCH41,47..V,WISTD199907

main61404-26120iKCH4#,RCH41,47199907

61433PANEL, ROCKER, INNER RH

main61433-26010iKCH4#,LXH4#,RCH4#199704

61434PANEL, ROCKER, INNER LH

main61434-26010iKCH4#,LXH4#,RCH4#199704

61452APANEL, ROCKER OUTER, LH

main61451-26010iKCH4#,LXH4#,RCH41,47..4D199704

61511PILLAR, QUARTER LOCK, RH

main61501-26030iKCH4#,LXH4#,RCH41,47..4D199704

61526ARETAINER, SEPARATOR BAR BRACKET, LH

main61525-26020iKCH4#,LXH4#,RCH4#199704

61605EPANEL, QUARTER, RH

main61605-26080iKCH4#,LXH4#,RCH4#..G,STD199704-199907

main61605-26090iKCH4#,RCH41,47..WINT199704-199907

main61605-26100iKCH4#..E199704-199907

main61605-26120iKCH4#,LXH4#,RCH4#..G,STD,V199907

main61605-26150iKCH4#,RCH41,47..WISTD199907

main61605-26180iRCH42199907

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-26060iLXH4#,RCH42199706

main61705-26180iKCH4#,RCH41,47199704

61606EPANEL, QUARTER, LH

main61606-26030iKCH4#,RCH41,47..G,STD199704-199907

main61606-26100iLXH4#,RCH42199706-199907

main61606-26120iKCH4#,RCH41,47..WINT199704-199907

main61606-26130iKCH4#..E199704-199907

main61606-26170iKCH4#,RCH41,47..G,V199907

main61606-26200iKCH4#,RCH41,47..WISTD199907

main61606-26230iRCH42199907

main61606-26250iLXH4#,RCH42199907

61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61706-26130iLXH4#,RCH42199706

main61706-26140iKCH4#,RCH41,47199704

61611PANEL, QUARTER, RH

main61601-26730iKCH4#,LXH4#,RCH4#..5D199706

main61601-26740iKCH4#,LXH4#,RCH41,47..4D..(E,G,STD,V)199704

main61601-26750iKCH4#,RCH41,47..WINT199704-199907

main61601-2F070iKCH4#,RCH41,47..WISTD199907

61612PANEL, QUARTER, LH

main61602-2N550iKCH4#,LXH4#,RCH4#..E,G,STD,V199704

main61602-2N560iKCH4#,RCH41,47..WINT,WISTD199704

61613CPANEL SUB-ASSY, QUARTER, INNER REAR RH

main61607-26410iKCH4#,RCH41,47..4D..(G,STD,V,WISTD)199704

main61607-26450iLXH4#..4D..STD199706

main61607-26530iLXH4#..G199706

main61607-26580iKCH4#..E199704-199907

main61607-26610iLXH4#,RCH42..5D199706

main61607-26660iKCH4#,RCH41,47..WINT199704-199907

main61607-26670iRCH41,47..5D199804-199907

main61607-26671iKCH4#,RCH41,47..W07S199907

main61607-26700iLXH4#..5D;RCH42..MTM199706-199910

main61607-26710iLXH4#..4D..STD199706

main61607-26790iKCH4#,RCH41,47..STD,V,WISTD199704-200102

main61607-26800iKCH4#,RCH41,47..WINT199704-199907

main61607-2F010iRCH42199907

61614CPANEL SUB-ASSY, QUARTER, INNER REAR LH

main61608-26270iKCH4#,RCH41,47..G,STD,V,WISTD199704

main61608-26570iLXH4#,RCH42..STD199910

main61608-26650iLXH4#,RCH42..STD199706

main61608-26740iLXH4#..G199706

main61608-26750iKCH4#..E199704-199907

main61608-26860iKCH4#,RCH41,47..WINT199704-199907

main61608-26880iKCH4#,RCH41,47..STD,V,WISTD199704-200102

main61608-26890iKCH4#,RCH41,47..WINT199704-199907

main61608-2F090iRCH42199907

61616DPILLAR, QUARTER LOCK, INNER LH

main61616-26030iKCH4#,LXH4#,RCH4#199704

61617BPANEL, QUARTER INNER, LOWER RH

main61067-26030iLXH4#..G;KCH4#,RCH41,47199704

main61617-26010iLXH4#,RCH42..STD199706

61618BPANEL, QUARTER, INNER LOWER LH

main61068-26020iLXH4#..G;KCH4#,RCH41,47199704

main61068-26030iKCH4#,RCH41,47..STD,V,WINT,WISTD199704-200102

main61068-26040iKCH4#,RCH41,47..V,WISTD199907

main61618-26010iLXH4#,RCH42..STD199706

61619DREINFORCEMENT, QUARTER PANEL, RH

main61603-26010iKCH4#,LXH4#,RCH4#199710

main61619-26040iKCH4#,LXH4#,RCH4#199704-199710

61619EREINFORCEMENT, QUARTER PANEL

main61603-26010iKCH4#,LXH4#,RCH4#199710

main61619-26040iKCH4#,LXH4#,RCH4#199704-199710

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-26030iKCH4#,LXH4#,RCH4#199704

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-26030iKCH4#,LXH4#,RCH4#199704

61637EBRACKET, QUARTER WHEEL HOUSE

main61637-26020iKCH4#,RCH41,47..V,WISTD199907

61638FBRACKET, QUARTER WHEEL HOUSE, LH

main61637-26020iKCH4#,RCH41,47..V,WISTD199907

61668ASPACER QUARTER PANEL, NO.2

main61668-26020iKCH4#,LXH4#,RCH4#199704

61668FSPACER, QUARTER PANEL, NO.2

main61668-26020iKCH4#,LXH4#,RCH4#199704

61681CEXTENSION, REAR WHEEL OPENING, RH

main61061-26010iKCH4#,RCH41,47..WINT199804-199907

main61061-26020iKCH4#,RCH41,47..WINT199704-199907

main61061-26040iKCH4#,RCH41,47199907

61682AEXTENSION, REAR WHEEL OPENING, LH

main61062-26010iKCH4#,RCH41,47..WINT199804-199907

main61062-26020iKCH4#,RCH41,47..WINT199704-199907

main61062-26040iKCH4#,RCH41,47199907

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-26020iKCH4#,LXH4#,RCH41,47..4D199704

61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL

main61739-26020iKCH4#,LXH4#,RCH41,47..4D199704

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-26010iKCH4#,LXH4#,RCH4#199704

61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH

main61742-26010iKCH4#,LXH4#,RCH4#199704

61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH

main61773-26020iKCH4#,LXH4#,RCH4#199704

61774BFRAME, BACK DOOR OPENING SIDE, UPPER LH

main61774-26020iKCH4#,LXH4#,RCH4#199704

61824PLATE, NOISE CONTROL, NO.1

main61824-26010×2iKCH4#,LXH4#,RCH4#199708

64125BANCHOR, PILLAR SEAT BELT

main64125-26020iKCH4#,LXH4#,RCH4#199704

64126BANCHOR, PILLAR SEAT BELT, LOWER

main64126-26010iKCH4#,LXH4#,RCH4#199704

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-26020-B1iKCH4#,RCH41..G199704-199804

BL.GRAY ME,2DK

main76625-26020-B2iKCH4#,RCH41,47..STD199712

main76625-26020-B3iKCH4#,RCH41,47..G,STD199804-199907

SILVER ME,2EB

main76625-26020-B4iKCH4#,RCH41,47..STD199804-199907

BLUISH SILVER ME.,1A0 ,2DM

main76625-26020-G1iKCH4#,RCH41,47..G,STD199804-199907

GRAYISH BREEN M,2DJ ,2EV

main76625-26020-G2iKCH4#,RCH41,47..STD199804-199907

LT. GREEN M.,6L5

main76625-26030iKCH4#,RCH41,47..STD199704-199907

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-26020-B1iKCH4#,RCH41..G199704-199804

BL.GRAY ME,2DK

main76626-26020-B2iKCH4#,RCH41,47..STD199712

main76626-26020-B3iKCH4#,RCH41,47..G,STD199804-199907

SILVER ME,2EB

main76626-26020-B4iKCH4#,RCH41,47..STD199804-199907

BLUISH SILVER ME.,1A0 ,2DM

main76626-26020-G1iKCH4#,RCH41..G199704-199804

GRAYISH BREEN M,2DJ

main76626-26020-G2iKCH4#,RCH41,47..STD199804-199907

LT. GREEN M.,6L5

main76626-26030iKCH4#,RCH41,47..STD199704-199907

9010906194

main90109-06194

9015960498

main90159-60498

9018906028

main90189-06028

9033325001

main90333-25001

9033330002

main90333-30002

9054109024

main90541-09024

9095001011

main90950-01011

9095001127

main90950-01127

9095001370

main90950-01370

9095001849

main90950-01849

9095001874B0

main90950-01874B0

9095001880

main90950-01880

9095006001

main90950-06001

9095006051

main90950-06051

77 parts on this diagram · 4 diagrams in section
