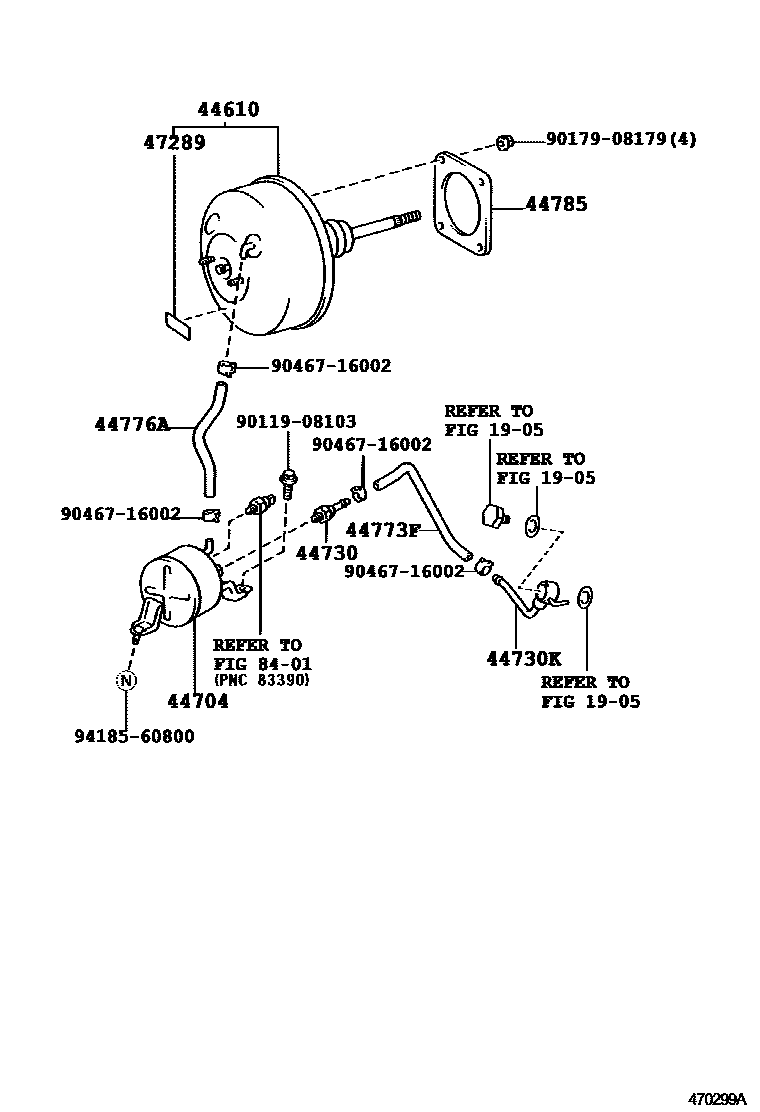

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-26560iKCH4#199704-199907

main44610-26561iKCH4#199907

main44610-26590iRCH4#199704-199907

main44610-26591iRCH4#199907

main44610-26610iLXH4#199706-200108

main44610-26650iLXH4#200108

44704RESERVOIR SUB-ASSY, VACUUM

main44704-26170iKCH4#199704

main44704-26180iLXH4#199706

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60050iKCH4#,LXH4#199704

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09139iLXH4#199706

main90405-09175iKCH4#199704

44773FHOSE, UNION TO CHECK VALVE

main44773-26080iLXH4#199706

main44773-26090iKCH4#199704

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44774-26300iLXH4#199706

44785GASKET, BRAKE BOOSTER

main44785-20020iKCH4#,LXH4#,RCH4#199704

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60020iLXH4#199706

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908103

main90119-08103

9017908179

main90179-08179

9046716002

main90467-16002

9418560800

main94185-60800

14 parts on this diagram · 3 diagrams in section
