STEERING WHEEL

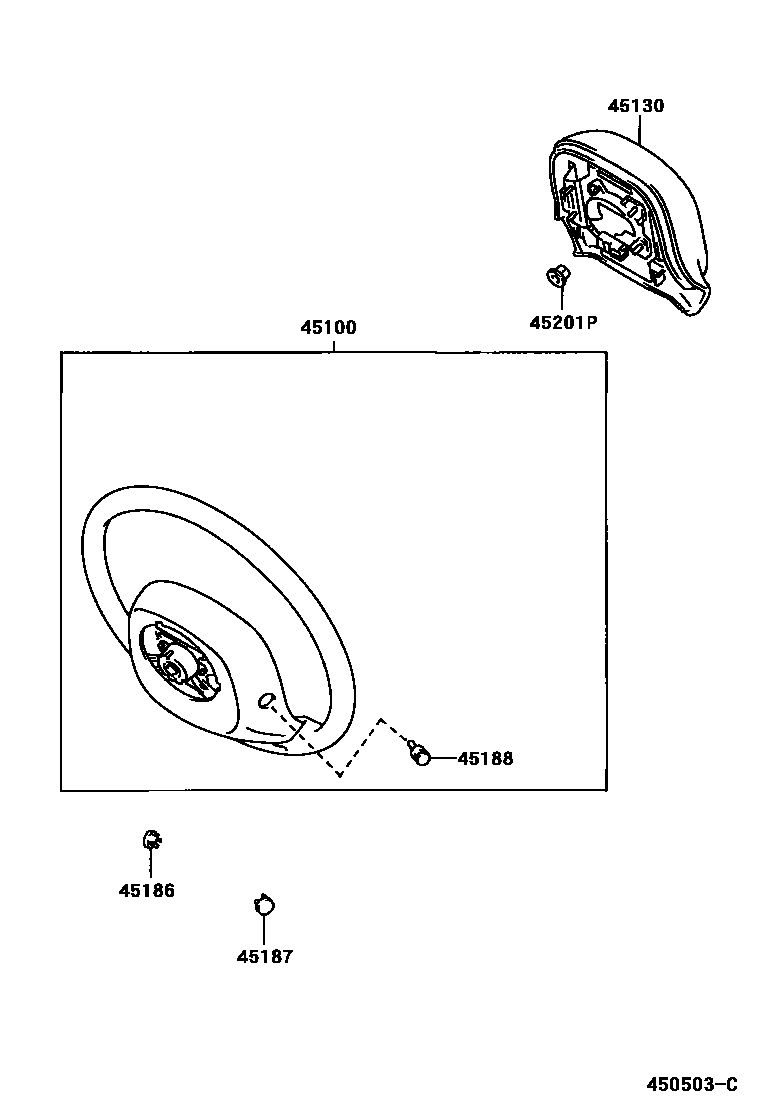

Parts diagram

45100WHEEL ASSY, STEERING

main45100-26220-B0i199706

main45100-26250-B0i199704-199711

main45100-26250-G0i199704-199711

main45100-26280-B0i199711-199907

main45100-26280-G0i199711-199907

main45100-26300-B0i199907

main45100-26300-E0i199907

main45100-26330-E0i199907

45130BUTTON ASSY, HORN

main45130-26240-B0i199706

BLUISH GRAY,TRIM1#

main45130-26270-B0i199704-199907

main45130-26270-G0i199704-199907

main45130-26320-B0i199907

main45130-26320-E0i199907

main45130-26330-E0i200004-200011

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-26010-B0i199704-199907

BLUISH GRAY,TRIM1#

main45186-26010-G0i199704-199907

DK.SAGE,TRIM6#

main45186-33050-B0i199907

main45186-33050-E2i199907

main45186-44010-B0i199907

BLUISH GRAY,TRIM1#

main45186-44010-E1i199907

ORCHID BROWN,TRIM4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-26010-B0i199704-199907

BLUISH GRAY,TRIM1#

main45186-26010-G0i199704-199907

DK.SAGE,TRIM6#

main45186-33050-B0i199907

main45186-33050-E2i199907

main45186-44010-B0i199907

BLUISH GRAY,TRIM1#

main45186-44010-E1i199907

ORCHID BROWN,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i199908

main90148-60011×2i199704-199907

main90148-60031×2i199907-199908

45201PNUT, STEERING WHEEL SET

main90179-12071i199704

6 parts on this diagram · 3 diagrams in section
