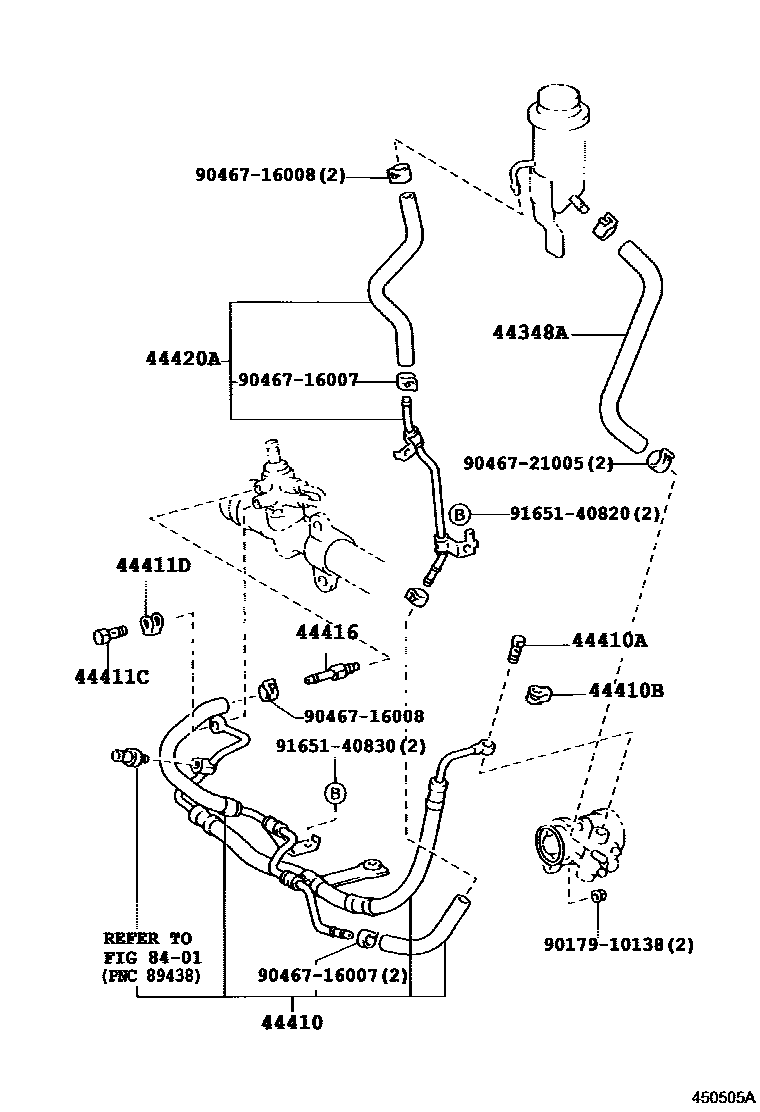

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-26121iLXH4#199706

main44348-26151iRCH42199706

main44348-26170iRCH41,47199704

main44348-26180iKCH4#199704

44410TUBE ASSY, PRESSURE FEED

main44410-26540iLXH43..MTM199706

main44410-26550iLXH43..ATM199706

main44410-26560iLXH49..MTM199706

main44410-26570iLXH49..ATM199706

main44410-26580iKCH40199704

main44410-26590iKCH46199704-199907

main44410-26591iKCH46199907

main44410-26600iRCH42199706-199907

main44410-26601iRCH42199907

main44410-26610iRCH41199704-199907

main44410-26620iRCH47199704-199907

main44410-26780iRCH41199907

main44410-26790iRCH47199907

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16014iKCH4#,LXH4#,RCH4#199704

44410BGASKET(FOR PRESSURE FEED TUBE)

main44327-26020iKCH4#,LXH4#,RCH4#199704

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iKCH46,LXH49,RCH47199704

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242iKCH46,LXH49,RCH47199704

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iKCH4#,LXH4#,RCH4#199704

44420ATUBE ASSY, RETURN

main44420-26040iLXH4#,RCH4#199704

main44420-26100iKCH40199704

main44420-26110iKCH46199704

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910138

main90179-10138

9046716007

main90467-16007

9046716008

main90467-16008

9046721005

main90467-21005

9165140820

main91651-40820

9165140830

main91651-40830

15 parts on this diagram · 6 diagrams in section
