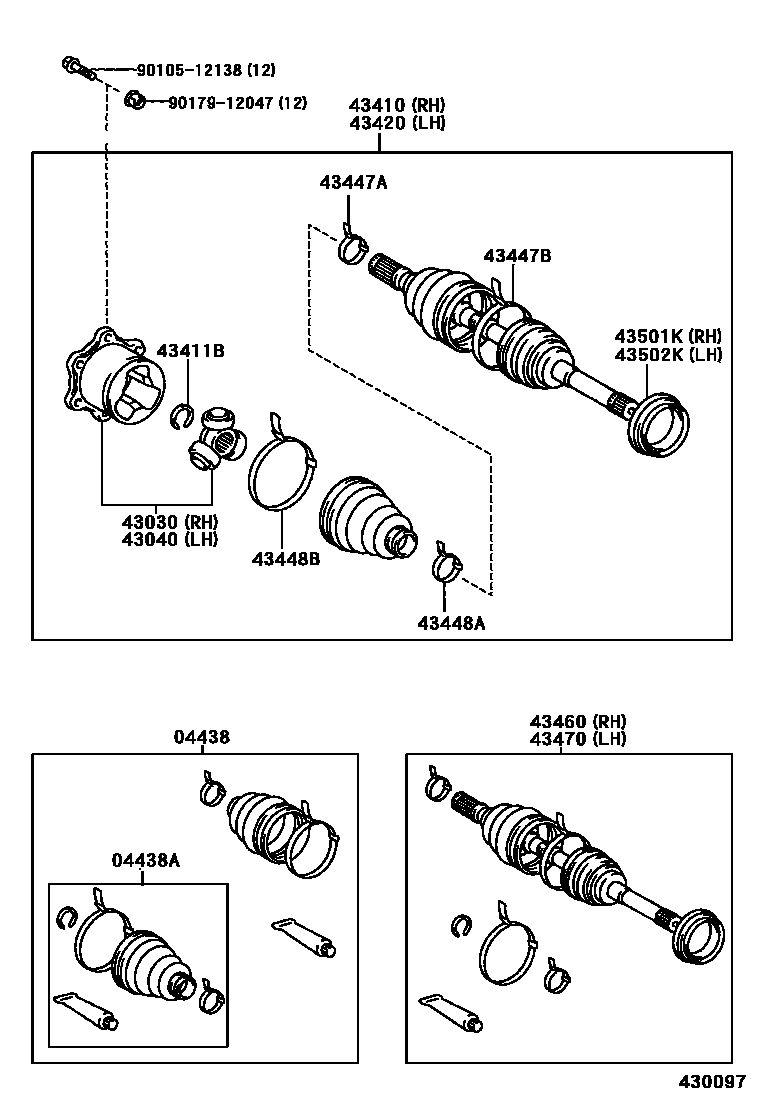

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-26021×2iKCH46;RCH47..W08S199907

main04438-35022×2iLXH49199806-200107

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-26011×2iLXH49;KCH46..G07S;RCH47..W07S;KCH46,RCH47..E,STD,WINT199704

main04438-35012×2iLXH49199806-200107

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-26010iKCH46,LXH49,RCH47200107

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43403-26010iKCH46,LXH49,RCH47200107

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-26040iLXH49;KCH46..G07S;RCH47..W07S;KCH46,RCH47..E,STD,WINT199704-200107

main43430-26041iKCH46,LXH49,RCH47200107

main43430-26070iLXH49199806-200107

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iKCH46,RCH47200103-200107

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-26040iLXH49;KCH46..G07S;RCH47..W07S;KCH46,RCH47..E,STD,WINT199704-200107

main43430-26041iKCH46,LXH49,RCH47200107

main43430-26070iLXH49199806-200107

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iKCH46,LXH49,RCH47200107

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iKCH46,LXH49,RCH47199704-200103

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iKCH46,LXH49,RCH47199704-200103

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iKCH46,LXH49,RCH47199704-200103

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29315iLXH49;KCH46..G07S;RCH47..W07S;KCH46,RCH47..E,STD,WINT199704-200107

main43460-29375iLXH49199806-200107

main43460-29465iKCH46,LXH49,RCH47200107

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29315iLXH49;KCH46..G07S;RCH47..W07S;KCH46,RCH47..E,STD,WINT199704-200107

main43460-29375iLXH49199806-200107

main43460-29465iKCH46,LXH49,RCH47200107

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76002iKCH46;RCH47..W08S199907-200107

main90304-76003iLXH49199806-200107

main90304-76005iKCH46,LXH49,RCH47200107

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76002iLXH49;KCH46..G07S;RCH47..W07S;KCH46,RCH47..E,STD,WINT199704-200107

main90304-76003iLXH49199806-200107

main90304-76005iKCH46,LXH49,RCH47200107

9010512138

main90105-12138

9017912047

main90179-12047

17 parts on this diagram · 1 diagram in section
