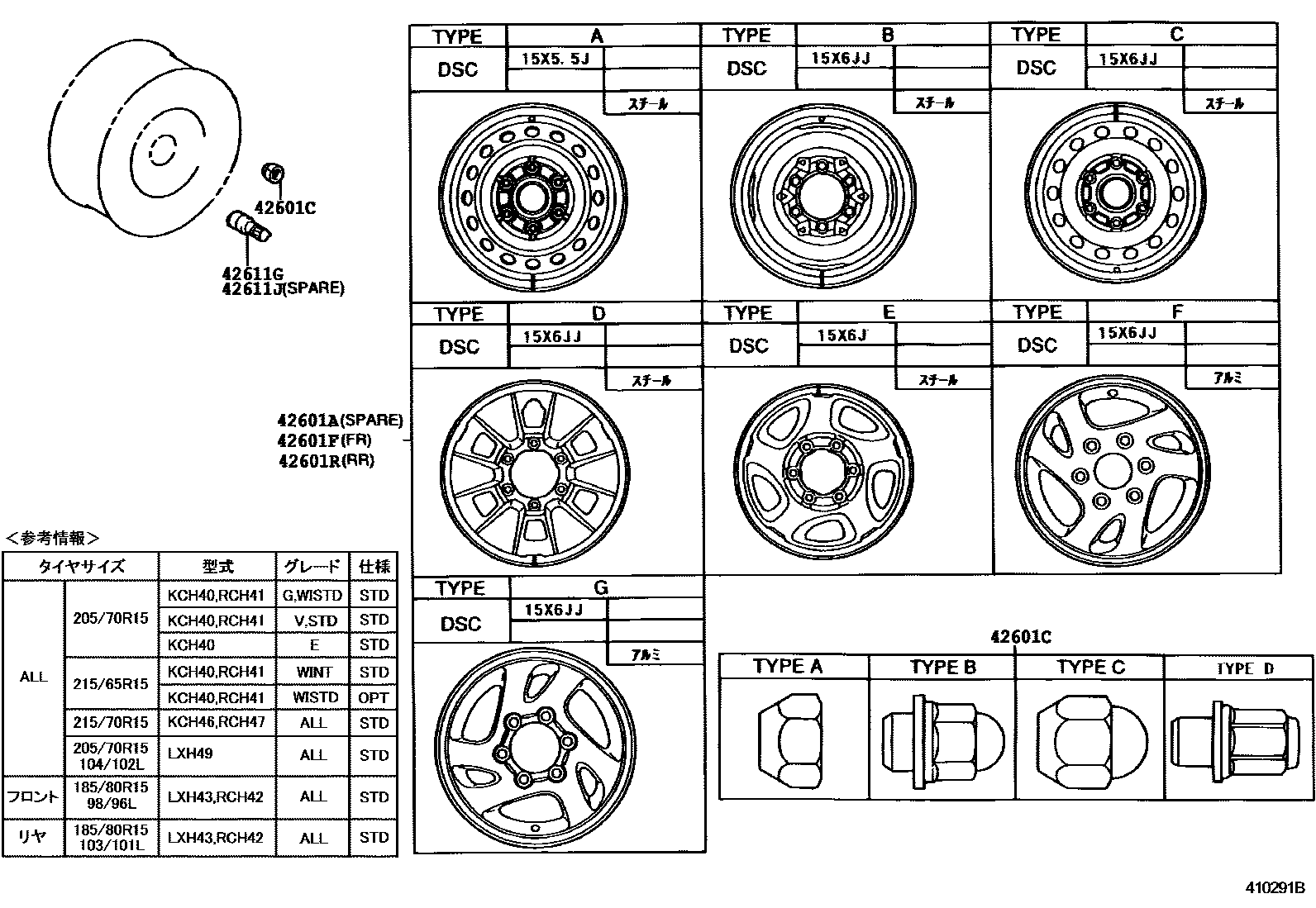

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601AWHEEL, DISC (FOR SPARE)

main42601-26281-03iLXH49199706

main42601-26400iKCH40..E;LXH43,RCH42..STD199704

main42601-26410iLXH43..G;KCH40,RCH41..G,STD199704-199907

main42601-26470iKCH40,RCH41199907

main42601-26480iKCH46,RCH47199704

42601CNUT, HUB (FOR AXLE)

main90942-01007×24iKCH4#,RCH41,47..WINT199804-199907

main90942-01026×24iKCH4#,RCH41,47..G,STD,WINT199704-199907

main90942-01047×24iLXH49;KCH40..E;KCH46,LXH43,RCH42,47..E,STD,V,WISTD199704

main90942-01095×24iKCH4#,RCH41,47199907

42601FWHEEL, DISC (FOR FRONT)

main42601-26281-03×2iLXH49..STD199706

main42601-26400×2iKCH40..E;LXH43,RCH42..STD199704

main42601-26410×2iKCH4#,RCH41..WINT199804-199907

main42601-26470×2iKCH40,RCH41..V,WISTD199907

main42601-26480×2iKCH4#,RCH47..WINT199804-199907

main42601-35510-03×2iLXH49..G199706

main42611-26030×2iKCH40,RCH41..G,STD,V199704

main42611-26040×2iKCH40,RCH41..WINT,WISTD199704

main42611-26050×2iKCH46,RCH47..G,STD,V199704

main42611-26060×2iKCH46,RCH47..WINT,WISTD199704

main42611-26070×2iKCH40,RCH41..V200004-200011

main42611-26080×2iKCH46,RCH47..V200004-200011

main42611-26110×2iKCH46,RCH47..WISTD200008-200204

main42611-26120×2iKCH40,RCH41..WISTD200008-200204

42601RWHEEL, DISC (FOR REAR)

main42601-26281-03×2iLXH49..STD199706

main42601-26400×2iKCH40..E;LXH43,RCH42..STD199704

main42601-26410×2iLXH43..G;KCH40,RCH41..STD199704

main42601-26470×2iKCH40,RCH41..V,WISTD199907

main42601-26480×2iKCH46,RCH47..E,STD,V,WISTD199704

main42601-35510-03×2iLXH49..G199706

main42611-26030×2iKCH40,RCH41..G,STD,V199704

main42611-26040×2iKCH40,RCH41..WINT,WISTD199704

main42611-26050×2iKCH46,RCH47..G,STD,V199704

main42611-26060×2iKCH46,RCH47..WINT,WISTD199704

main42611-26070×2iKCH40,RCH41..V200004-200011

main42611-26080×2iKCH46,RCH47..V200004-200011

main42611-26110×2iKCH46,RCH47..WISTD200008-200204

main42611-26120×2iKCH40,RCH41..WISTD200008-200204

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iKCH4#,LXH4#,RCH4#199704

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iKCH4#,LXH4#,RCH4#199704

6 parts on this diagram · 3 diagrams in section
