TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

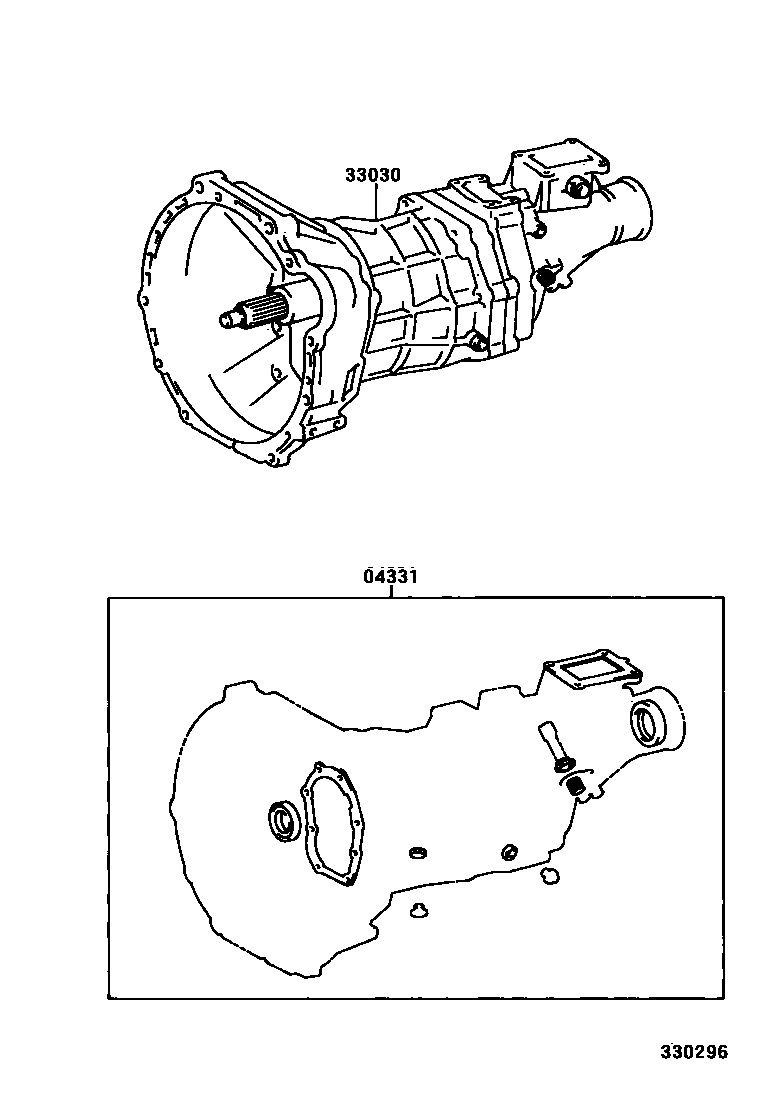

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26030i199706-200205

main04331-26040i199706-200205

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-2F170i199706-199907

main33030-2F180i199706-200205

main33030-2F190i199706-200205

2 parts on this diagram · 2 diagrams in section
