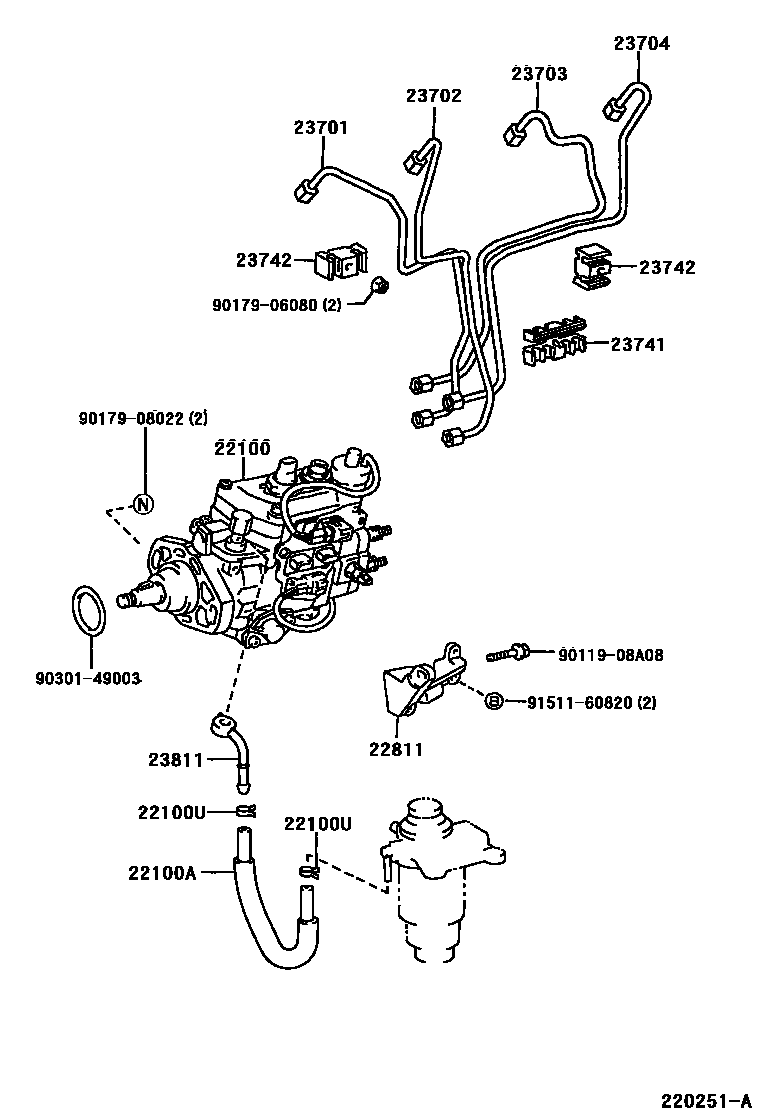

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B640i5L..LXH4#..MTM199706

sub22100-5D040

main22100-5B650i5L..LXH4#..ATM..STD199706

sub22100-5B660

main22100-5B660i5L..LXH4#..G199706

main22100-67070i1KZTE..KCH4#199704-199907

main22100-67100i1KZTE..KCH4#199907

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54090i5L..LXH4#199706

main23271-67100i1KZTE..KCH4#199704

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-13001i1KZTE..KCH4#199704

sub96135-51300

22811STAY, INJECTION PUMP, NO.1

main22811-54042i5L..LXH4#199804

main22811-54050i5L..LXH4#199706-199804

main22811-67010i1KZTE..KCH4#199704

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i5L..LXH4#199706

main23701-67021i1KZTE..KCH4#199704

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i5L..LXH4#199706

main23702-67020i1KZTE..KCH4#199704-199905

sub23702-67021

main23702-67021i1KZTE..KCH4#199905

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i5L..LXH4#199706

main23703-67021i1KZTE..KCH4#199704-199808

main23703-67030i1KZTE..KCH4#199808-199905

sub23703-67031

main23703-67031i1KZTE..KCH4#199905

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i5L..LXH4#199706

main23704-67020i1KZTE..KCH4#199704

23741CLAMP, INJECTION PIPE, NO.1

main23741-54030i5L..LXH4#199706

main23741-64030i1KZTE..KCH4#199704

23742CLAMP, INJECTION PIPE, NO.2

main23742-67010i1KZTE..KCH4#199704

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54200i5L..LXH4#199706

main23811-67010i1KZTE..KCH4#199704

9011908A08

main90119-08A08

9017906080

main90179-06080

9017908022

main90179-08022

9030149003

main90301-49003

9151160820

main91511-60820

16 parts on this diagram · 2 diagrams in section
