ALTERNATOR

0001 112V 80A 0002 112V 80A, 90A 0003 112V 70A 0004 112V 80A 0005 112V 70A

1107

27020ALTERNATOR ASSY

main27060-54140i5L..LXH4#..MTM199706

main27060-54270i5L..LXH4#..ATM199706

main27060-67120i1KZTE..KCH4#199704-199907

main27060-67150i1KZTE..KCH4#199907

main27060-75150i1RZE..RCH42199706

main27060-75160i3RZFE..RCH41,47199704-199907

sub27060-75210

main27060-75230i3RZFE..RCH41,47199907

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KZTE..KCH4#199704

main90105-10221i1RZE,3RZFE..RCH4#199704-200204

main90105-10287i5L..LXH4#199706

27039COVER, ALTERNATOR REAR END

main27039-16380i5L..LXH4#..MTM199706

main27039-55080i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM199704-200106

sub27039-70470

main27039-67100i1RZE..RCH42199706

main27039-70470i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM200104-200106

27064SEAL, ALTERNATOR PLATE

main27064-42010i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM199704

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i1KZTE,3RZFE..KCH4#,RCH41,47199804

main27312-64130i5L..LXH4#199706

main27312-72100i1RZE..RCH42199706

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54520i5L..LXH4#..ATM199706

main27310-54630i5L..LXH4#..MTM199706

sub27310-54500

main27310-67110i1KZTE..KCH4#199704

main27310-75100i1RZE..RCH42199706-199907

main27310-75110i3RZFE..RCH41,47199704

main27310-75160i1RZE..RCH42199907

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i5L..LXH4#199706

main90099-10192i1KZTE,3RZFE..KCH4#,RCH41,47199704

main90099-10199i1RZE..RCH42199706

27330ROTOR ASSY, ALTERNATOR

main27330-16390i3RZFE..RCH41,47200007

main27330-64130i5L..LXH4#..MTM199706

main27330-64190i5L..LXH4#..ATM199706

main27330-67100i1RZE..RCH42199706

main27330-72280i1KZTE..KCH4#199704-200007

sub27330-74550

main27330-74550i1KZTE..KCH4#200007

main27330-76030i3RZFE..RCH41,47199704-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47199704

main90099-10216i1RZE..RCH42199706

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i5L..LXH4#..ATM;1KZTE..KCH4#..(G,V,WISTD)..(W07S,W08S)199706

main27357-16380i5L..LXH4#..MTM199706

main27357-55080i3RZFE..RCH41,47;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT199704

main27357-67100i1RZE..RCH42199706

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16182i5L..LXH4#..MTM199706

main27359-54420i5L..LXH4#..ATM199706

main27359-67050i1KZTE..KCH4#199704

main27359-72280i3RZFE..RCH41,47199704

main27359-75160i1RZE..RCH42199706

27365PLATE, TERMINAL

main27365-55080i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM199704

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i1RZE..RCH42199706

main27370-58320i5L..LXH4#..MTM199706

main27370-75060i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM199704

27384WASHER

main27384-50030i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM199704

27387INSULATOR, TERMINAL

main27387-42020i1KZTE,3RZFE..KCH4#,RCH41,47199704-199708

main27387-42021i5L..LXH4#..ATM199706-199708

main27387-70170i1RZE..RCH42199706-199709

main27387-70171i5L..LXH4#..MTM199706-199709

27388COVER, ALTERNATOR BRUSH

main27388-42010i1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM199704

27411PULLEY, ALTERNATOR

main27411-16150i1RZE..RCH42199706

main27411-42030i3RZFE..RCH41,47199704-199907

main27411-67060i1KZTE..KCH4#199704

main27411-74550i3RZFE..RCH41,47199907

27443COVER, ALTERNATOR BEARING

main27443-63020i1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4#199704

27700AREGULATOR ASSY, GENERATOR

main27700-35040i5L..LXH4#199706

main27700-50030i1KZTE,3RZFE..KCH4#,RCH41,47199704

main27700-75020i1RZE..RCH42199706

2738942010INSULATOR, TERMINAL

main27389-42010

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9151160835

main91511-60835

9331914025

main93319-14025

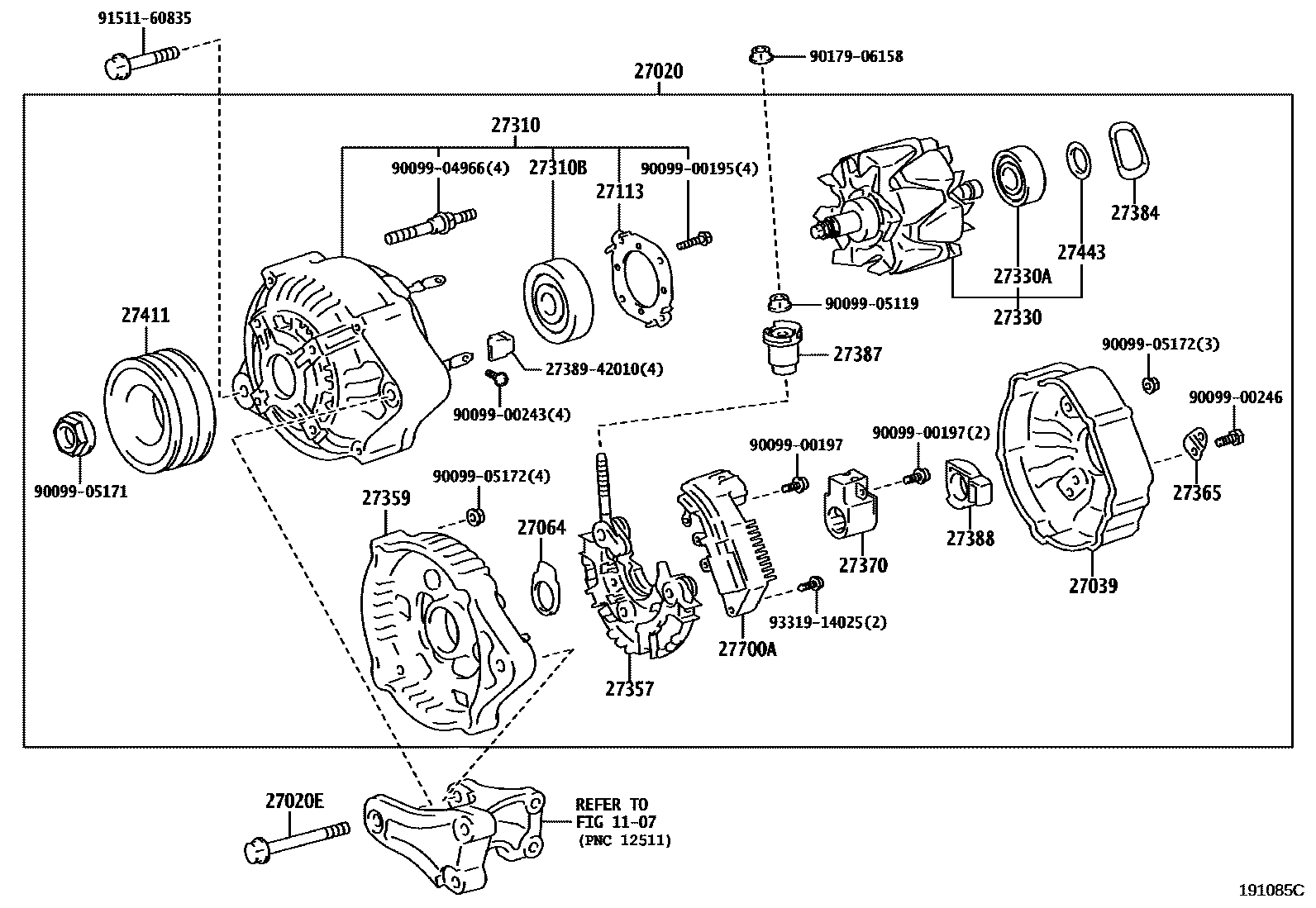

32 parts on this diagram · 5 diagrams in section
