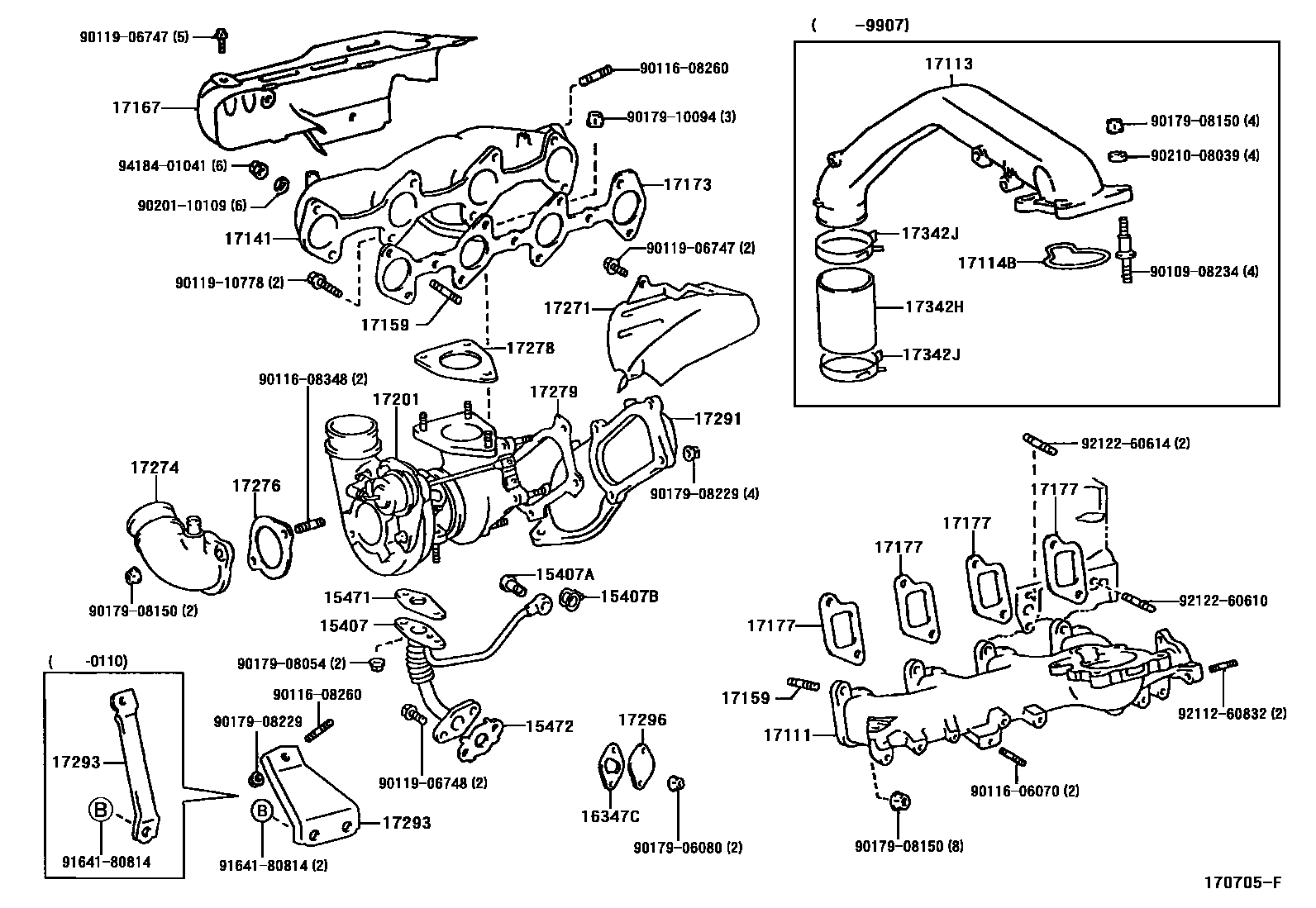

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-67010i1KZTE..KCH4#199704

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i1KZTE..KCH4#199704

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90904-30004i1KZTE..KCH4#199704

15471GASKET, TURBO OIL INLET

main15471-58010i1KZTE..KCH4#199704

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-67010i1KZTE..KCH4#199704

sub15472-30010

16347CGASKET(FOR TURBO WATER PIPE)

main16347-67010i1KZTE..KCH4#199704

17111MANIFOLD, INTAKE

main17101-54101i5L..LXH4#199706-199908

main17101-67011i1KZTE..KCH4#199704-199907

main17101-75020i1RZE..RCH42199706-200010

main17101-75021i1RZE..RCH42200010-200205

main17101-75031i3RZFE..RCH41,47199704-199804

sub17101-75032

sub12261-75060

sub90467-16038

sub90467-18003

main17101-75032i3RZFE..RCH41,47199804-199906

main17101-75040i3RZFE..RCH41,47199907-200108

sub17101-75041

sub90341-10009

main17101-75041i3RZFE..RCH41,47200108-200204

main17101-75060i3RZFE..RCH41,47199906-199907

main17111-54112i5L..LXH4#199908

main17111-67071i1KZTE..KCH4#199907

17113PIPE, INTAKE

main17113-67011i1KZTE..KCH4#199704-199907

17114BGASKET, INTAKE FLANGE

main17116-54021i5L..LXH4#199706-200008

sub17116-54030

main17116-54030i5L..LXH4#200008

main17116-67010i1KZTE..KCH4#199704-199907

17141MANIFOLD, EXHAUST

main17104-67010i1KZTE..KCH4#199704

main17141-54111i5L..LXH4#199706

main17141-75020i1RZE..RCH42199706-200205

main17141-75060i3RZFE..RCH41,47199704-199905

sub17141-75061

sub17148-41010

sub89466-20020

sub90126-08001

sub90179-08059

main17141-75061i3RZFE..RCH41,47199905-200204

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10163i3RZFE..RCH41,47199704-200205

main90126-10017i1KZTE..KCH4#199704

main92122-80822i1KZTE..KCH4#199704

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54110i5L..LXH4#199706

main17167-67040i1KZTE..KCH4#199704

main17167-75050i3RZFE..RCH41,47199704-200204

main17167-75060i1RZE..RCH42199706-200205

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-30010i1KZTE..KCH4#200002-200107

main17173-30020i1KZTE..KCH4#200107

main17173-54030i5L..LXH4#199706

main17173-67030i1KZTE..KCH4#199704-200002

sub17173-30010

main17173-75010i1RZE..RCH42199706-200205

main17173-75020i3RZFE..RCH41,47199704-200204

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54021i5L..LXH4#199706

main17177-67011i1KZTE..KCH4#199704

main17177-75011i1RZE..RCH42199706-200205

main17177-75020i3RZFE..RCH41,47199704-199907

main17177-75030i3RZFE..RCH41,47199907-200204

17201TURBOCHARGER SUB-ASSY

main17201-67010i1KZTE..KCH4#199704-199907

main17201-67040i1KZTE..KCH4#199907-200205

17271INSULATOR, TURBO, NO.1

main17271-67040i1KZTE..KCH4#199704

17274ELBOW, COMPRESSOR INLET

main17274-67011i1KZTE..KCH4#199704

17276GASKET, COMPRESSOR INLET

main17276-67010i1KZTE..KCH4#199704

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-67010i1KZTE..KCH4#199704

17279GASKET, TURBINE OUTLET ELBOW

main17279-67010i1KZTE..KCH4#199704

17291ELBOW, TURBINE OUTLET

main17291-67050i1KZTE..KCH4#199704

17293STAY, TURBOCHARGER

main17293-67010i1KZTE..KCH4#199704-200110

main17293-67011i1KZTE..KCH4#200110

17296PLATE, BEARING HOUSING, SIDE

main17296-28010i1KZTE..KCH4#199704

17342HHOSE, AIR, NO.2(FOR TURBOCHARGER)

main17342-67010i1KZTE..KCH4#199704-199807

sub17342-67030

main17342-67030i1KZTE..KCH4#199807-199907

17342JCLIP, HOSE(FOR INTAKE PIPE)

main90467-53002i1KZTE..KCH4#199704-199907

9010908234

main90109-08234

9011606070

main90116-06070

9011608260

main90116-08260

9011608348

main90116-08348

9011906747

main90119-06747

9011906748

main90119-06748

9011910778

main90119-10778

9017906080

main90179-06080

9017908054

main90179-08054

9017908150

main90179-08150

9017908229

main90179-08229

9017910094

main90179-10094

9020110109

main90201-10109

9021008039

main90210-08039

9164180814

main91641-80814

9211260832

main92112-60832

9212260610

main92122-60610

9212260614

main92122-60614

9418401041

main94184-01041

44 parts on this diagram · 6 diagrams in section
