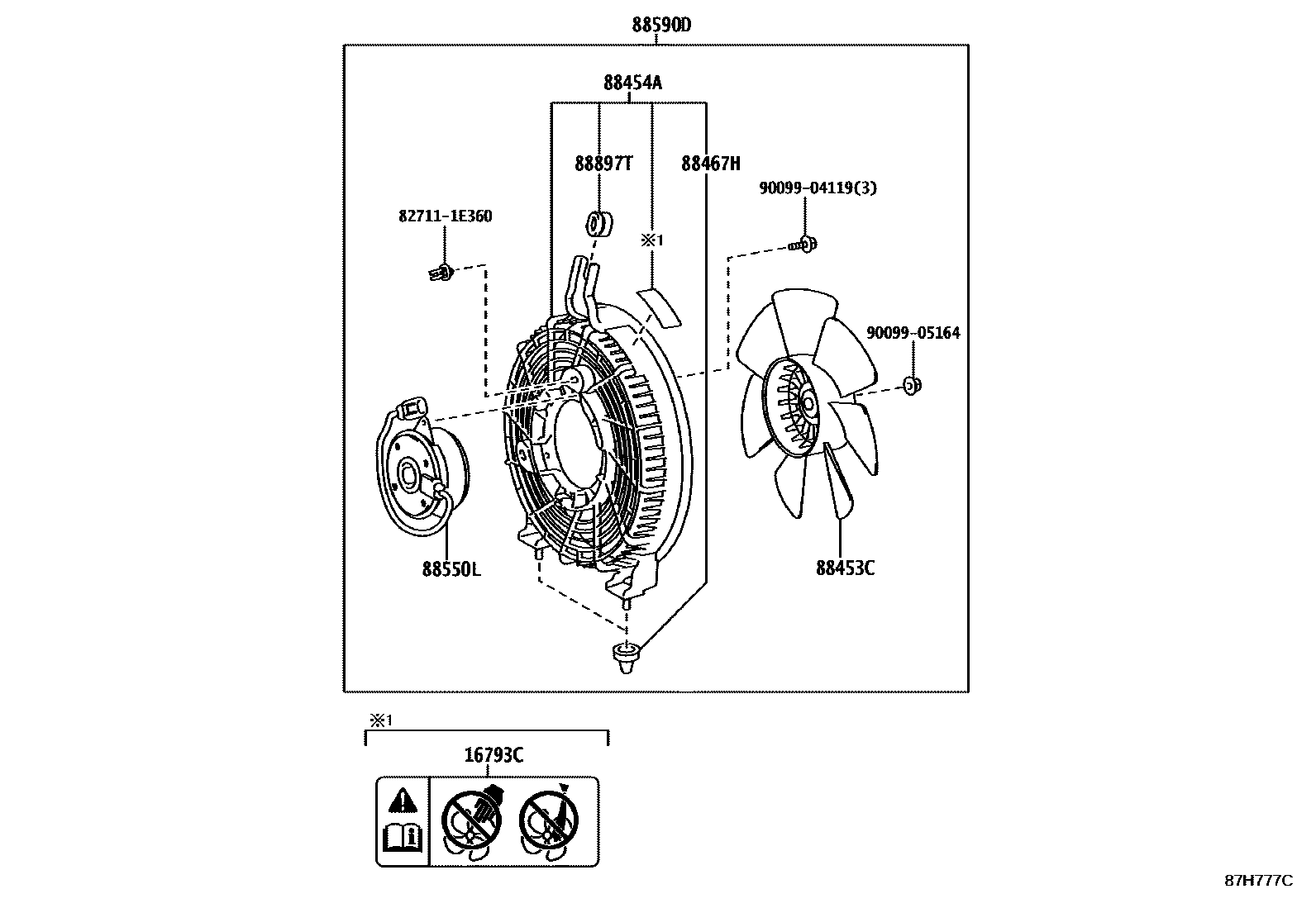

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER FAN 0002 1FRONT 0003 1REAR(1/2) 0004 1REAR(2/2)

16793CLABEL, COOLING FAN CAUTION

main16793-31070i1GDFTV..GDH303201912

88453CFAN, COOLING, NO.1

main88453-26030iGDH303201912

88454ASHROUD, FAN

main88454-26120iGDH303201912

88467HCUSHION, CONDENSER BRACKET, NO.1

main88467-20190×2iGDH303201912

88550LMOTOR ASSY, COOLING FAN, NO.1

main88550-26120iGDH303201912

88590DBLOWER ASSY, W/SHROUD, NO.1

main88590-26170iGDH303201912

88897TGROMMET, COOLER

main88897-26140iGDH303201912

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904119

main90099-04119

9009905164

main90099-05164

10 parts on this diagram · 4 diagrams in section
