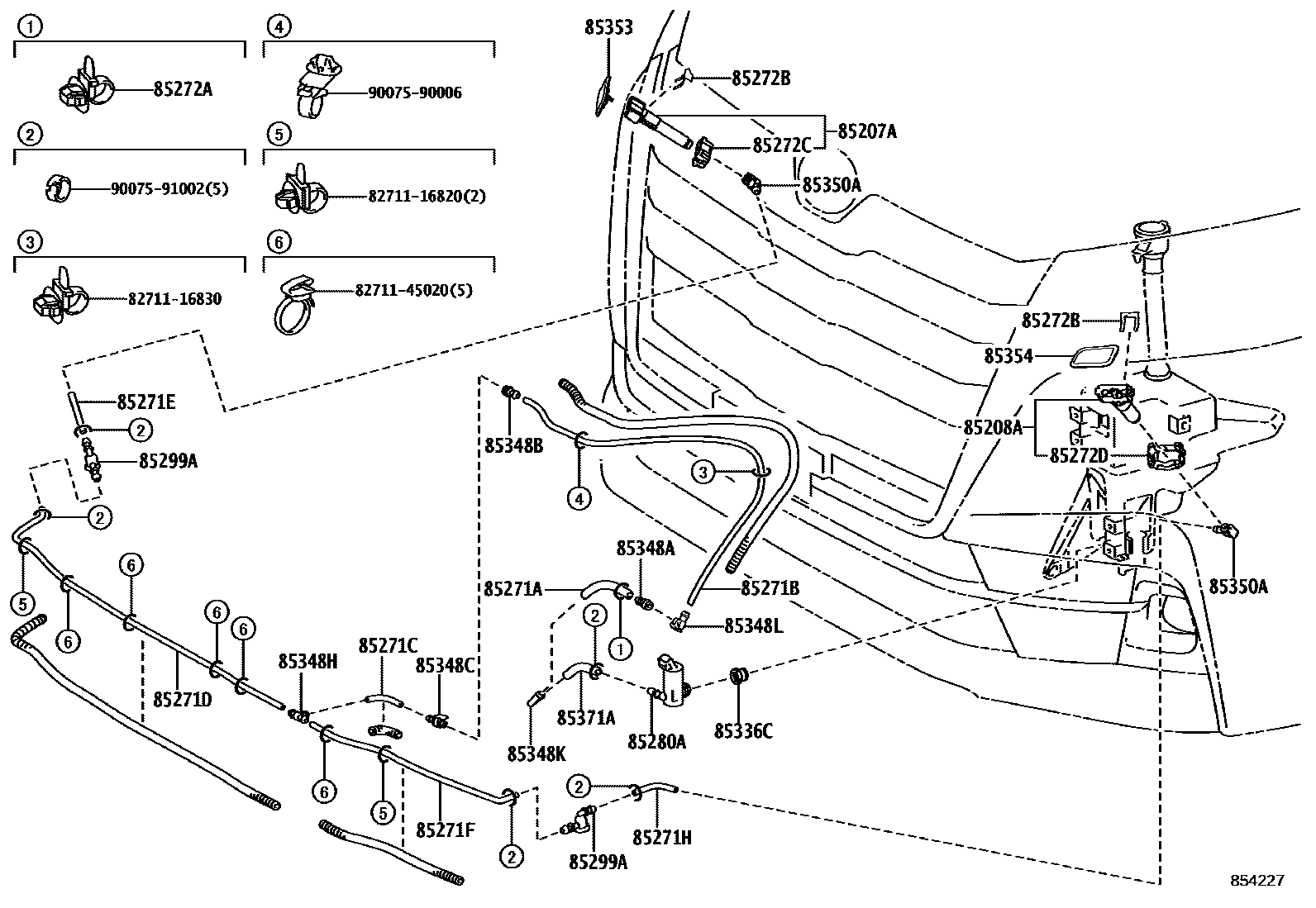

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85271DHOSE, HEADLAMP CLEANER, NO.5
85271EHOSE, HEADLAMP CLEANER, NO.6
85271FHOSE, HEADLAMP CLEANER, NO.7
85271HHOSE, HEADLAMP CLEANER, NO.8
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85272DCLAMP, HEADLAMP CLEANER, NO.4
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85299AVALVE ASSY, CHECK
85336CPACKING, HEADLAMP CLEANER MOTOR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85353COVER, HEADLAMP WASHER, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BEIGE ME.,2QD ,M74
85354COVER, HEADLAMP WASHER, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BEIGE ME.,2QD ,M74
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
9007590006
main90075-90006
9007591002
main90075-91002
31 parts on this diagram · 1 diagram in section
