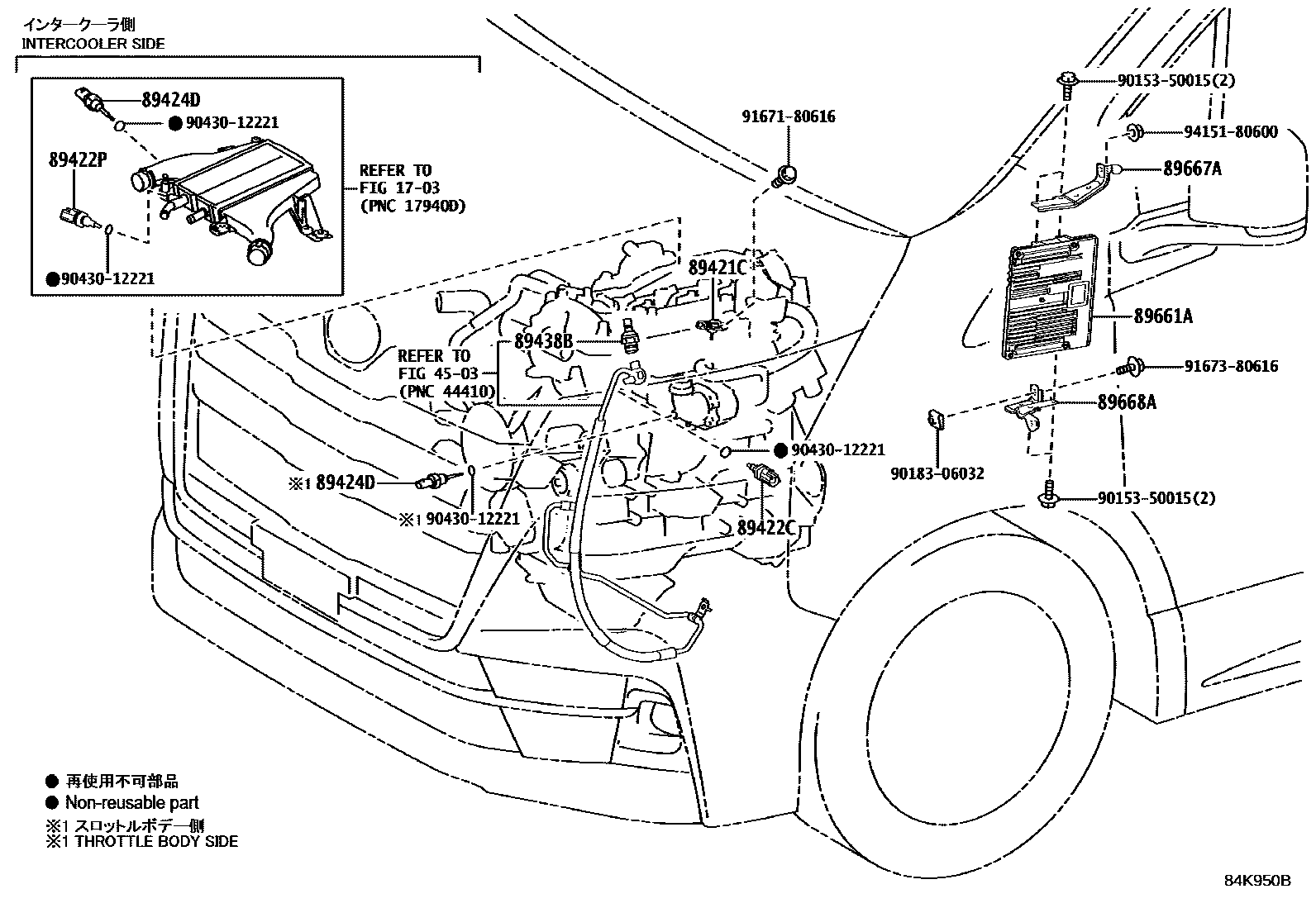

ELECTRONIC CONTROLED DIESEL (ECD)

1703AIR CLEANER

→ Go to FIG 17-03

4503POWER STEERING TUBE

→ Go to FIG 45-03

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030iGDH303201912-202505

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iGDH303201912-202505

89422PSENSOR, WATER TEMPERATURE

main89422-33030iGDH303201912-202505

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60020iGDH303201912-202506

89438BSWITCH, POWER STEERING OIL PRESSURE

main89438-71010iGDH303201912-202107

89661ACOMPUTER, ENGINE CONTROL

main89661-26Y50iGDH303201912-202107

main89661-2F250iGDH303202107-202406

main89661-2F640iGDH303202406-202506

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-26200iGDH303201912

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-26180iGDH303201912

9015350015

main90153-50015

9018306032

main90183-06032

9043012221

main90430-12221

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
