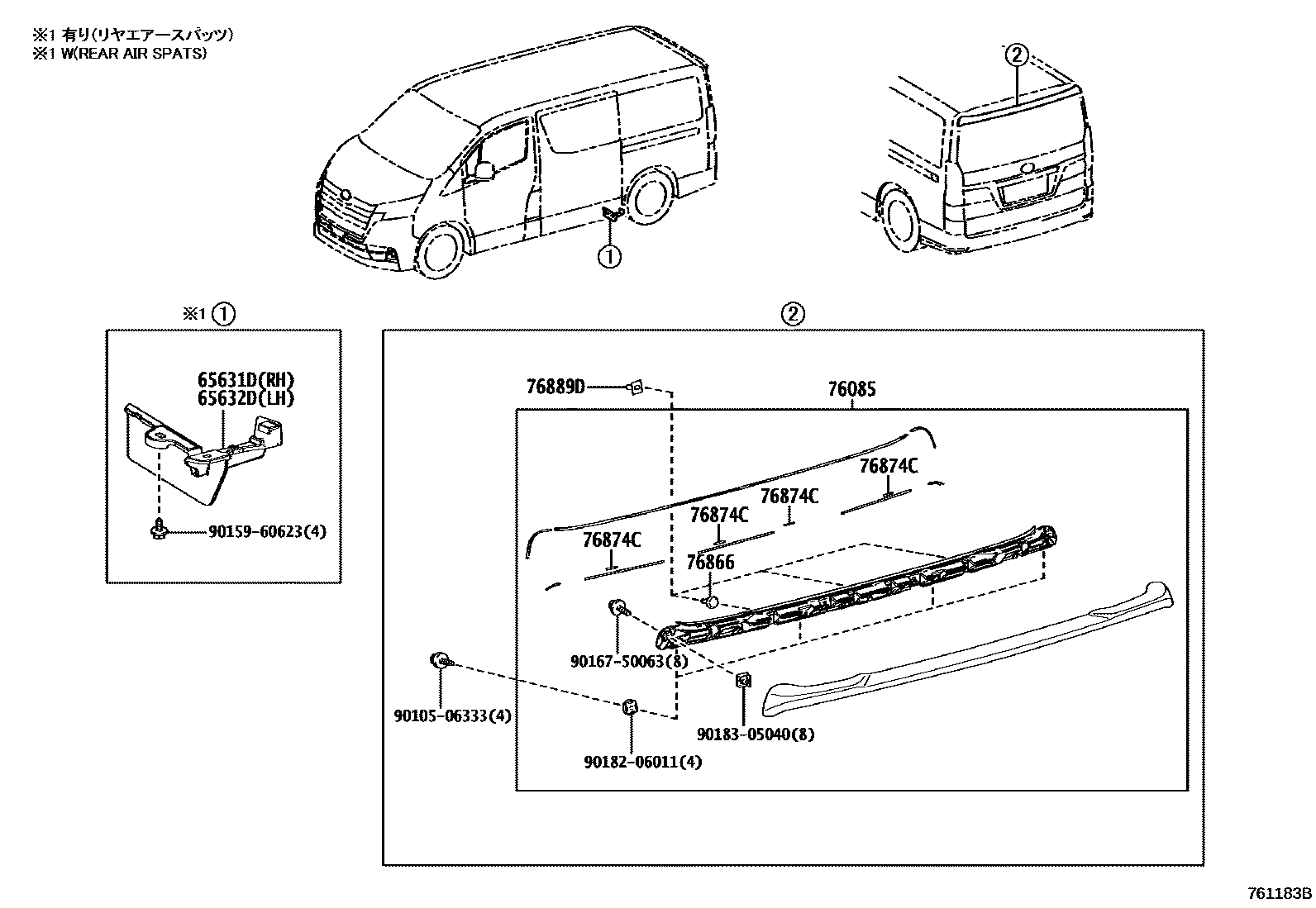

SPOILER & SIDE MUDGUARD

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-26020iGDH303201912-202506

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-26020iGDH303201912-202506

76085SPOILER SUB-ASSY, REAR

main76085-26070-A0iGDH303201912-202506

WHITE PEARL CS.,070 ,2QD

main76085-26070-B0iGDH303201912-202506

SILVER ME.,1F7

main76085-26070-B1iGDH303201912-202506

GRAY ME.,1G3

main76085-26070-C0iGDH303201912-202506

BLACK,202

76866RETAINER, REAR SPOILER, NO.2

main76866-48010×3iGDH303201912-202506

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-V3010×4iGDH303202003-202506

76889DCLIP, REAR SPOILER, NO.2

main76889-44020×3iGDH303201912-202506

9010506333

main90105-06333

9015960623

main90159-60623

9016750063

main90167-50063

9018206011

main90182-06011

9018305040

main90183-05040

11 parts on this diagram · 2 diagrams in section
