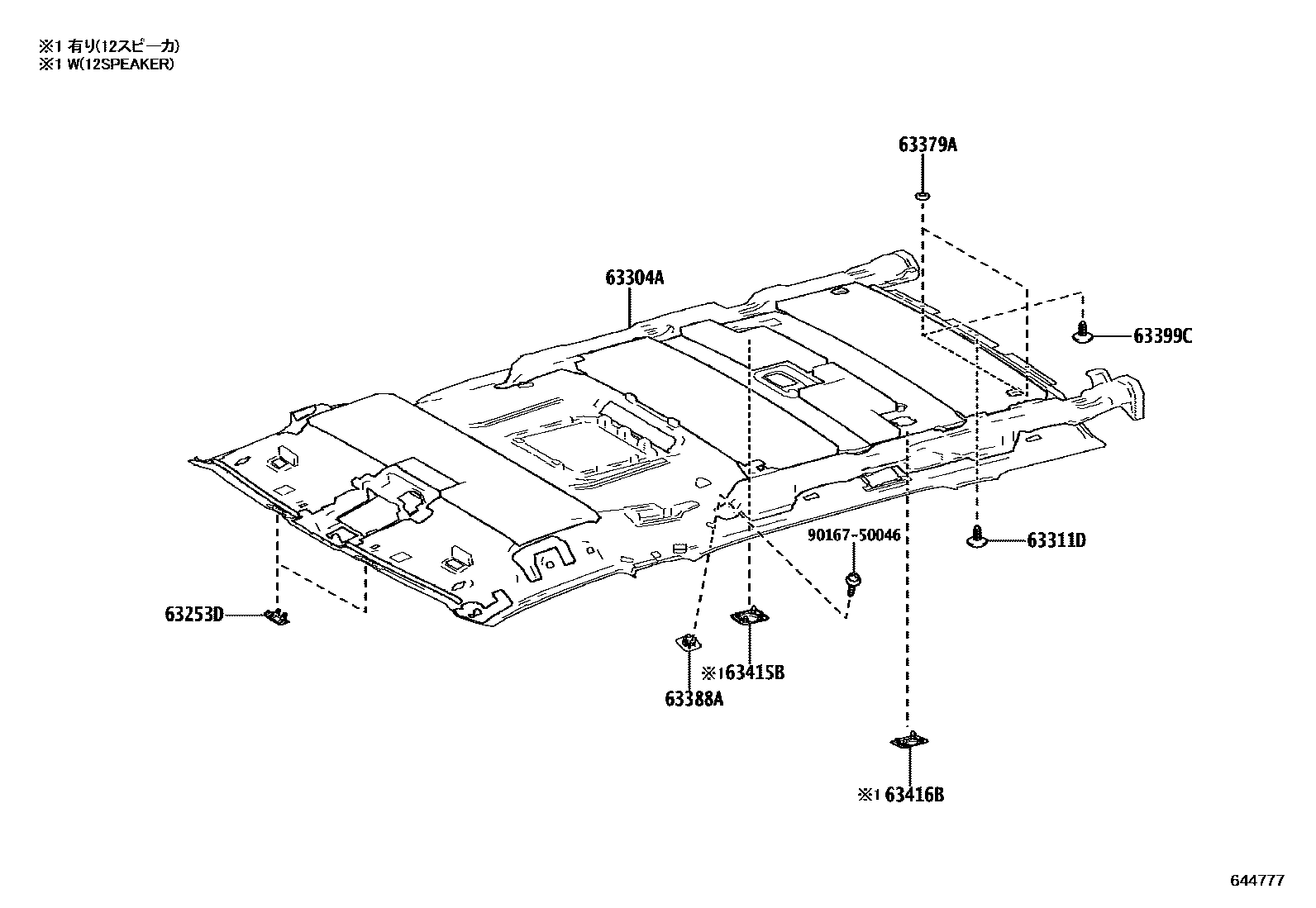

ROOF HEADLINING & SILENCER PAD

0001 1���� 0002 1��

63253DCOVER, ROOF ANTENNA BRACKET

main63253-26080-A0×2iGDH303..G; GDH303..PREM201912

FROMAGE,TRIM2#; FROMAGE,TRIM21,22

main63253-26080-C0×2iGDH303..PREM201912

BLACK,TRIM23,24

63304ATRIM SUB-ASSY, ROOF HEADLINING, FRONT

main63304-26660-A0iGDH303..G201912

FROMAGE,TRIM2#

main63304-26670-A0iGDH303..PREM201912

FROMAGE,TRIM21,22

main63304-26670-C0iGDH303..PREM201912

BLACK,TRIM23,24

63311DCLIP(HEADLINING, ROOF, FRONT)

main63399-26050-A1iGDH303..G; GDH303..PREM201912

FROMAGE,TRIM2#; FROMAGE,TRIM21,22

main63399-26050-C1iGDH303..PREM201912

BLACK,TRIM23,24

63379AWASHER, ROOF HEADLINING SETTING

main63379-26010×2iGDH303201912

63388ACOVER, ROOF HEADLINING HOLDER

main63388-58040iGDH303..G201912-202107

main63388-58040-A1iGDH303..PREM201912

FROMAGE,TRIM21,22

main63388-58040-C0iGDH303..PREM201912

BLACK,TRIM23,24

63399CCLIP, ROOF HEADLINING

main63399-26050-A1×2iGDH303..G; GDH303..PREM201912

FROMAGE,TRIM2#; FROMAGE,TRIM21,22

main63399-26050-C1×2iGDH303..PREM201912

BLACK,TRIM23,24

63415BGRILLE, ROOF SPEAKER, RH

main63415-26120-A0iGDH303..G201912

FROMAGE,TRIM2#

main63415-26140-A1iGDH303..PREM201912

WHITE,TRIM21,22

main63415-26140-C1iGDH303..PREM201912

BLACK,TRIM23,24

63416BGRILLE, ROOF SPEAKER, LH

main63415-26120-A0iGDH303..G201912

FROMAGE,TRIM2#

main63415-26140-A1iGDH303..PREM201912

WHITE,TRIM21,22

main63415-26140-C1iGDH303..PREM201912

BLACK,TRIM23,24

9016750046

main90167-50046

9 parts on this diagram · 2 diagrams in section
