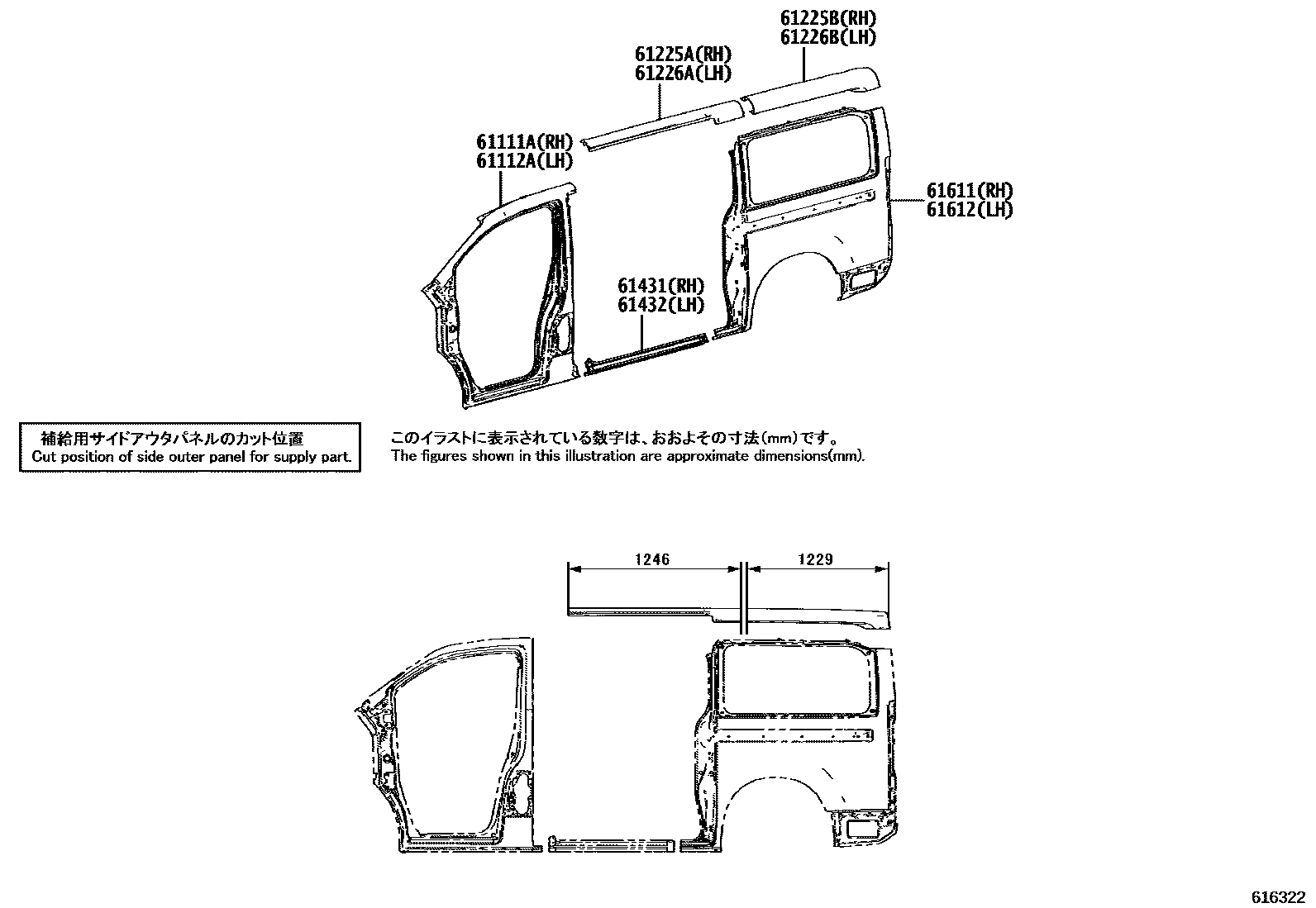

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH 0004 1�������,RH 0005 1�������,LH 0006 1��������&�����

61111APANEL, FRONT SIDE, OUTER RH

main61111-26470iGDH303201912-202506

61112APANEL, FRONT SIDE, OUTER LH

main61112-26490iGDH303201912-202506

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-26080iGDH303201912-202506

61225BRAIL, ROOF SIDE OUTER UPPER NO.2, RH

main61225-26090iGDH303201912-202506

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-26080iGDH303201912-202506

61226BRAIL, ROOF SIDE OUTER UPPER NO.2, LH

main61226-26090iGDH303201912-202506

61431PANEL, ROCKER, OUTER REAR RH

main61431-26020iGDH303201912-202506

61432PANEL, ROCKER, OUTER REAR LH

main61432-26020iGDH303201912-202506

61611PANEL, QUARTER, RH

main61611-26640iGDH303201912-202312

main61611-V3080iGDH303202401-202506

61612PANEL, QUARTER, LH

main61612-26720iGDH303201912-202312

main61612-V3090iGDH303202401-202506

10 parts on this diagram · 6 diagrams in section
