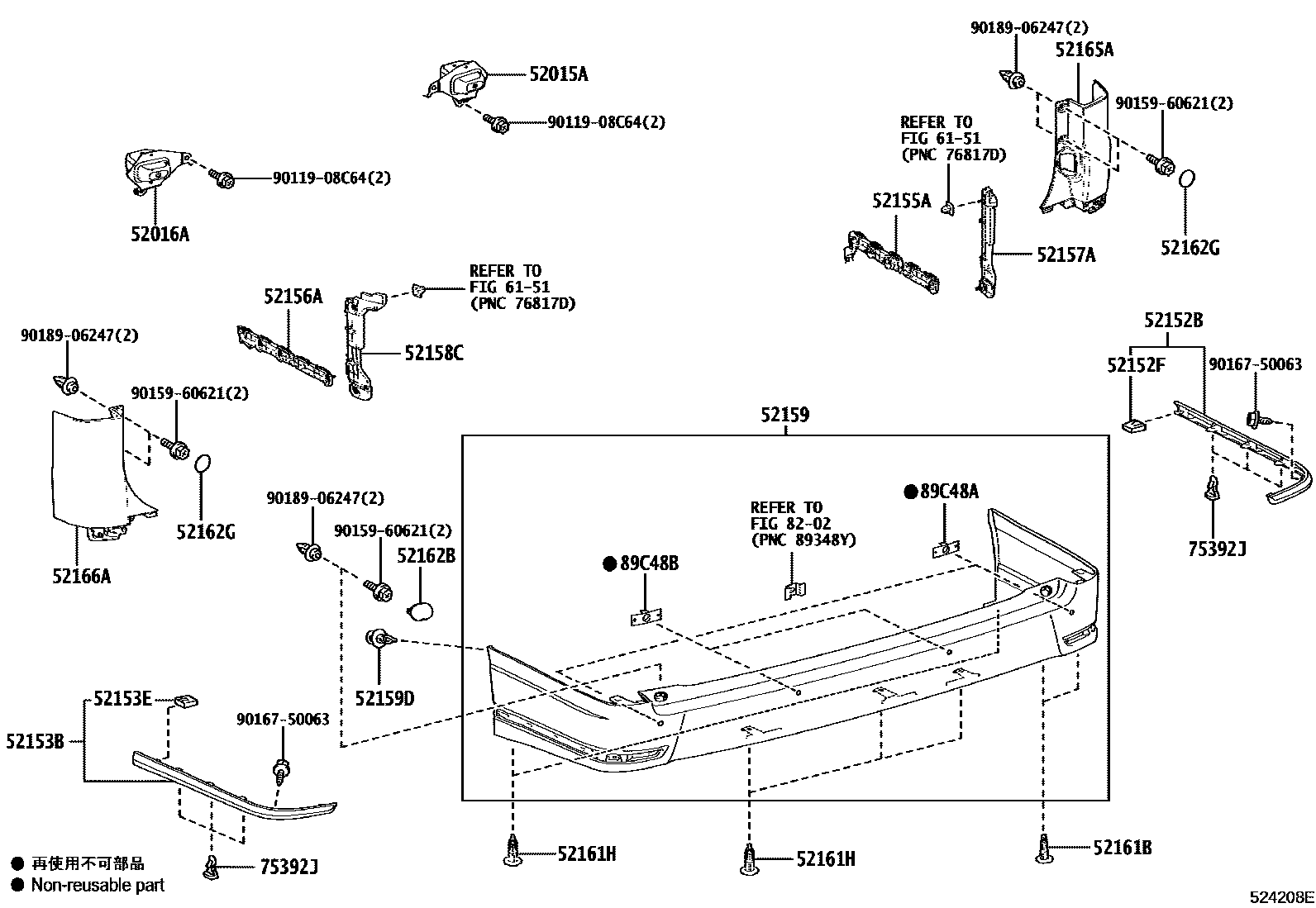

REAR BUMPER & BUMPER STAY

0001 1TYPE A 0002 1TYPE B

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-26010iGDH303201912-202506

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-26010iGDH303201912-202506

52152BEXTENSION, REAR BUMPER, RH

main52152-26010iGDH303201912-202506

52152FCLIP, REAR BUMPER EXTENSION

main90467-08229×2iGDH303201912-202506

52153BEXTENSION, REAR BUMPER, LH

main52153-26010iGDH303201912-202506

52153ECLIP, REAR BUMPER EXTENSION

main90467-08229×2iGDH303201912-202506

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-26160iGDH303201912-202506

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-26020iGDH303201912-202506

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-26030iGDH303201912-202506

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-26030iGDH303201912-202506

52159COVER, REAR BUMPER

main52159-26959-A0iGDH303201912-202201

main52159-26959-B0iGDH303201912-202201

main52159-26959-B1iGDH303201912-202201

main52159-26959-C0iGDH303201912-202201

main52159-26959-E0iGDH303201912-202201

main52159-26969-A1iGDH303202201-202506

main52159-26969-B1iGDH303202201-202506

main52159-26969-B2iGDH303202201-202506

main52159-26969-C2iGDH303202201-202506

main52159-26969-E0iGDH303202201-202506

main52159-26952iGDH303201912-202107

52159DCLIP, REAR BUMPER COVER

main90467-05170×2iGDH303201912-202506

52161BPIECE, REAR BUMPER

main52161-16010×2iGDH303201912-202506

52161HPIECE, REAR BUMPER

main52161-16010×5iGDH303201912-202506

52162BPLATE, REAR BUMPER, NO.1

main52162-26050-A0×2iGDH303201912-202506

WHITE PEARL CS.,070

main52162-26050-B0×2iGDH303201912-202506

SILVER ME.,1F7

main52162-26050-B1×2iGDH303201912-202506

GRAY ME.,1G3

main52162-26050-C0×2iGDH303201912-202506

BLACK,202

main52162-26050-E0×2iGDH303201912-202506

BEIGE ME.,2QD

main52162-26903×4iGDH303201912-202107

52162GPLATE, REAR BUMPER, NO.1

main52162-26020-A1×4iGDH303201912-202506

WHITE PEARL CS.,070 ,2QD

main52162-26020-B1×4iGDH303201912-202506

SILVER ME.,1F7

main52162-26020-B2×4iGDH303201912-202506

GRAY ME.,1G3

main52162-26020-C0×4iGDH303201912-202506

BLACK,202

main52162-26901×4iGDH303201912-202107

52165ACOVER, REAR BUMPER, UPR RH

main52165-26080-A0iGDH303201912-202506

WHITE PEARL CS.,070 ,2QD

main52165-26080-B0iGDH303201912-202506

SILVER ME.,1F7

main52165-26080-B1iGDH303201912-202506

GRAY ME.,1G3

main52165-26080-C0iGDH303201912-202506

BLACK,202

main52165-26911iGDH303201912-202107

52166ACOVER, REAR BUMPER, UPR LH

main52166-26080-A0iGDH303201912-202506

WHITE PEARL CS.,070 ,2QD

main52166-26080-B0iGDH303201912-202506

SILVER ME.,1F7

main52166-26080-B1iGDH303201912-202506

GRAY ME.,1G3

main52166-26080-C0iGDH303201912-202506

BLACK,202

main52166-26911iGDH303201912-202107

6151SIDE MEMBER

→ Go to FIG 61-51

75392JRETAINER, OUTSIDE MOULDING

main75392-35200×6iGDH303201912-202506

8202WIRING & CLAMP

→ Go to FIG 82-02

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-26060-A0supersedes 89348-26070-A0iGDH303201912-202012

main89348-26060-B0supersedes 89348-26070-B0iGDH303201912-202012

main89348-26060-B1supersedes 89348-26070-B1iGDH303201912-202012

main89348-26060-C0supersedes 89348-26070-C0iGDH303201912-202012

main89348-26060-E0supersedes 89348-26070-E0iGDH303201912-202012

main89348-78020×2iGDH303201912-202107

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-12170-A1×2iGDH303201912-202012

main89348-12170-B0×2iGDH303201912-202012

main89348-12170-B4×2iGDH303201912-202012

main89348-12170-C5×2iGDH303201912-202012

main89348-12170-E3×2iGDH303201912-202012

main89348-78020×2iGDH303201912-202107

9011908C64

main90119-08C64

9015960621

main90159-60621

9016750063

main90167-50063

9018906247

main90189-06247
