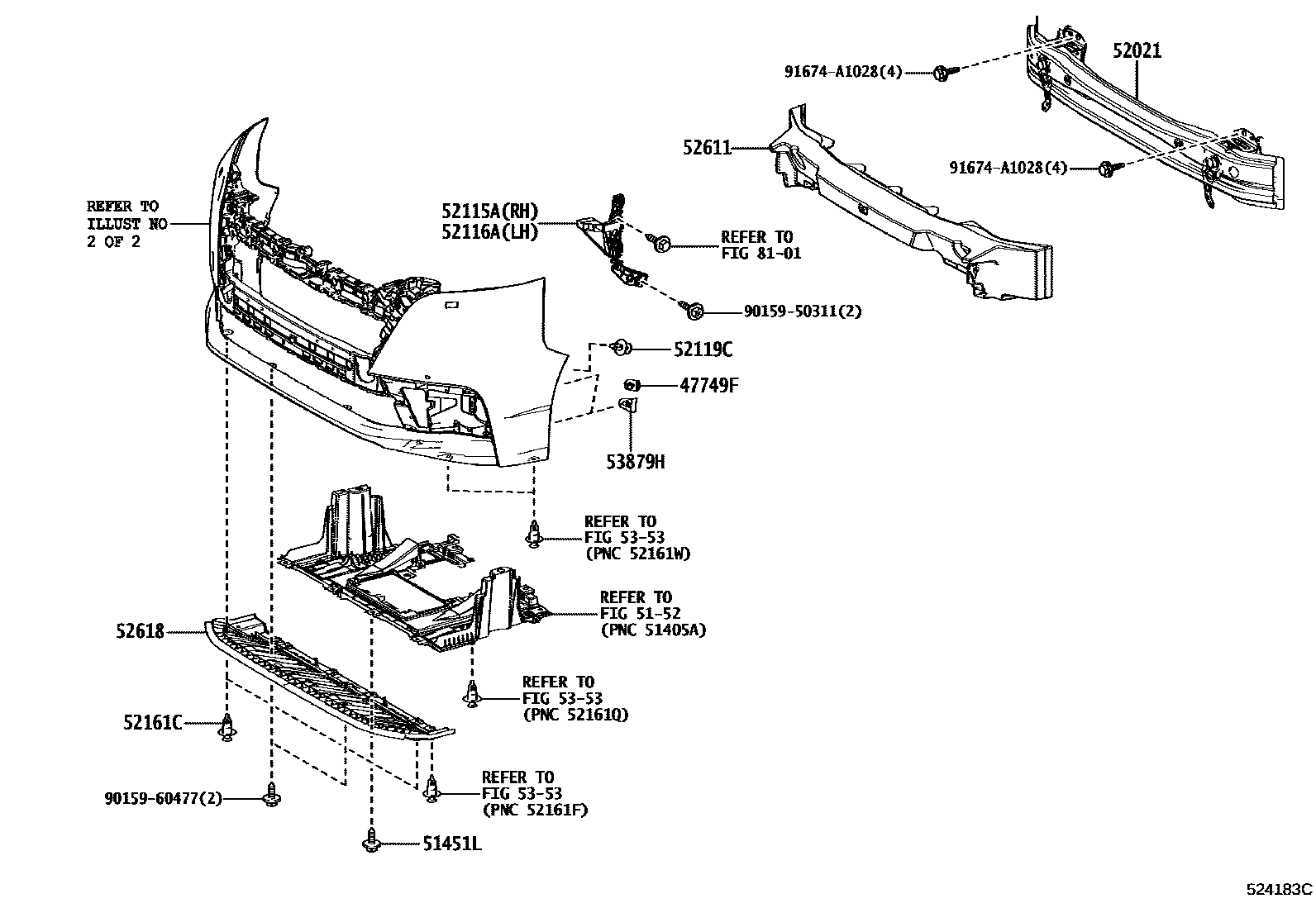

FRONT BUMPER & BUMPER STAY

0001 1 0002 1��(������������������) 0003 1��(������&�������)

47749FCLIP, PIN HOLD

main47749-33030×4iGDH303201912-202506

51451LBOLT, NO.1

main90119-06A13×4iGDH303201912-202506

main90119-T0556×4iGDH303201912-202506

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-26020iGDH303201912-202506

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26190iGDH303201912-202506

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-26190iGDH303201912-202506

52119CCLIP, FRONT BUMPER COVER

main90467-05170×2iGDH303201912-202506

52161CPIECE, FRONT BUMPER

main52161-16010×2iGDH303201912-202506

52611ABSORBER, FRONT BUMPER ENERGY

main52611-26020iGDH303201912-202506

52618ABSORBER, FRONT BUMPER, LOWER

main52618-26010iGDH303201912-202506

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53879HRETAINER, FRONT FENDER LINER

main53879-33030×4iGDH303201912-202506

8101HEADLAMP

→ Go to FIG 81-01

9015950311

main90159-50311

9015960477

main90159-60477

91674A1028

main91674-A1028

16 parts on this diagram · 3 diagrams in section
