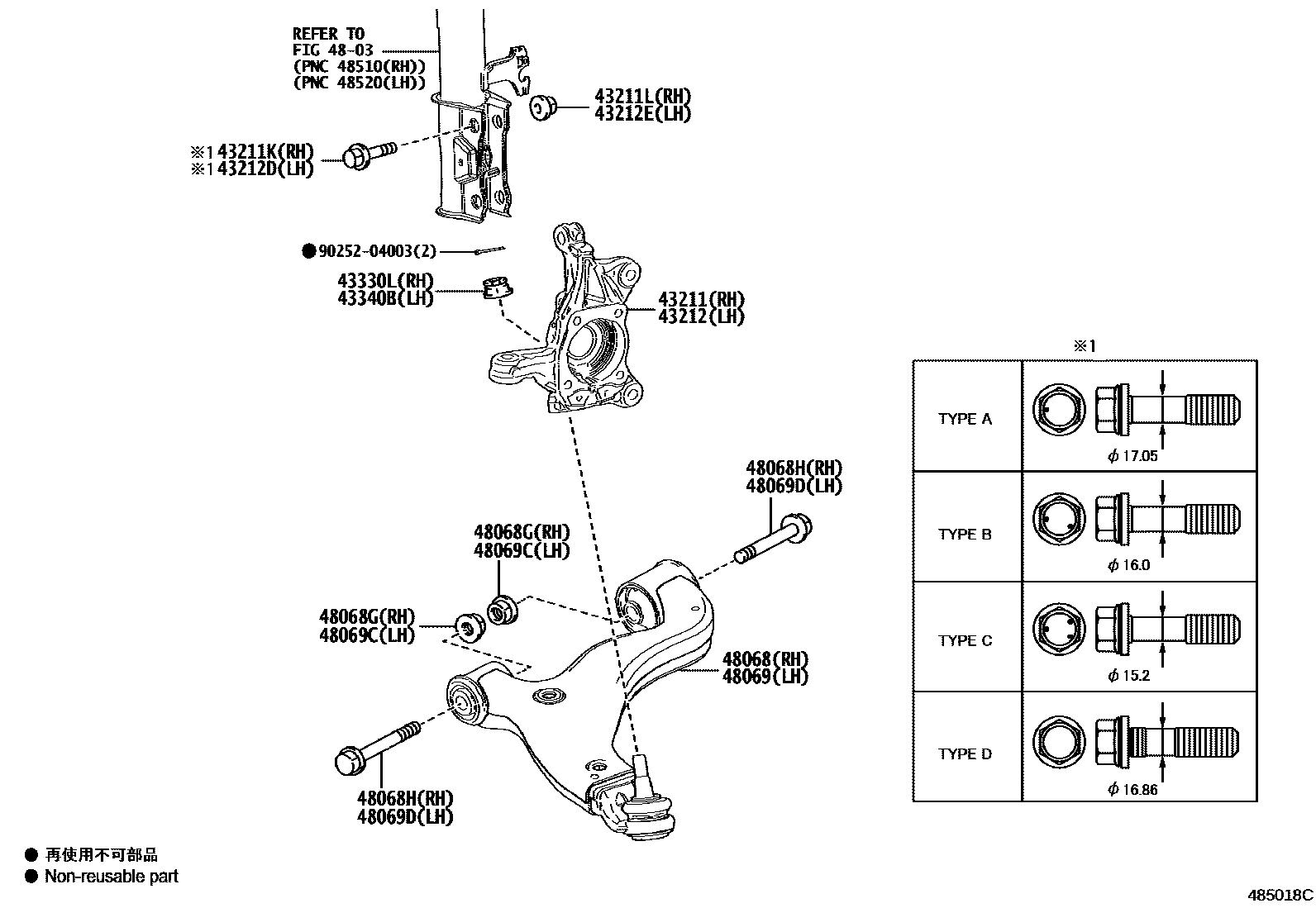

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-26170iGDH303201912-202506

43211KBOLT (FOR STEERING KNUCKLE RH)

main90119-18010iGDH303201912-202506

main90119-18011iGDH303201912-202506

main90119-18012iGDH303201912-202506

main90119-18013iGDH303201912-202506

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-18003iGDH303201912-202506

43212KNUCKLE, STEERING, LH

main43212-26140iGDH303201912-202506

43212DBOLT (FOR STEERING KNUCKLE LH)

main90119-18010iGDH303201912-202506

main90119-18011iGDH303201912-202506

main90119-18012iGDH303201912-202506

main90119-18013iGDH303201912-202506

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-18003iGDH303201912-202506

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16008iGDH303201912-202506

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16008iGDH303201912-202506

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26180iGDH303201912-202506

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-18003iGDH303201912-202506

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-18009iGDH303201912-202506

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26180iGDH303201912-202506

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-18003iGDH303201912-202506

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-18009iGDH303201912-202506

9025204003

main90252-04003

16 parts on this diagram · 1 diagram in section
