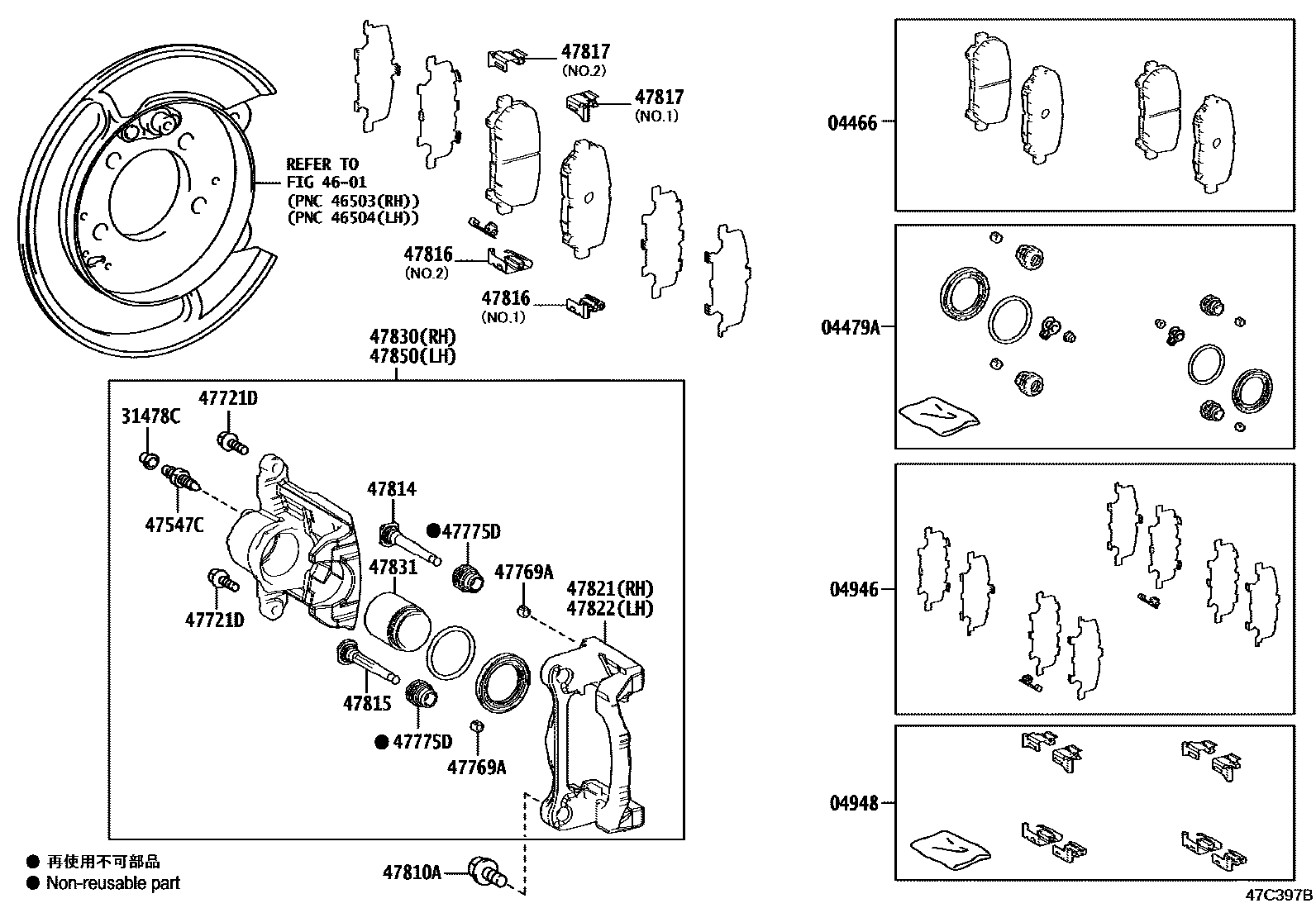

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-26030iGDH303201912-202506

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-26100iGDH303201912-202506

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-26000iGDH303201912-202506

04948FITTING KIT, DISC BRAKE, REAR

main04948-26020iGDH303201912-202506

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGDH303201912-202506

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12130×2iGDH303201912-202506

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08346×4iGDH303201912-202506

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28570×4iGDH303201912-202506

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-48010×4iGDH303201912-202506

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-14181×4iGDH303201912-202506

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-26030×2iGDH303201912-202506

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-26030×2iGDH303201912-202506

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-26030×2iGDH303201912-202506

main47816-26031×2iGDH303201912-202506

47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)

main47817-26030×2iGDH303201912-202506

main47817-26031×2iGDH303201912-202506

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-26030iGDH303201912-202506

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-26030iGDH303201912-202506

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-26030iGDH303201912-202506

47831PISTON, REAR DISC BRAKE

main47831-26030×2iGDH303201912-202506

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-26030iGDH303201912-202506

20 parts on this diagram · 1 diagram in section
