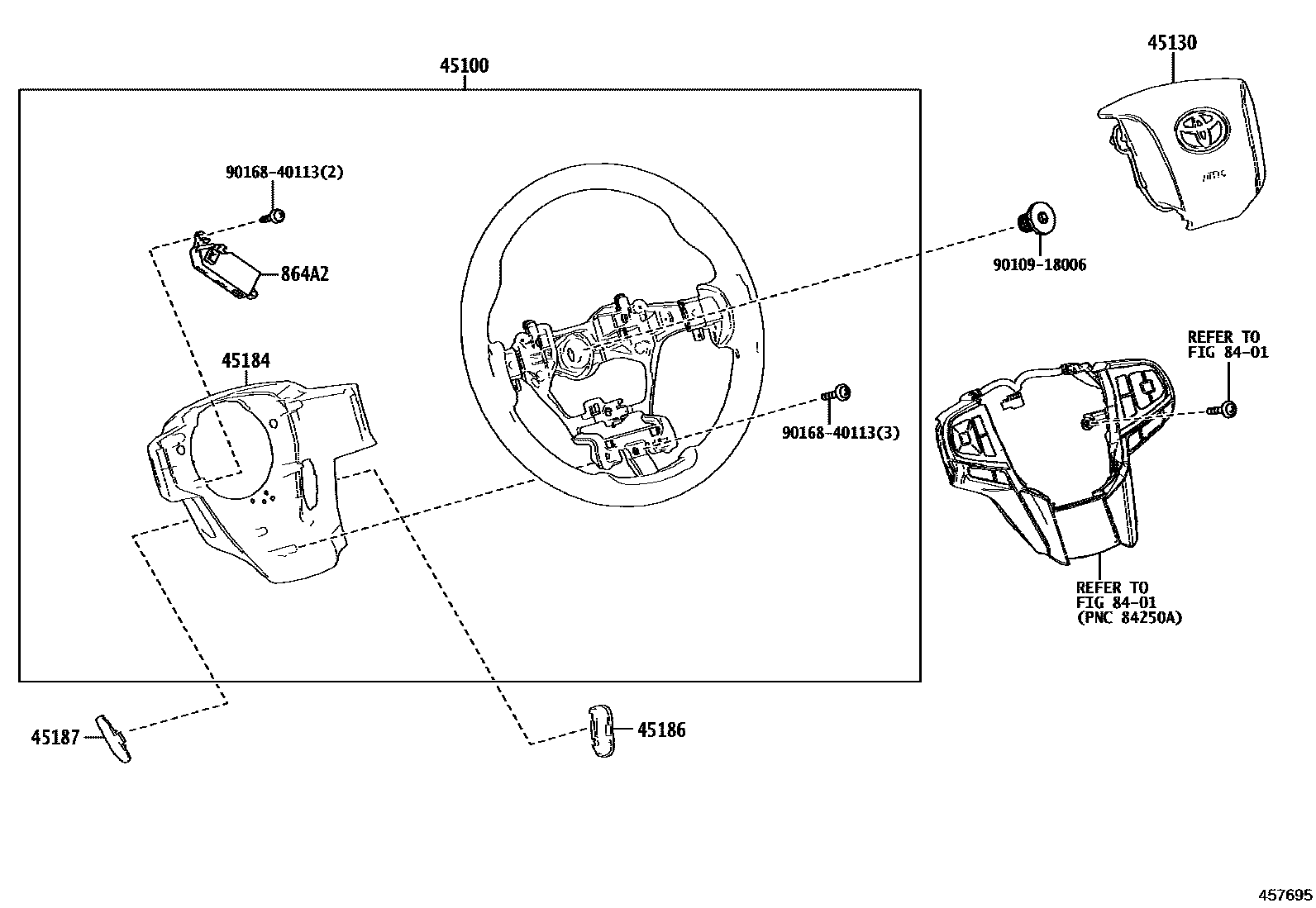

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-26400-C1iGDH303201912-202506

45130BUTTON ASSY, HORN

main45130-26420-C0iGDH303201912-202506

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-26160-C0iGDH303201912-202506

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-26020-C0iGDH303201912-202506

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-26010-C0iGDH303201912-202506

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A2COMPUTER, STEERING VIBRATION

main864A2-48011iGDH303201912-202506

9010918006

main90109-18006

9016840113

main90168-40113

9 parts on this diagram · 1 diagram in section
