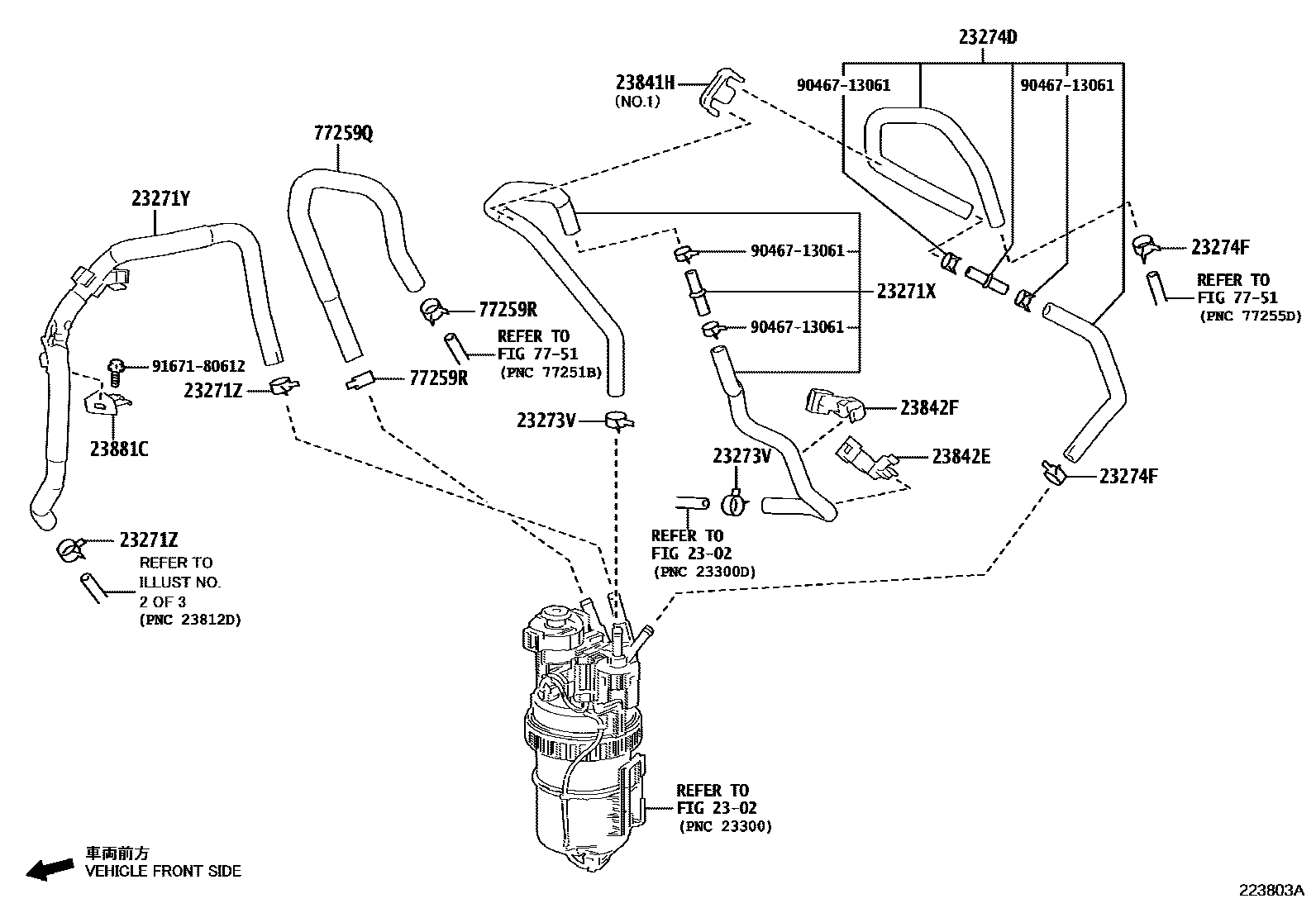

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

2302FUEL FILTER

→ Go to FIG 23-02

23271XHOSE, FUEL, NO.2

main23273-11070i1GDFTV..GDH303201912

23271YHOSE, FUEL

main23271-11410i1GDFTV..GDH303201912

23271ZCLIP, HOSE

main96133-41501×2i1GDFTV..GDH303201912

23273VCLIP(FOR FUEL HOSE NO.2)

main90466-13005×2i1GDFTV..GDH303201912

23274DHOSE, FUEL, NO.3

main23274-11020i1GDFTV..GDH303201912

23274FCLIP(FOR FUEL HOSE NO.3)

main90466-13005×2i1GDFTV..GDH303201912

23841HCLAMP, FUEL HOSE

main23841-11050×2i1GDFTV..GDH303201912

main23841-11080i1GDFTV..GDH303201912

23842ECLAMP, FUEL PIPE, NO.1

main23842-11040i1GDFTV..GDH303201912

23842FCLAMP, FUEL PIPE, NO.2

main23842-11050i1GDFTV..GDH303201912

23881CBRACKET, FUEL HOSE

main23881-11010i1GDFTV..GDH303201912

77259QHOSE, FUEL

main77259-26200iGDH303201912

77259RCLIP, HOSE

main96133-41501×2iGDH303201912

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9046713061

main90467-13061

9167180612

main91671-80612

16 parts on this diagram · 3 diagrams in section
