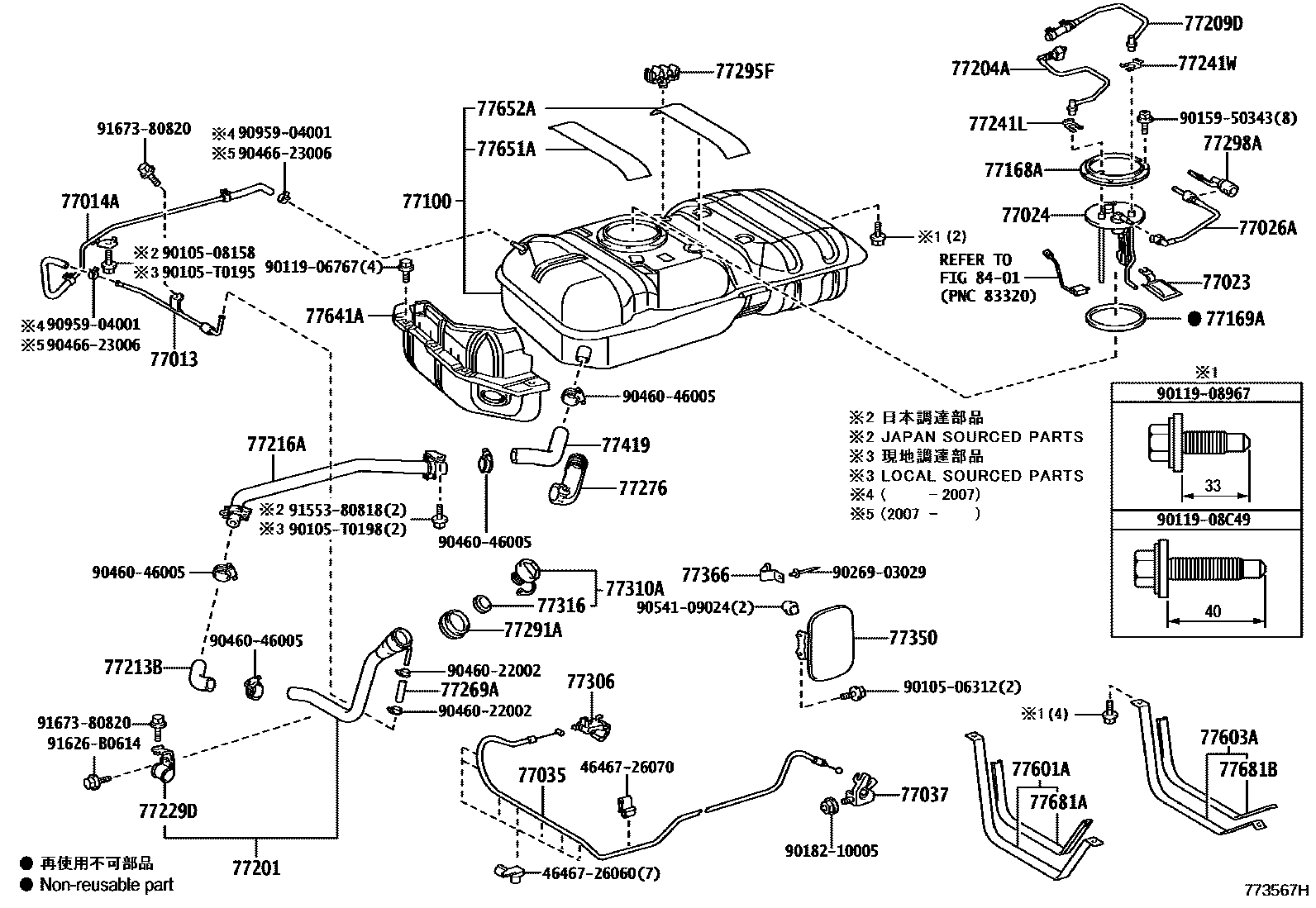

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ��� 0005 1����� ����� 0006 1����� �����

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-26120iTRH200..5F;GDH201,223..IV5201312-202312

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-26050iKDH20#,211,22#,TRH200,21#,22#201312-201412

main77014-26060iGDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);KDH20#,223,TRH224..02S,03S,05S,06S,09S,14S;GDH206,211,22#,KDH2201501-202312

main77014-V3010iTRH200,21#,22#..6FC202204-202210

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-60040iGDH201,223..IV5201312-202312

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-26020iGDH201,223..IV5201312-202312

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-26070iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201312-202312

main77026-26080iKDH20#,223;GDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);GDH206,211,22#,KDH211,221..(02S,05S,06S,09S,14S)..(201312-202312

main77026-V3010iTRH200,21#,22#..6FC202204-202302

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-26130iTRH200..5F;GDH201..IV5201312-202312

main77035-26150iGDH223..IV5201312-202107

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95D01iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

77100TANK ASSY, FUEL

main77001-26692iTRH200,21#,22#201312-201905

main77001-26693iTRH200..5F201906-202203

main77001-26701iGDH20#,211,22#,KDH20#,211,22#201312-201905

main77001-26702iGDH206;GDH201,211,22#..CBU,IV6201906-202203

main77001-V3010iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202204-202312

main77001-V3020iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iTRH200..5F;GDH201,223..IV5201312-202312

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iGDH201,223..IV5201312-202312

main77169-53010iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU201312-202312

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26240iTRH200,21#,22#201312-201712

main77201-26250iKDH20#,211,22#201312-201711

main77201-26350iTRH200..5F201712-202204

main77201-26360iGDH201,223..IV5201712-202204

main77201-V3020iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU202204-202312

main77201-V3030iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

77204ATUBE, FUEL TANK RETURN

main77204-26040iTRH200..5F201312-202203

main77204-26050iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201312-202312

main77204-V3010iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU202204-202312

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-26140iTRH200..5F201312-202203

main77209-26150iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201312-202312

main77209-V3010iTRH200,21#,22#..6FC202204-202302

main77209-V3020iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202302-202312

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-26120iKDH20#,211,22#,TRH200,21#,22#201312-201501

main77213-26140iTRH200..5F;GDH201,223..IV5201501-202312

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-26010iTRH200..5F;GDH201,223..IV5201312-202312

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-26020iTRH200..5F;GDH201,223..IV5201312-202312

77241LTUBE, FUEL TANK SUCTION

main77241-35450iGDH201,223..IV5201312-202312

77241WCLIP, TUBE JOINT

main77241-33011iGDH201,223..IV5201312-202312

77269AHOSE, FUEL TANK BREATHER

main77269-26010iKDH20#,211,22#,TRH200,21#,22#201312-201501

main95312-13010iTRH200,21#,22#..6FC202204-202210

main95313-13010iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201501-202312

77276PROTECTOR, FUEL HOSE

main77276-26090iTRH200..5F;GDH201,223..IV5201312-202203

main77276-V3010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202204-202312

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-26021iTRH200..5F;GDH201,223..IV5201312-202312

77295FGROMMET, FUEL HOSE

main77295-26050iTRH200..5F;GDH201,223..IV5201312-202312

main77295-V3010iTRH200,21#,22#..6FC202204-202302

77298ACLAMP, FUEL TUBE, NO.4

main77298-52030iGDH201,223..IV5201312-202312

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28050-B1iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

MD.GRAY,TRIM1#

77310ACAP ASSY, FUEL TANK

main77300-12020iTRH200..5F201712-202312

main77300-12030iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201712-202312

main77300-20020iKDH20#,211,22#201312-201711

main77300-52030iTRH200,21#,22#201312-201712

77316GASKET, FUEL TANK CAP

main77316-52040iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

77350LID ASSY, FUEL FILLER OPENING

main77350-26030iTRH200..5F;GDH201,223..IV5201312-202312

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-26011iTRH200..5F;GDH201,223..IV5201312-202312

77419HOSE, FUEL, NO.3

main77419-26010iTRH200..5F;GDH201,223..IV5201312-202204

main77419-V3010iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202204-202312

main77419-V3020iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26100iKDH20#,211,22#,TRH200,21#,22#201312-201409

main77601-26101iTRH200..5F;GDH201,223..IV5201410-202312

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-26020iKDH20#,211,TRH200,21#201312-201409

main77602-26021iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201410-202312

main77602-26030iKDH22#,TRH22#201312-201409

main77602-26031iKDH223,TRH223,224,228;GDH22#,KDH221,TRH221,226,229..CBU,IV6,IV7201410-202107

77641APROTECTOR, FUEL TANK, NO.1

main77641-26040iTRH200..5F;GDH201,223..IV5201312-202312

77651ACUSHION, FUEL TANK, NO.1

main77651-26080iTRH200..5F;GDH201,223..IV5201312-202312

77652ACUSHION, FUEL TANK, NO.2

main77652-26070iTRH200..5F;GDH201,223..IV5201312-202312

77681ASEAT, FUEL TANK BAND

main77681-32060iTRH200..5F;GDH201,223..IV5201312-202312

77681BSEAT, FUEL TANK BAND

main77616-36010iGDH223..IV5201312-202107

main77681-34030iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4646726060CLAMP, CABLE

main46467-26060

4646726070CLAMP, CABLE

main46467-26070

9010506312

main90105-06312

9010508158

main90105-08158

90105T0195

main90105-T0195

90105T0198

main90105-T0198

9011906767

main90119-06767

9011908967

main90119-08967

9011908C49

main90119-08C49

9015950343

main90159-50343

9018210005

main90182-10005

9026903029

main90269-03029

9046022002

main90460-22002

9046046005

main90460-46005

9046623006

main90466-23006

9054109024

main90541-09024

9095904001

main90959-04001

9155380818

main91553-80818

91626B0614

main91626-B0614

9167380820

main91673-80820

57 parts on this diagram · 6 diagrams in section
